Aquaculture Feed Industry Processing Fish Shrimp Feed Float Machine

Customization:	Available
After-sales Service:	Life Time
Type:	Pellet Mill

Basic Specifications

Model NO.

DGP70

Processing Object

Mixed Feed

Technics

Crushing-before-Mixing

Equipment Type

Feed Hammer Mill

Pellet Mill Type

Screw Granulator

Bulking Machine

Single Screw Bulking Machine

Expanding Method

Dry Expansion

Warranty

1 Year

Capacity

200kg/H

Power

18.5kw

Certificate

CE

Output Size

0.9-10mm

Floating Time

> 24 Hours

Package Size

200cm * 110cm * 950cm

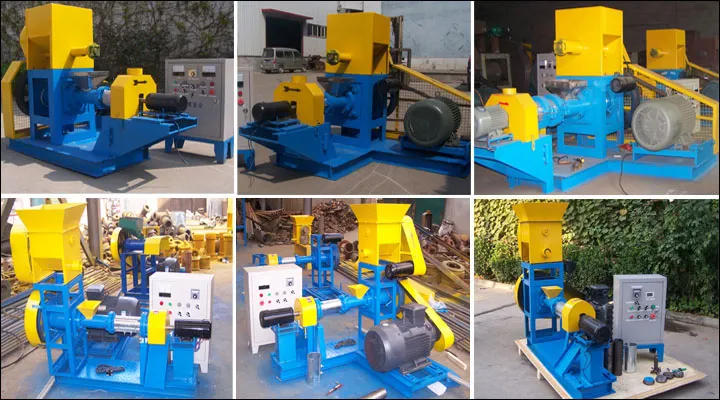

Fish & Shrimp Feed Float Machine

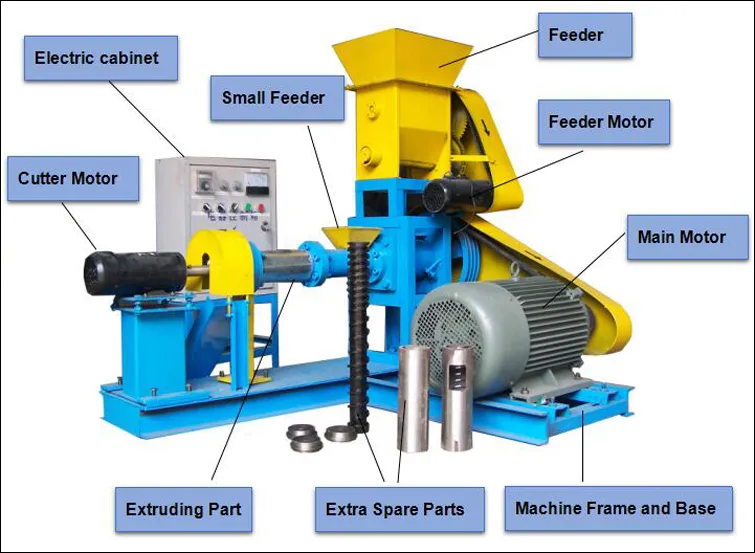

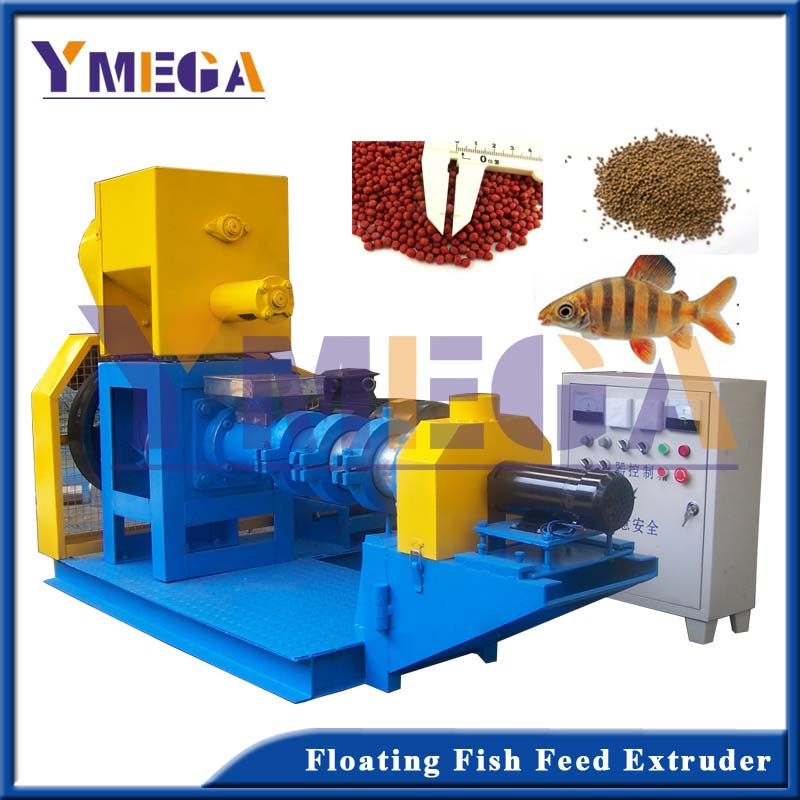

The floating fish feed pellet machine, also known as a fish feed extruder, is engineered to process various grains into high-grade aquatic feed pellets for fish, crab, catfish, and shrimps. It is highly suitable for small to medium aquatic farms or feed pellet processing factories.

Key Advantages

Cost Effective: Making your own feed pellets significantly reduces aquaculture costs compared to purchasing pre-made feed.

Nutritional Value: High temperature and pressure kill bacteria like Salmonella while retaining high nutrition and taste.

Adjustable Output: Pellet diameters and shapes can be customized by changing the die molds.

Superior Durability: Main parts are made of special heat-treated alloy material for long service life.

Easy Digestion: The puffing-type pellets are easier for aquatic species to digest.

Machine Specifications

Model	Capacity	Main Power	Screw Dia	Cutting Power
DGP50	60-80kg/h	11kw	φ50mm	0.4kw
DGP60	100-150kg/h	15kw	φ60mm	0.4kw
DGP70	180-250kg/h	18.5kw	φ70mm	0.4kw
DGP80	300-350kg/h	22kw	φ80mm	0.6kw
DGP90	400-450kg/h	37kw	φ90mm	1.5kw
DGP120	0.5-0.7t/h	55kw	φ120mm	2.2kw

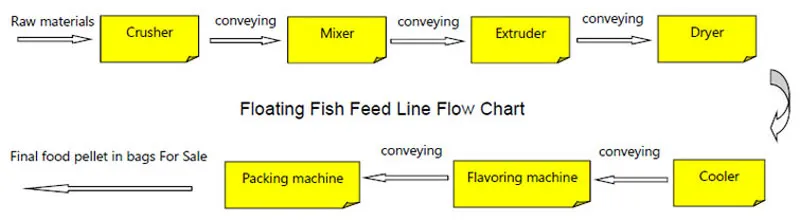

Complete Production Line Process

No.	Process	Machine	Description
1	Crushing	Hammer Mill	Crush raw materials into fine powder.
2	Mixing	Mixer	Blend different ingredients evenly.
3	Extruding	Fish Feed Extruder	Form pellets under high temperature/pressure.
4	Drying	Dryer	Reduce moisture in the pellets.
5	Cooling	Counterflow Cooler	Cool pellets for long-term storage.
6	Flavoring	Rotary Coater	Spray oil or additives for better taste.
7	Packaging	Auto Packer	Bagging for transportation and sale.

Support & Services

• Detailed equipment selection based on capacity requirements.
• Provision of comprehensive operating manuals and instructional videos.
• Custom design for full floating fish feed production lines.
• Assistance with floating and sinking feed formulation.

Frequently Asked Questions

How long do the pellets float on the water?

The pellets can float for more than 24 hours. The floating time can be further adjusted during the extrusion process.

What animals can this machine make feed for?

It is versatile and can produce feed pellets for fish, catfish, shrimp, prawns, crabs, cats, and dogs.

What pellet sizes are available?

We provide customized die moulds with diameters ranging from 0.9mm to 15mm.

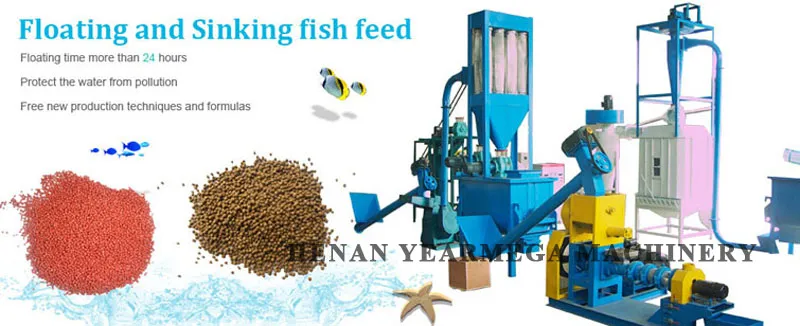

Do you provide full production lines?

Yes, we supply complete lines including hammer mills, mixers, extruders, dryers, coolers, and packing machines with capacities from 60kg/h to 5000kg/h.

Is there a formula provided for the feed?

Yes, we offer free professional formulations for various floating and sinking feed pellets to our customers.

What is the material of the wear parts?

Main components are crafted from special alloy materials subjected to professional heat treatment for high wear resistance.
