🏷️ Basic Information

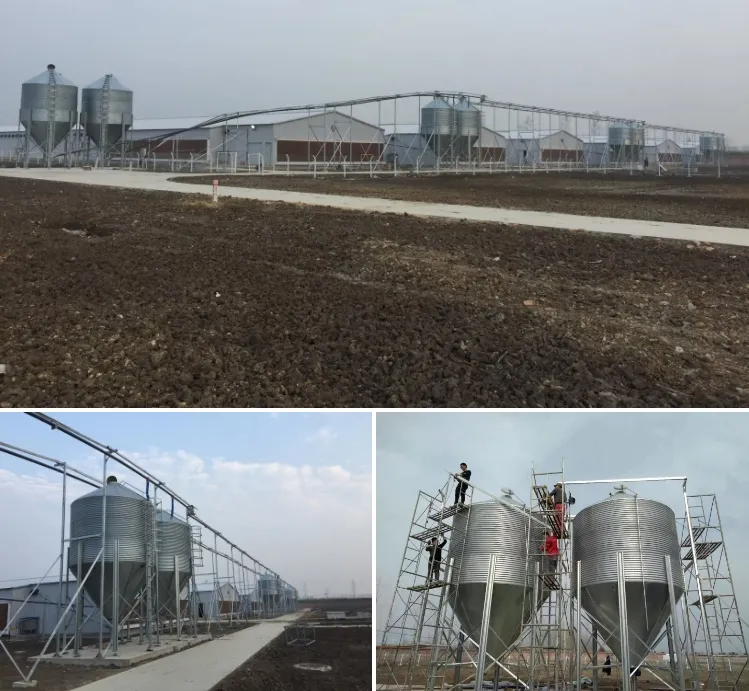

Installation
Ground Installation
Feeding Method
Top Loading
Feature
Ventilation, Moistureproof, Fixed, Fireproof, Anti-corrosion
Product Name
Feed Silo / Grain Steel Silo
Application
Farm / Poultry Farming
Galvanized Coating
275g/m²
📄 Product Description

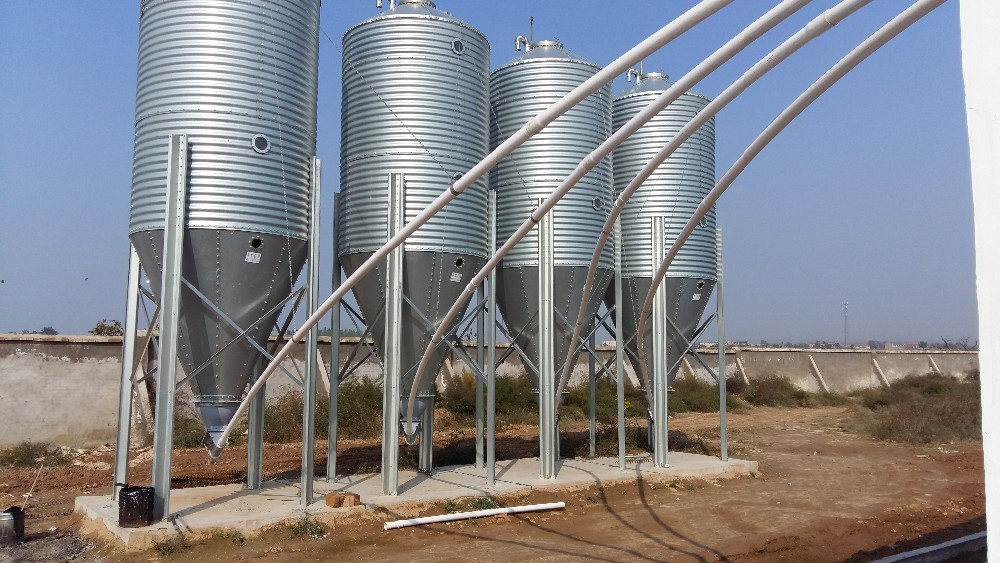

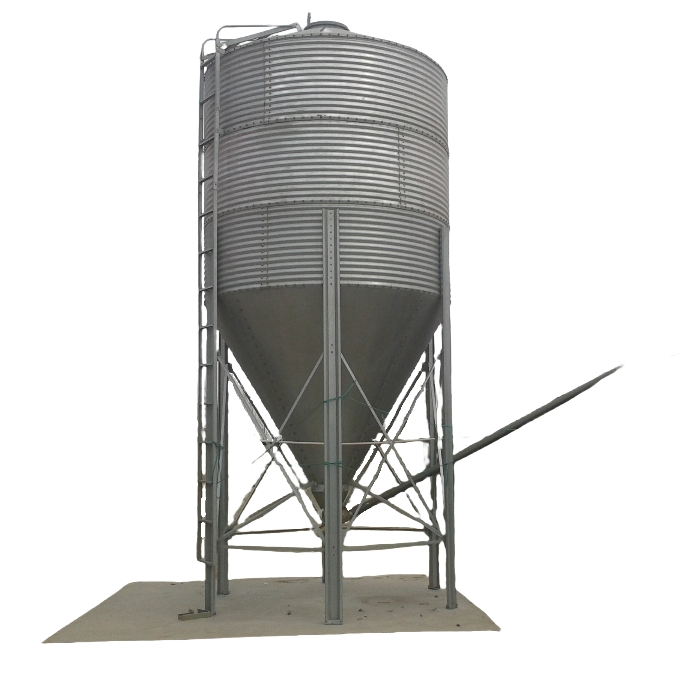

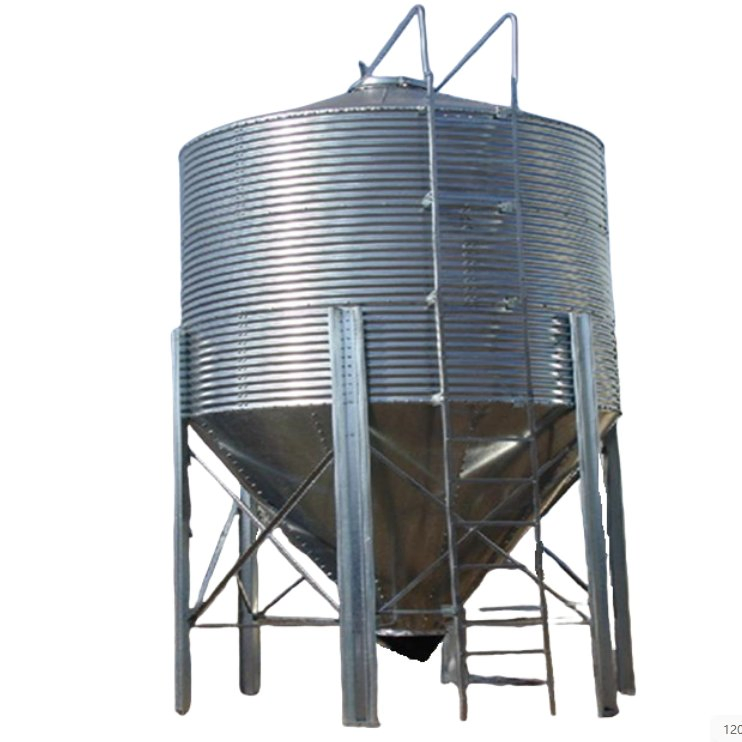

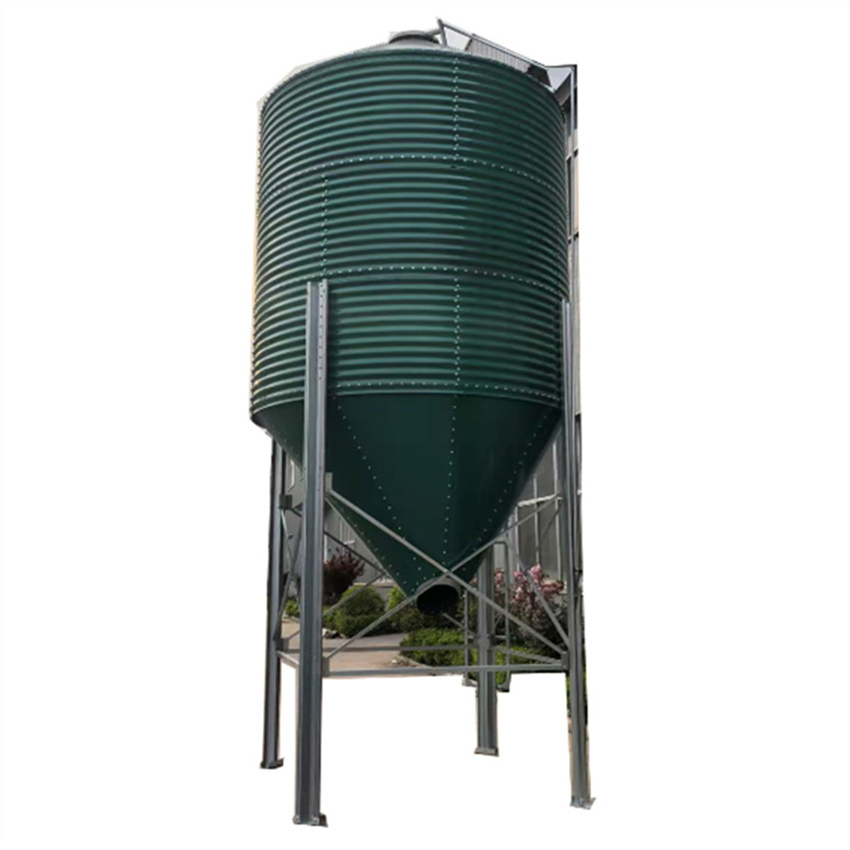

FEED SILO
The feed silo is constructed using high-quality 275 g/m² hot-dip galvanized sheet. All assembly components utilize 8.8-level high-strength hot-dip galvanized bolts, ensuring superior corrosion resistance, anti-oxidation properties, and the ability to withstand extreme temperatures and strong storms.

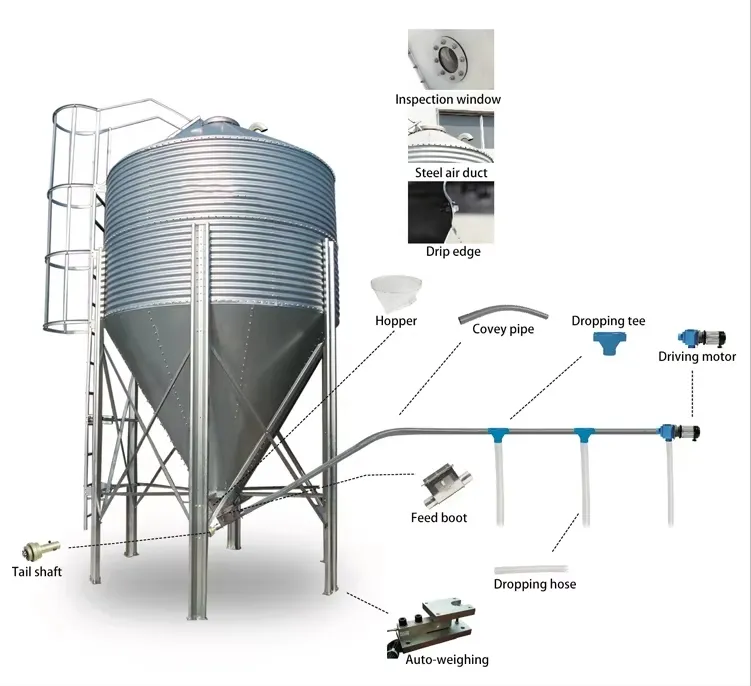

The system is primarily composed of the silo body, cover, mounting ladder, and supporting legs. Every part is manufactured using advanced laser equipment and precision molds to ensure standard sizing and convenient on-site installation.
⭐ Key Advantages
- Standard safety ladder with guard railing.
- Firm connections with exceptional sealing performance.
- High-quality plates providing a service life of over 30 years.

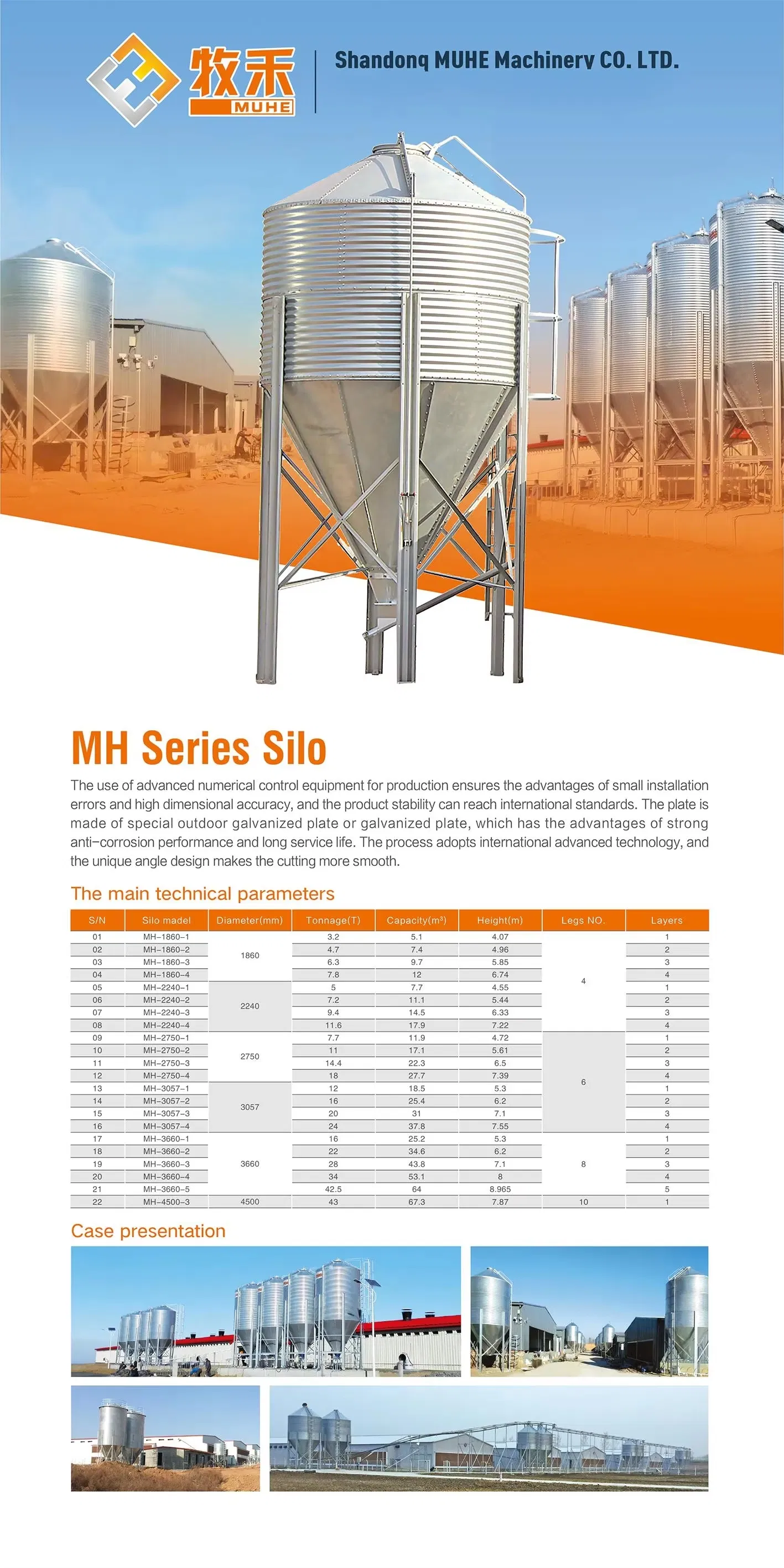

📊 Product Parameters
| S/N |
Silo Model |
Diameter(mm) |
Tonnage(T) |
Capacity(m³) |
Height(m) |
Legs NO. |
Layers |
| 01 | MH-1860-1 | 1860 | 3.2 | 5.1 | 4.07 | 4 | 1 |
| 02 | MH-1860-2 | 1860 | 4.7 | 7.4 | 4.96 | 4 | 2 |
| 03 | MH-1860-3 | 1860 | 6.3 | 9.7 | 5.85 | 4 | 3 |
| 05 | MH-2240-1 | 2240 | 5.0 | 7.7 | 4.55 | 4 | 1 |
| 09 | MH-2750-1 | 2750 | 7.7 | 11.9 | 4.72 | 6 | 1 |
| 13 | MH-3180-1 | 3180 | 12.0 | 18.5 | 5.3 | 6 | 1 |
| 17 | MH-3660-1 | 3660 | 16.0 | 25.2 | 5.3 | 8 | 1 |
| 22 | MH-4500-3 | 4500 | 43.0 | 67.3 | 7.87 | 10 | 1 |
⚙️ Components & Features

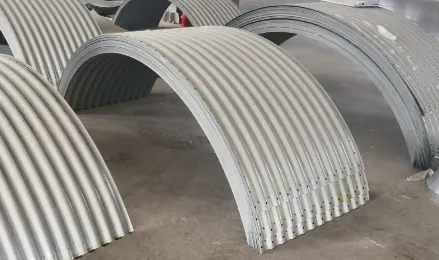

Corrugated Ring Sheets
Hot-galvanized corrugated steel plates reduce internal condensation. ZN-Coat thickness ≥275 g/m² with sealing glue between sheets to prevent feed mildew.

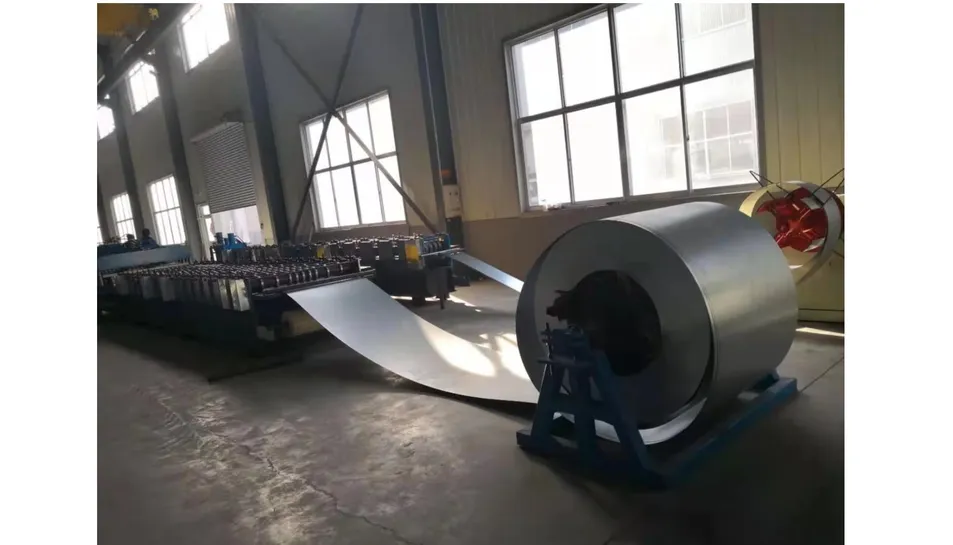

Advanced Production
Capable of producing silos from 3T to 1000T with sufficient capacity to meet diverse customer requirements.

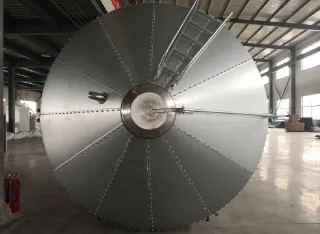

Automatic Inlet Cover
304 SS Top Cover with elastic torsion spring control for easy and safe manual operation.

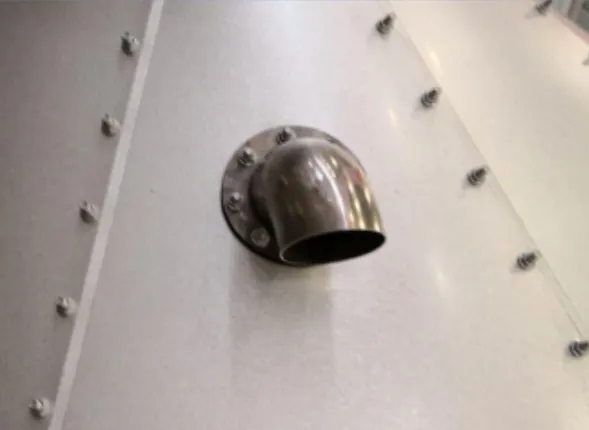

Ventilation Air Duct
Balances air pressure between internal and external environments, discharging heat and moisture.
Observation Window
Plastic injection molded windows with high light transmittance to check feed levels clearly.
❓ FAQ
Q1: What materials are used to ensure the durability of the silo?
The silos are made of 275 g/m² hot-dip galvanized steel sheets and 8.8-level high-strength bolts, providing excellent corrosion and oxidation resistance.
Q2: How long is the expected service life of the feed silo?
With high-quality galvanized plates and precision manufacturing, the silo has a service life ranging from 25 to 40 years.
Q3: How do I monitor the amount of feed remaining in the silo?
The silo is equipped with transparent observation windows made of injection-molded plastic, allowing you to clearly check feed delivery and levels.
Q4: Is the silo protected against moisture and mildew?
Yes, the corrugated sheets reduce internal condensation, and specialized sealing glue is added between ring sheets to prevent water ingress.
Q5: What safety features are included for maintenance?
Each silo comes with a standard ladder that includes a safety guard railing for reliable and safe access to the top.

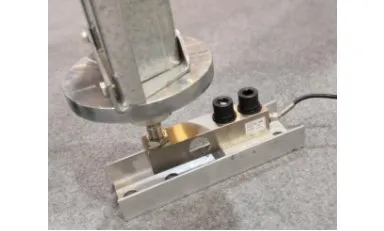

Q6: Can the silo system control feed distribution by weight?
Yes, we offer a silo weighting system that helps control feeding based on real-time data to prevent waste and maximize feed usage.
