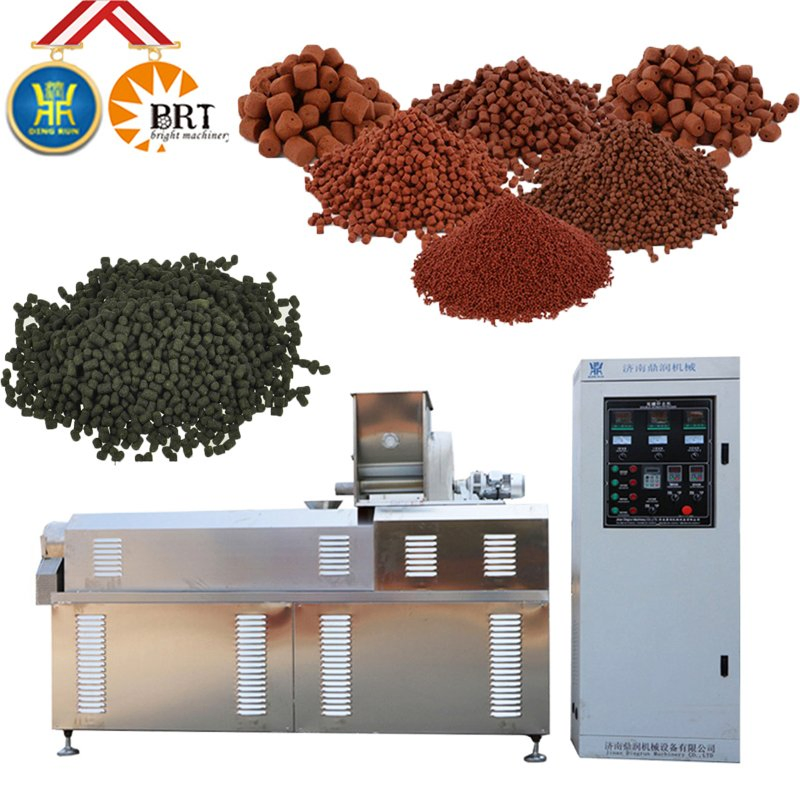

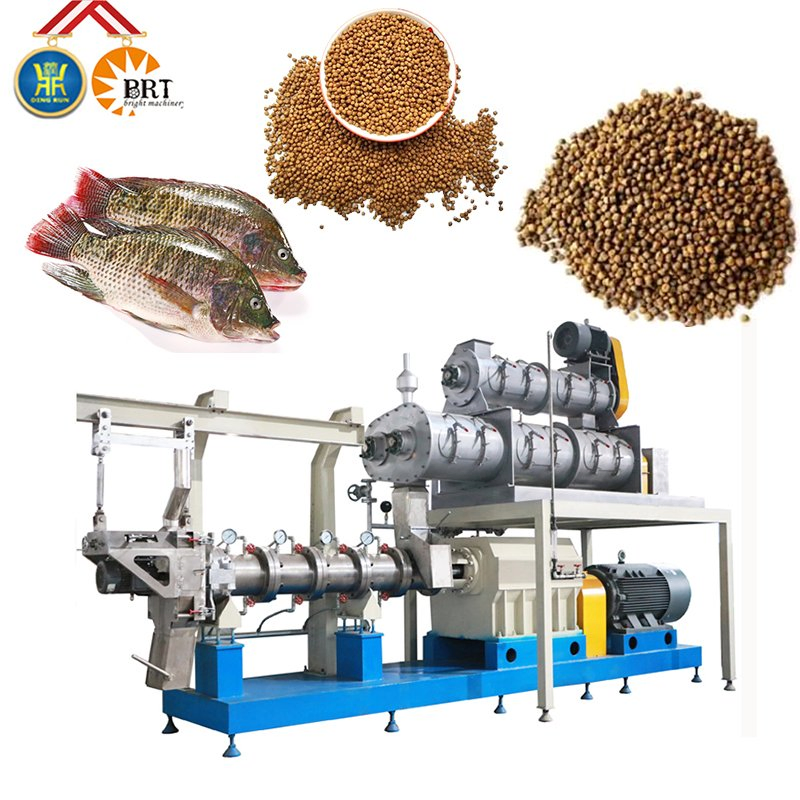

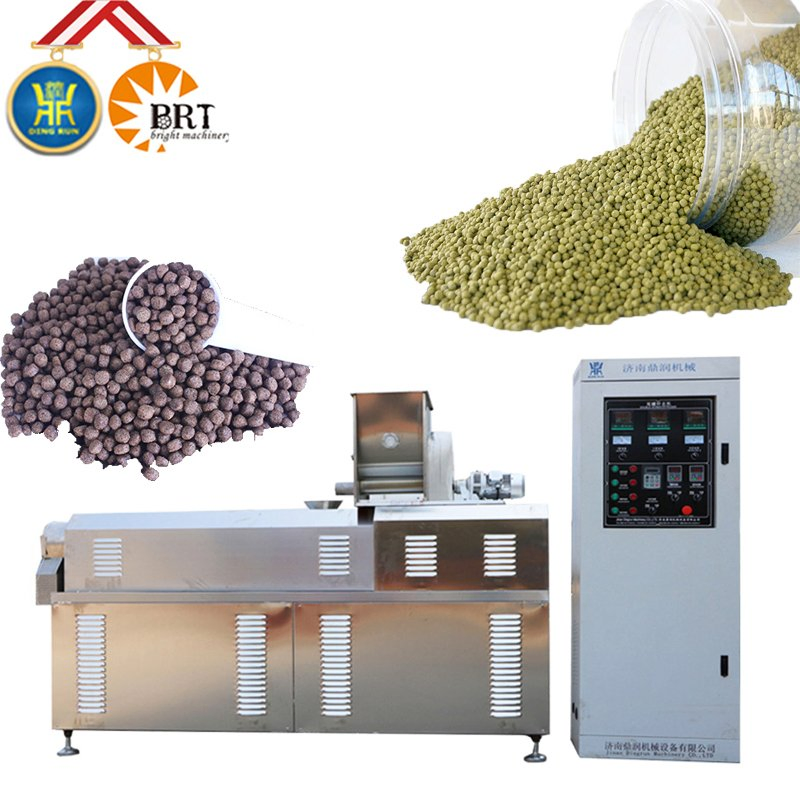

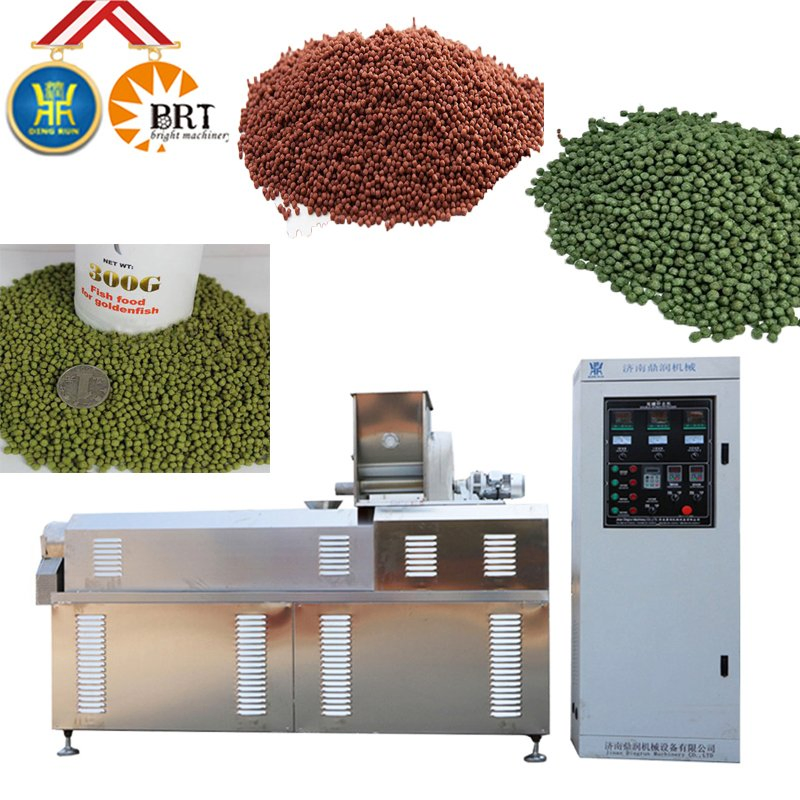

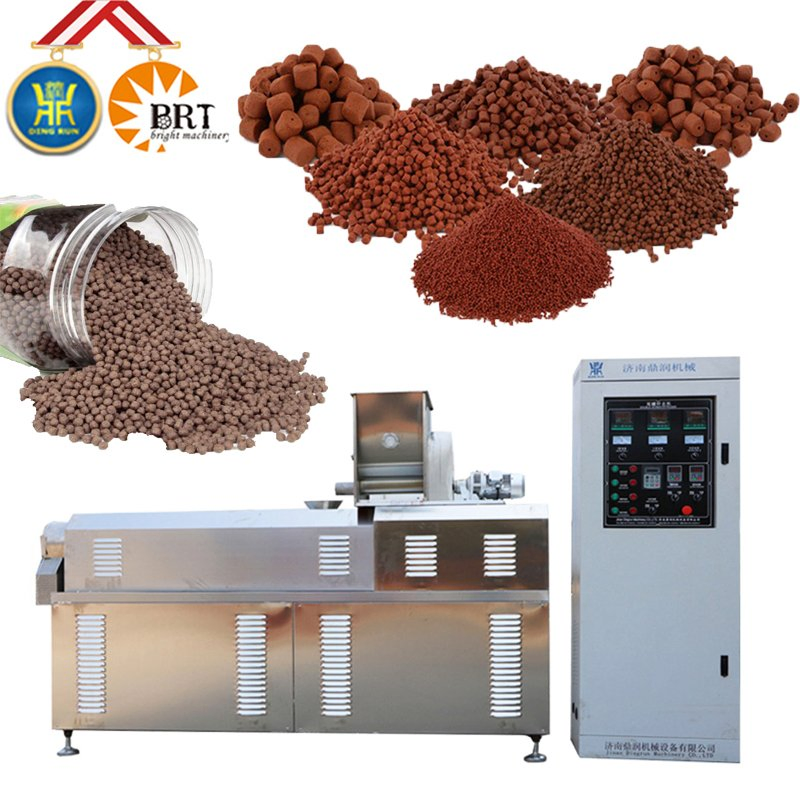

Hot Selling 800kg Complete Shrimp Fish Feed Production Line Feed Pellet Making Machine

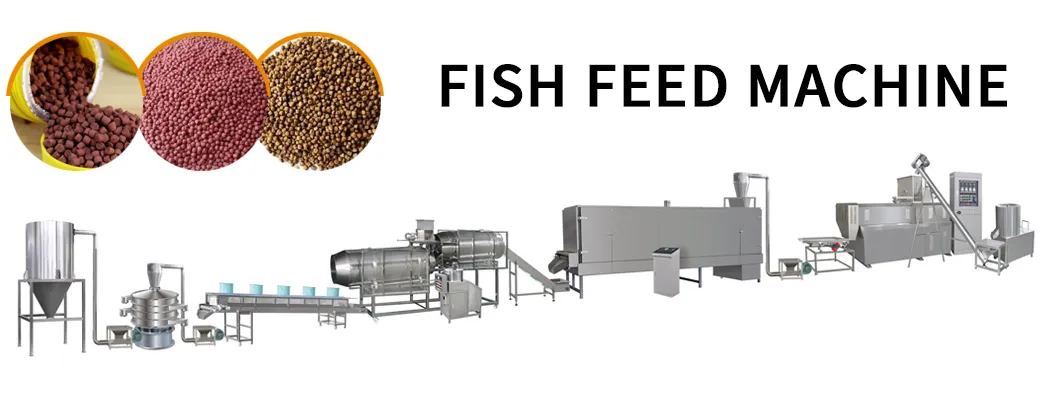

1. Introduction of Fish feed production line:
The fish feed making machine and inflating production machine line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc. Our twin screw extruders can produce floating and sinking feed size range 2-12 mm by adjusting temperature, moisture, formulation and changing moulds.
Our fish food making machine also can be used for dry pet food production, such as dog food, cat food, bird feed, monkey food, etc.
Product Samples:
2. Raw materials: Most fish feed pellet including animal protein and plant protein. Plant protein adopts corn flour, rice flour, wheat flour, soybean flour, peanut cake powder. Animal protein adopts fish meal, shrimp meal, crab meal, sleeve-fish meal and so on. Fresh fish, bone, high protein content and high fat raw materials can also be added.
| Model | Installed Power | Power Consumption | Output | Size (m) |
|---|---|---|---|---|
| DSE-65 | 74 kw | 52 kw | 140-160 kg/hr | 17x1.3x2.2 |
| DSE-70/75 | 105 kw | 75 kw | 240-350 kg/hr | 20x1.5x2.2 |
| DSE-85 | 205 kw | 150 kw | 500-600 kg/hr | 30x1.5x2.6 |
| DSE-90 | 132 kw | 75 kw | 800-1200 kg/hr | 35x2.5x3.8 |
| DSE-95 | 165 kw | 90 kw | 1500-2000 kg/hr | 40x3.5x4.5 |
| DSE-130 | 280 kw | 132 kw | 3000-3500 kg/hr | 45x4.5x6.0 |

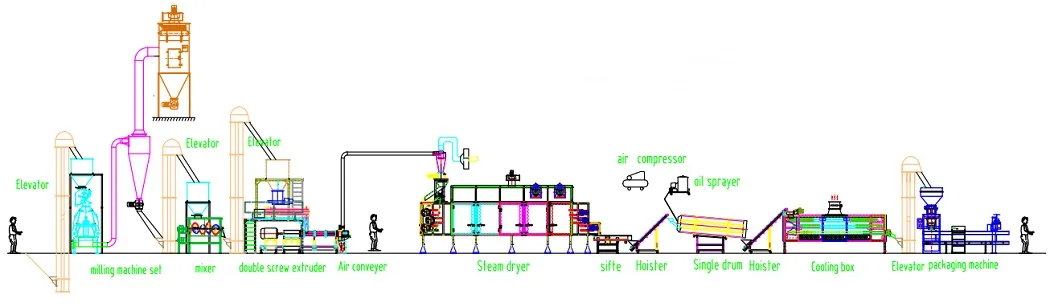

5. Flow chart:
Milling machine → Mixer → Screw conveyor → Extruder → Air conveyor → Dryer → Flavoring machine → Hoister → Cooling machine → Packing machine

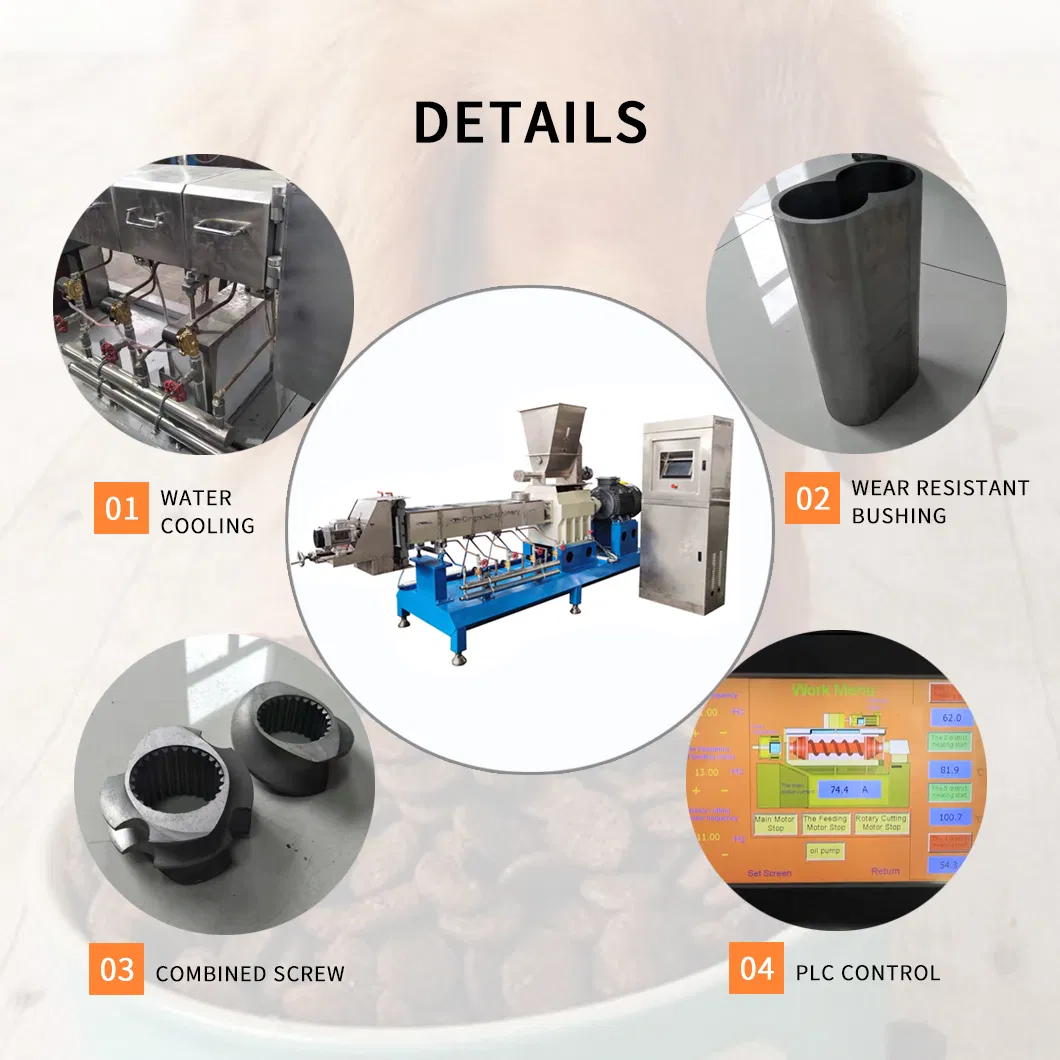

7. Machines Materials: All fish feed extruder machines are made of stainless steel. The screws are made by alloy steel, with building block system structure and self-cleaning function. High configuration extruder machine with water cooling system and wear resistant bushings keep the extruder working for a long time. PLC control is easy to operate.

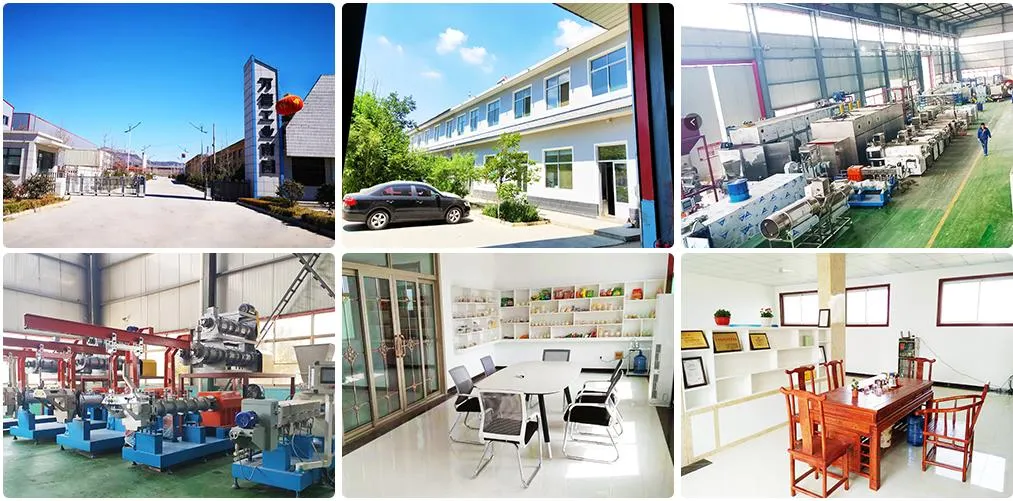

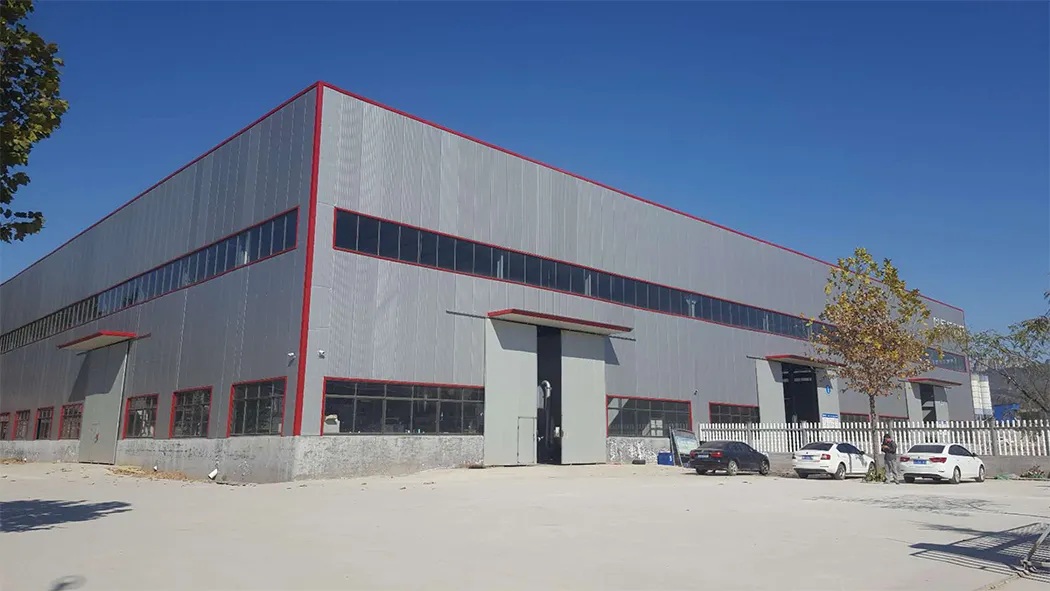

The machinery manufacturer's factory covers 6000m³. With many years of research and study, extrusion techniques have been widely used in many fields. Products consist of single/double-screw extrusion snacks machinery, breakfast cereal, fish feed machines, pet food machinery, and fried food machinery. Individual equipment or complete factory layouts can be supplied.
