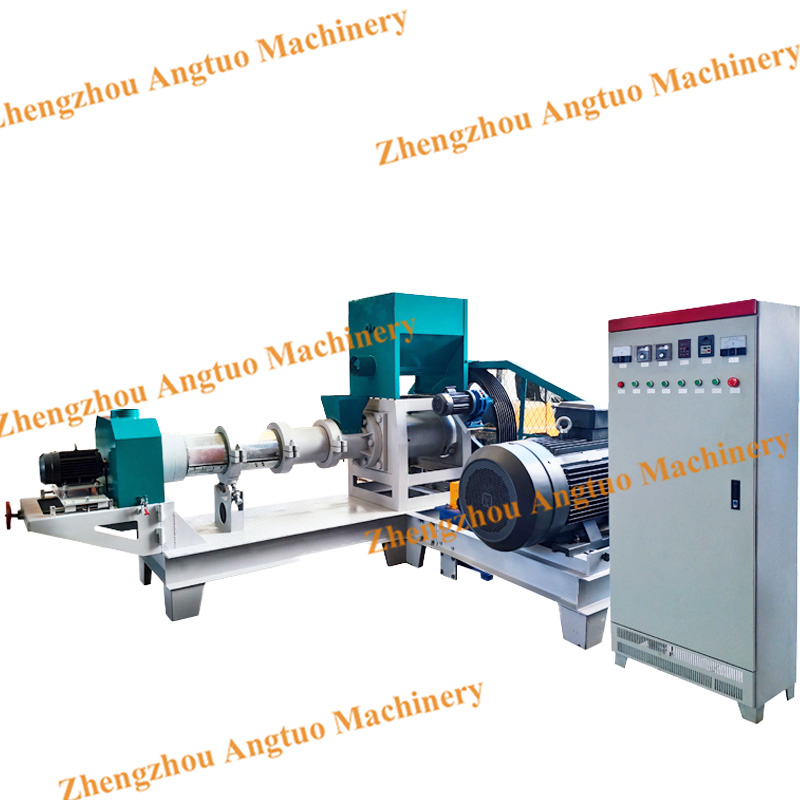

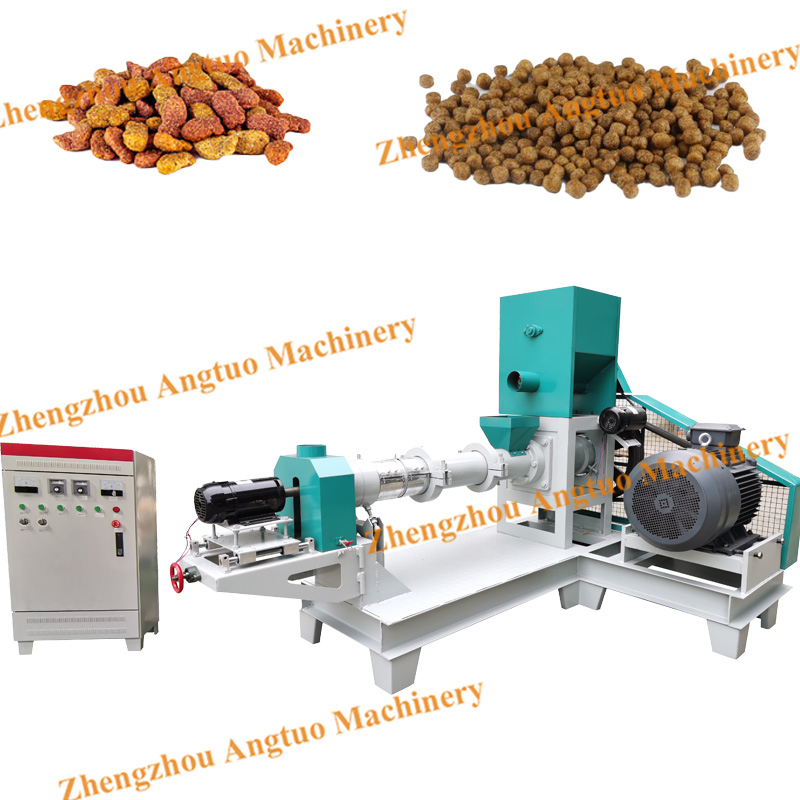

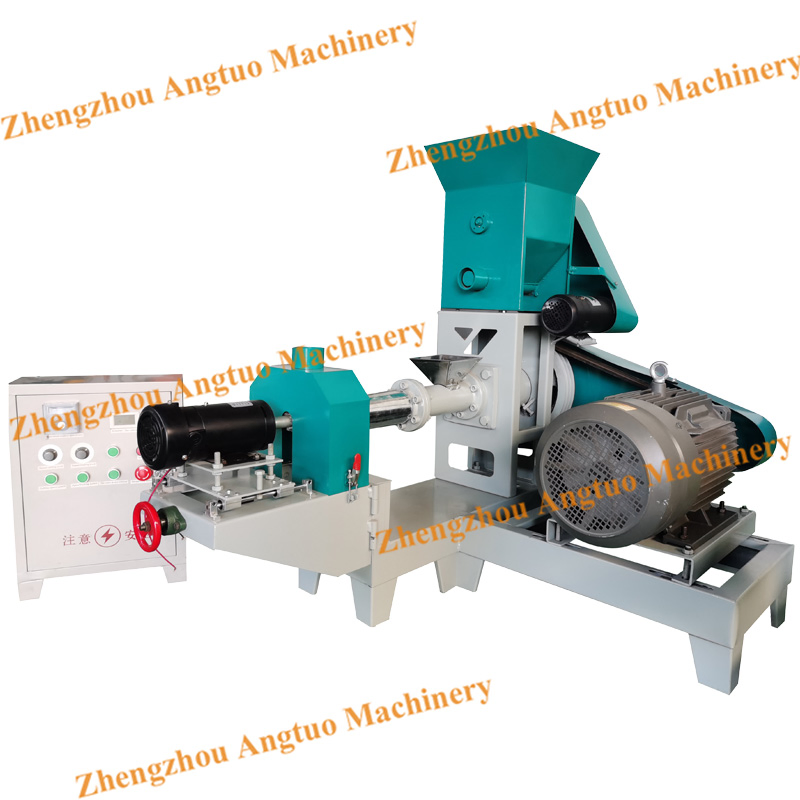

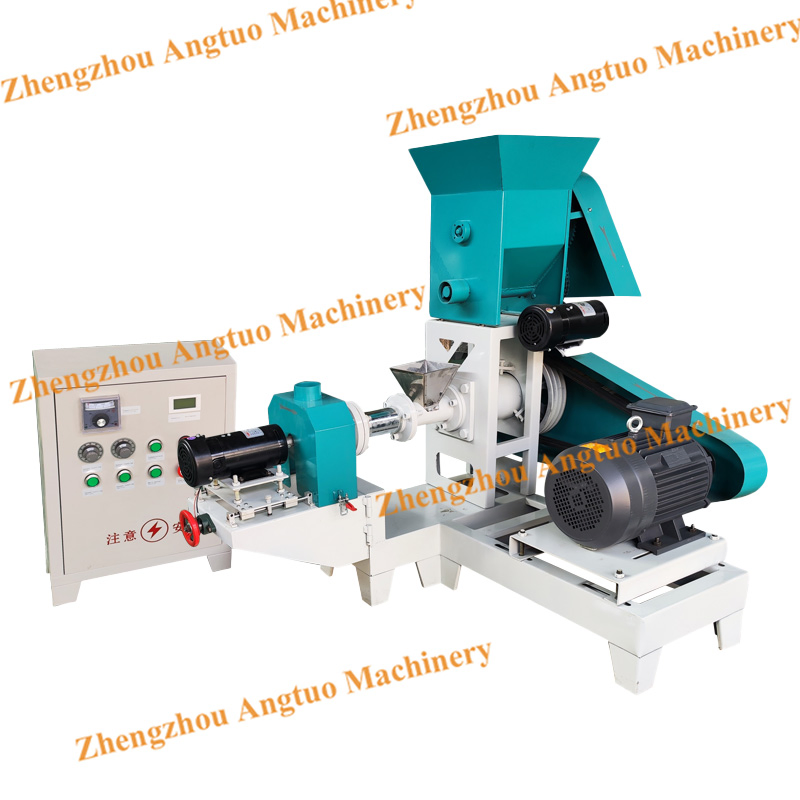

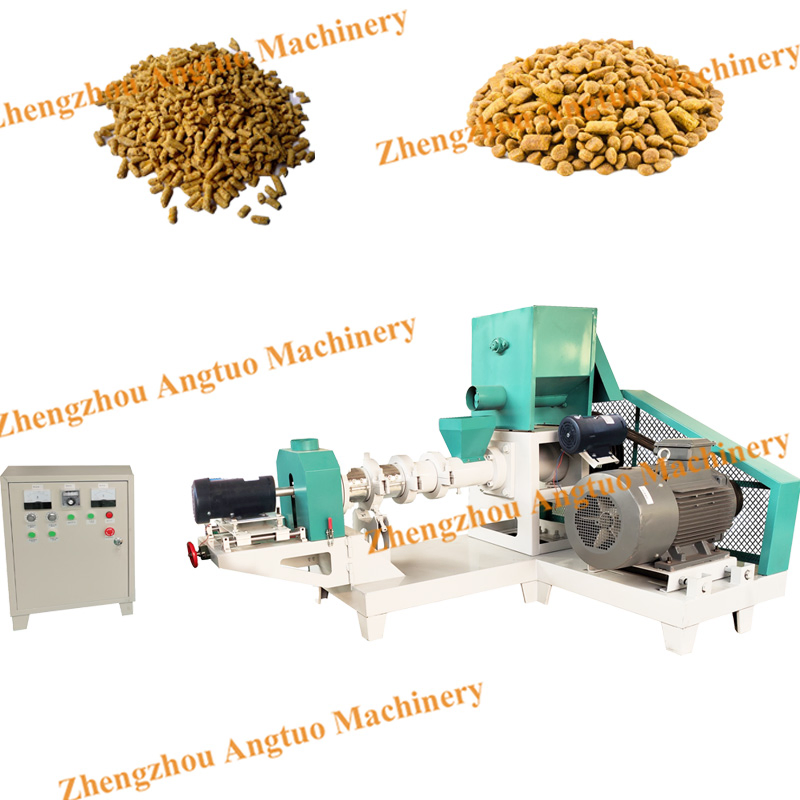

Continuous Work Carp Shrimp Cat Floating Fish Feed Pellet Maker Machine

Customization: Available
After-sales Service: 1.5 Year
Type: Pellet Mill

Product Description

📋

Basic Info

Model NO.ATYSL-40 Processing ObjectAnimal-Derived Feed
Processing TechnicsCrushing-before-Mixing Screen MeshWithout Screen Mesh
Grinding EquipmentFeed Hammer Mill Pellet Mill TypePuffed
Bulking MachineSingle Screw Bulking Machine Expanding MethodDry Expansion
ConditionNew Applicable MaterialsBall Shape
Warranty1.5 Year Production Capacity30-40kg/H
⚙️

Product Description

Screw Fish Feed Extruder Floating and Sinking Small Fish Feed Machine

The fish feed extruder machine is mainly used for producing floating or sinking fish feed pellets and is widely applied in aquaculture industry. It adopts high temperature and high pressure extrusion technology. Through screw extrusion, heating and forming, the feed pellets obtain uniform porous structure with good expansion performance and stable floating or sinking effect in water.

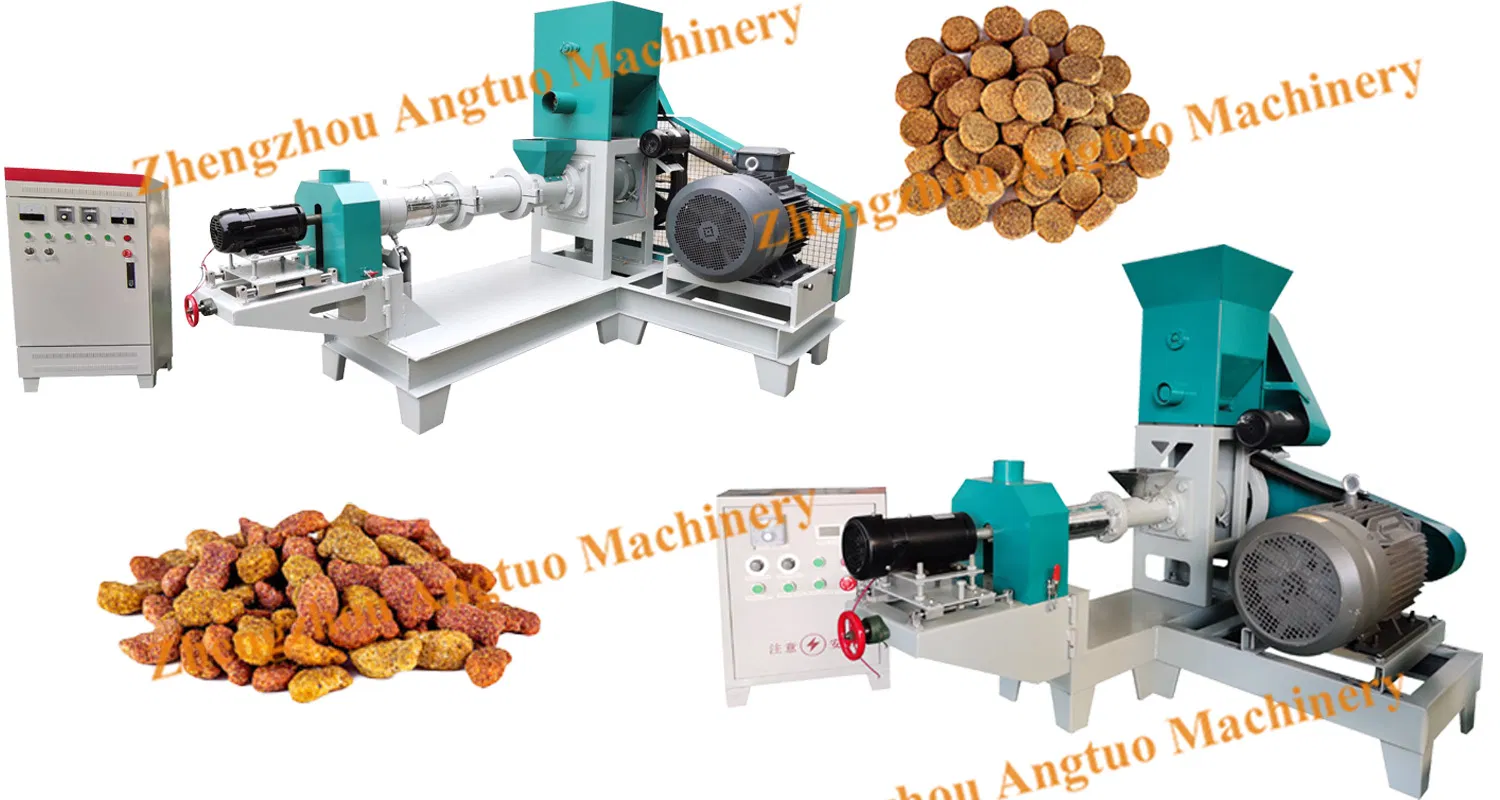

Fish Feed Pellet Maker

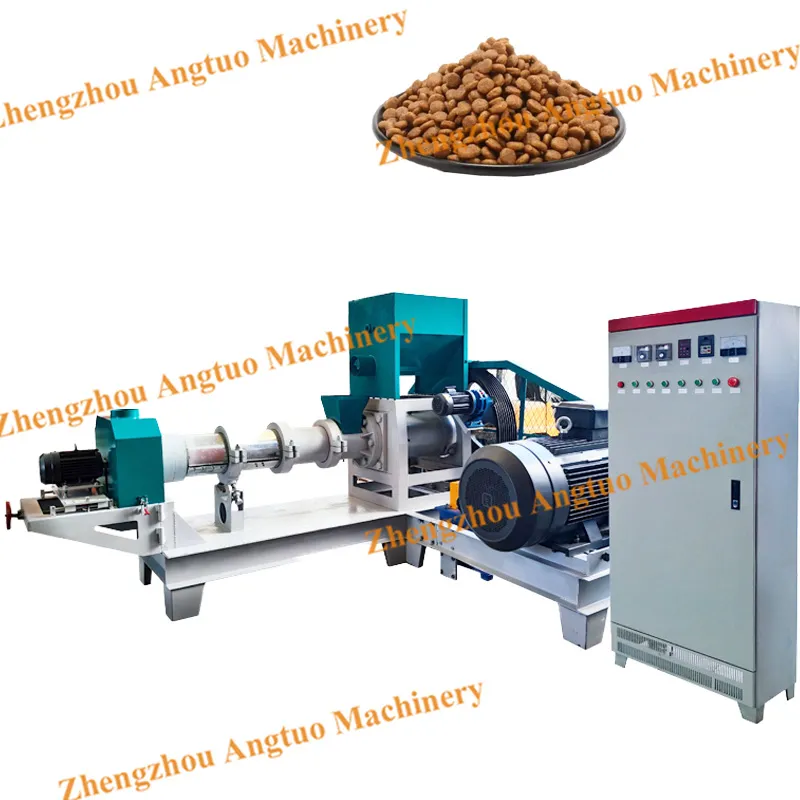

Feed Machine Detail 1

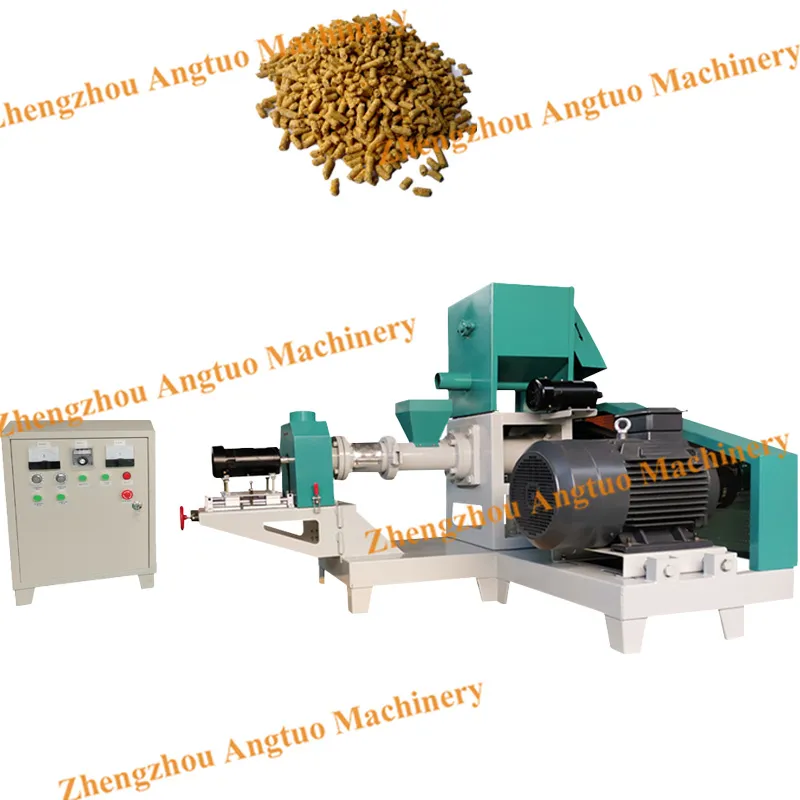

Feed Machine Detail 2
📏

Technical Specifications

Model Capacity (kg/h) Pellet Diameter Motor Power Feeder Power Cutter Power Screw Rod
ATYSL-4030-400.5-6mm5.5kw0.4kw0.4kw40mm
ATYSL-5060-800.5-6mm7.5kw0.4kw0.4kw50mm
ATYSL-60120-1500.5-10mm15kw0.4kw0.4kw60mm
ATYSL-70180-2500.5-10mm18.5kw0.4kw0.4kw70mm
ATYSL-80300-3500.5-10mm22kw0.4kw1.1kw80mm
ATYSL-120500-7000.5-12mm55kw0.4kw2.2kw120mm

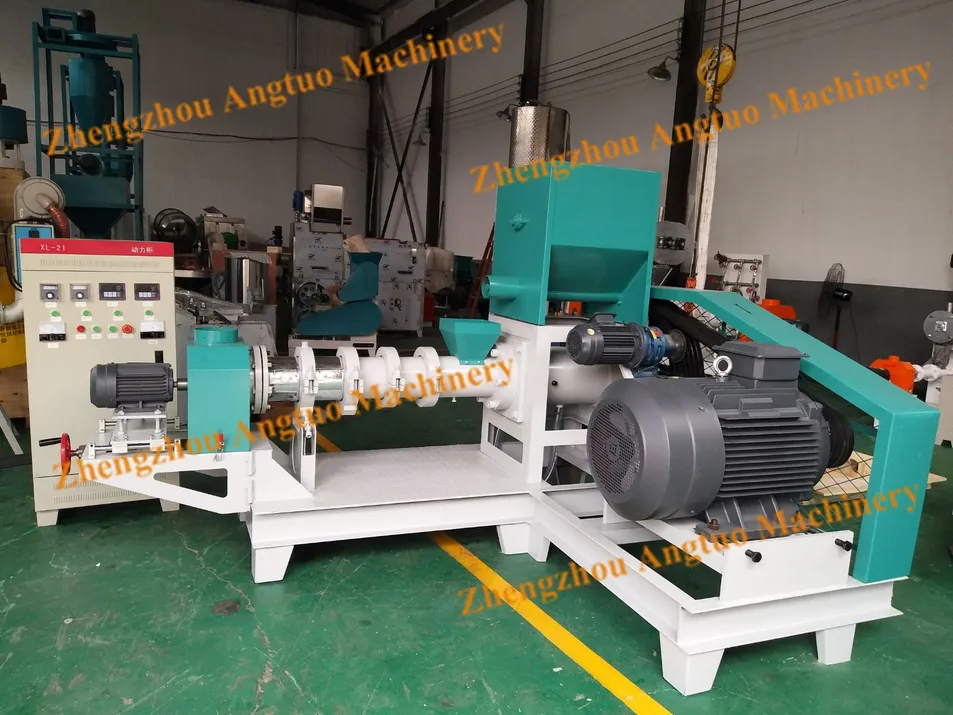

Machine Feature 1

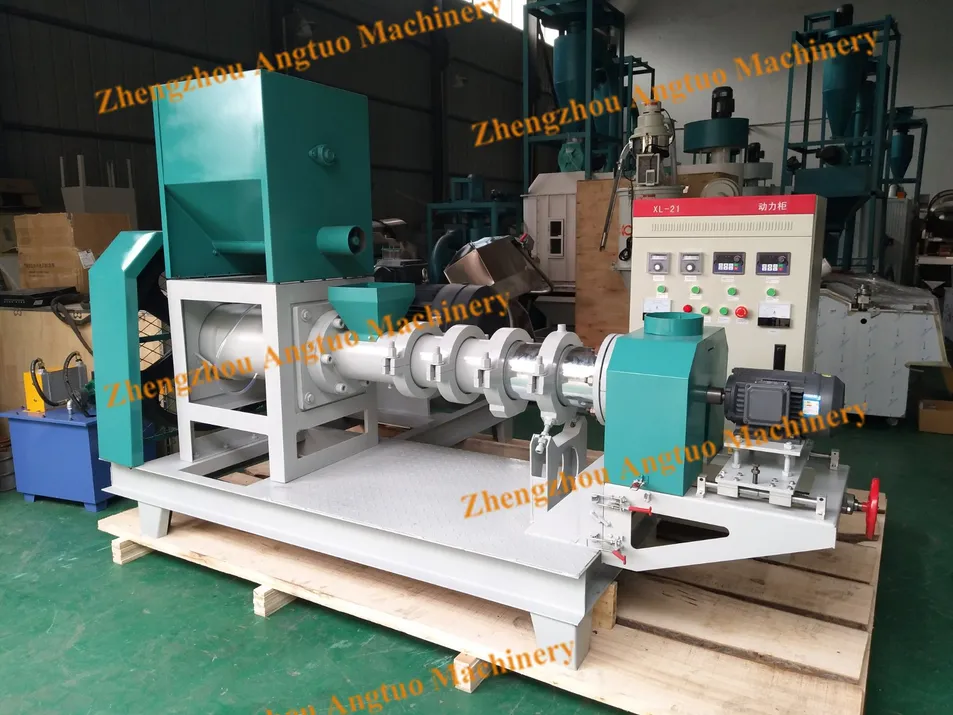

Machine Feature 2

✨ Key Features

  • Screw extrusion structure with stable performance
  • Supports both floating and sinking fish feed
  • Replaceable molds for various pellet sizes
  • Wide raw material adaptability
  • Uniform pellet shape and high durability

🌍 Applications

  • Aquaculture farms
  • Fish feed processing factories
  • Medium/Small feed production lines
  • Household feed production

Raw Materials: Corn flour, soybean meal, fish meal, wheat bran, rice bran, feed additives.

🛠️

Optional Accessories & Operation

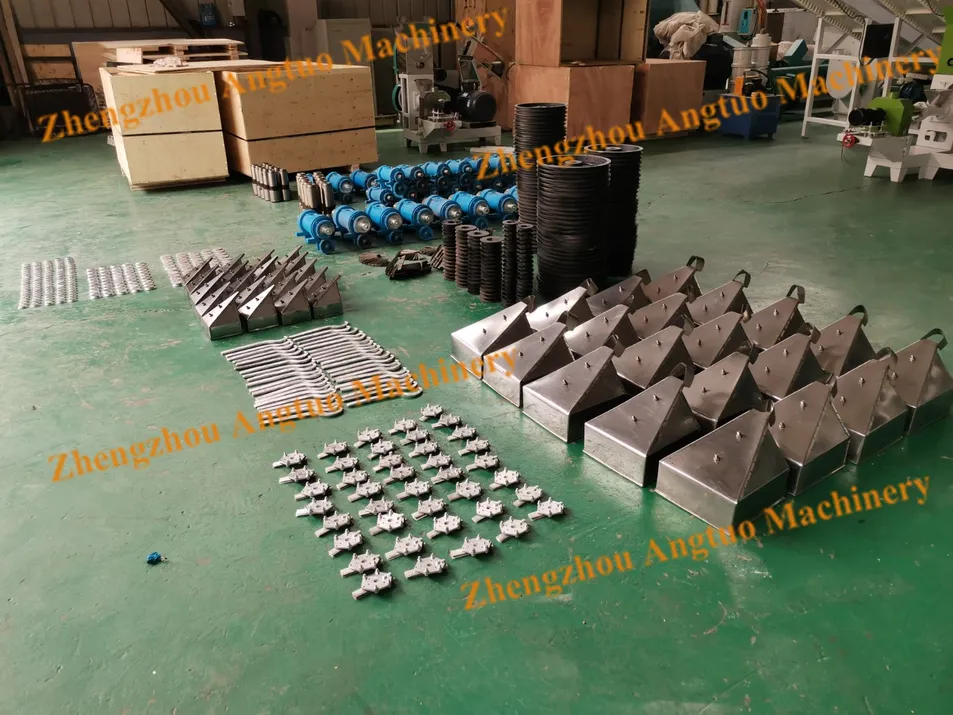

Accessories

Molds / Dies: Different sizes for various diameters.

Cutting Knife: Controls pellet length with uniform cutting.

Heating System: Improves pellet expansion performance.

Control Panel: Centralized control for safe operation.

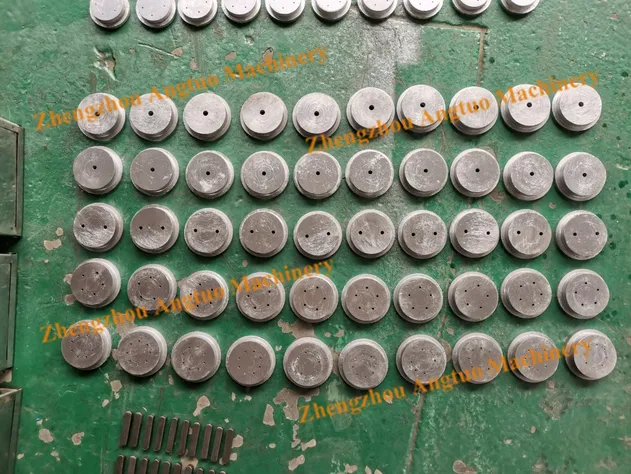

Mold 1

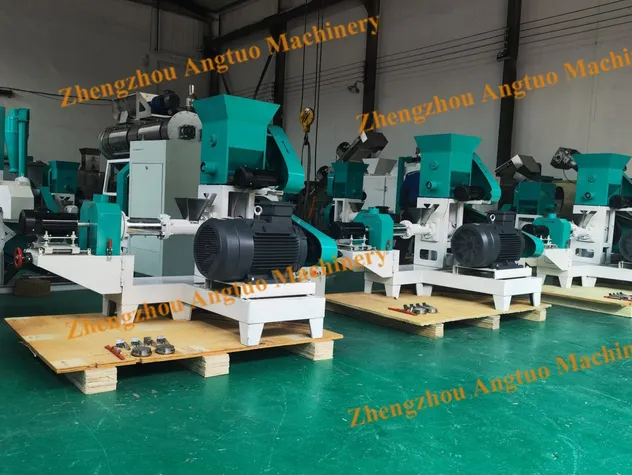

Mold 2

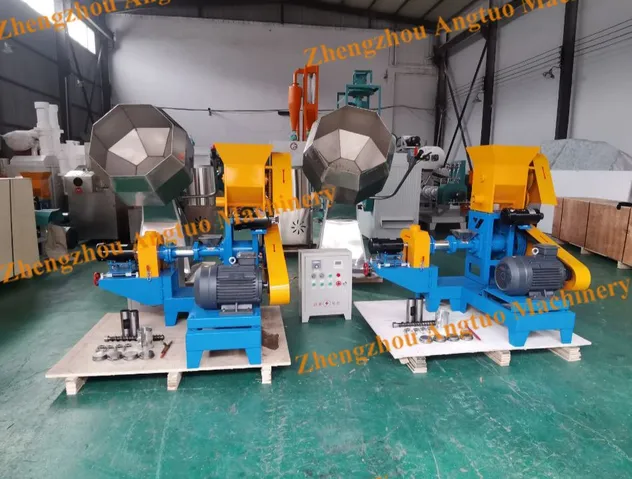

Mold 3

💡 Operation Notes

  • Check power supply and transmission parts before starting.
  • Raw materials must be crushed and mixed evenly.
  • Never put hands into the feeding inlet during operation.
  • Clean screw and molds after use to avoid blockage.
  • Regularly lubricate bearings and transmission parts.
📦

Packing & Delivery

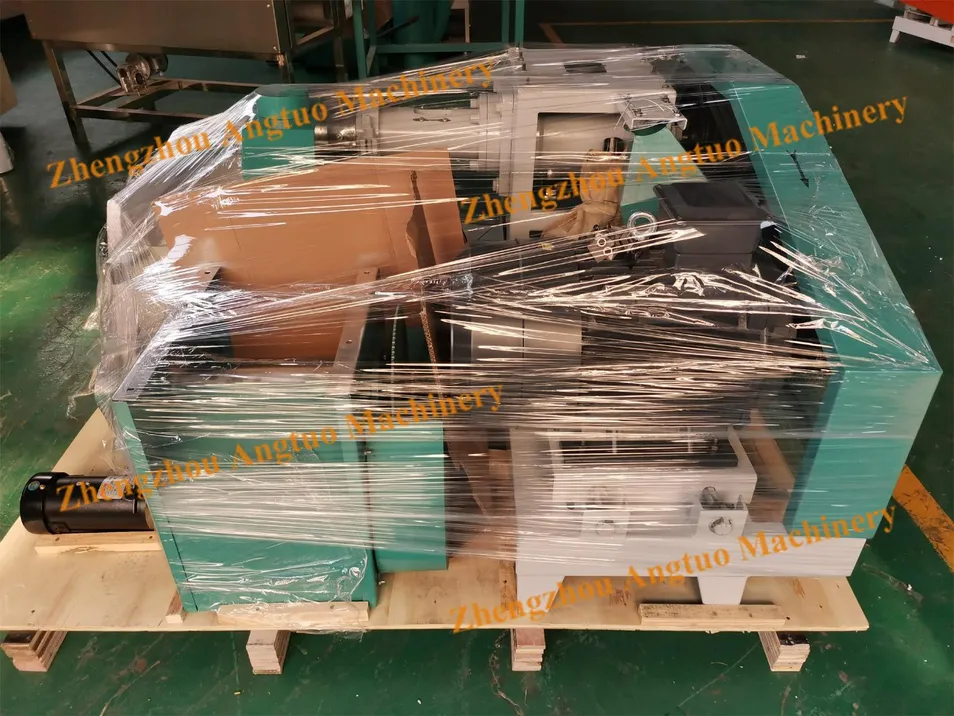

Packing 1
Packing 2
  • Quality Guarantee Period: Two years.
  • Oversea Engineer service available.
  • Lifetime Technical Support via video/email/phone.
  • Rapid repair or replacement within the guarantee period.
🏢

Professional Manufacturer

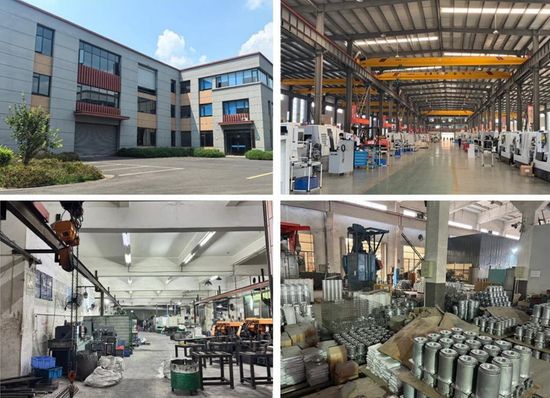

Video Cover

Specializing in the research, development, and production of food machinery and agricultural equipment. We adhere to the core principles of "innovation, quality, and service," providing efficient machinery solutions to customers worldwide. Our team utilizes advanced manufacturing processes to serve food production enterprises and farms globally.

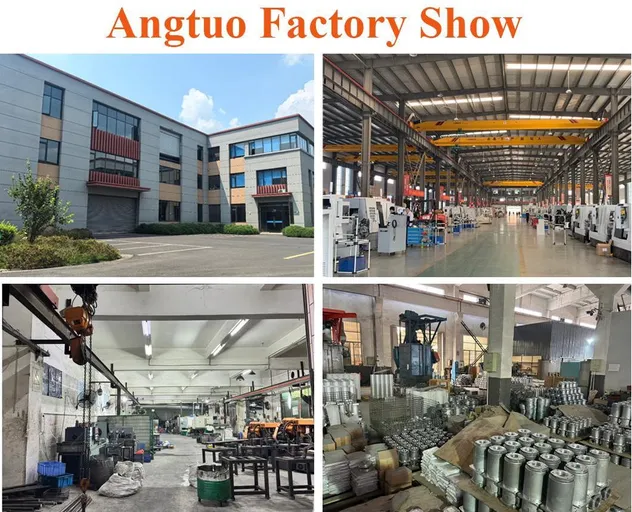

Factory 1
Factory 2
Factory 3

Frequently Asked Questions

Are you a trading company or a manufactory?
We are a manufactory. We supply factory prices with excellent quality. You are welcome to visit our facility!
What is your warranty for the machines?
We offer high-quality machines with a 1-year guarantee and provide life-long technical support.
How long does delivery take after payment?
The delivery time is based on the specific machine model and configuration you confirmed.
How does your after-sales service work?
Machines are adjusted before dispatch so you can use them immediately. We provide free training advice, suggestions, and technical support via email or phone for life.
Can I get spare parts for the machine?
Yes, after we finalize the order, we will provide a comprehensive spare parts list for your reference and future maintenance.
Can this machine produce both floating and sinking feed?
Yes, the machine is designed to produce both floating and sinking fish feed pellets by adjusting the formula and extrusion parameters.
