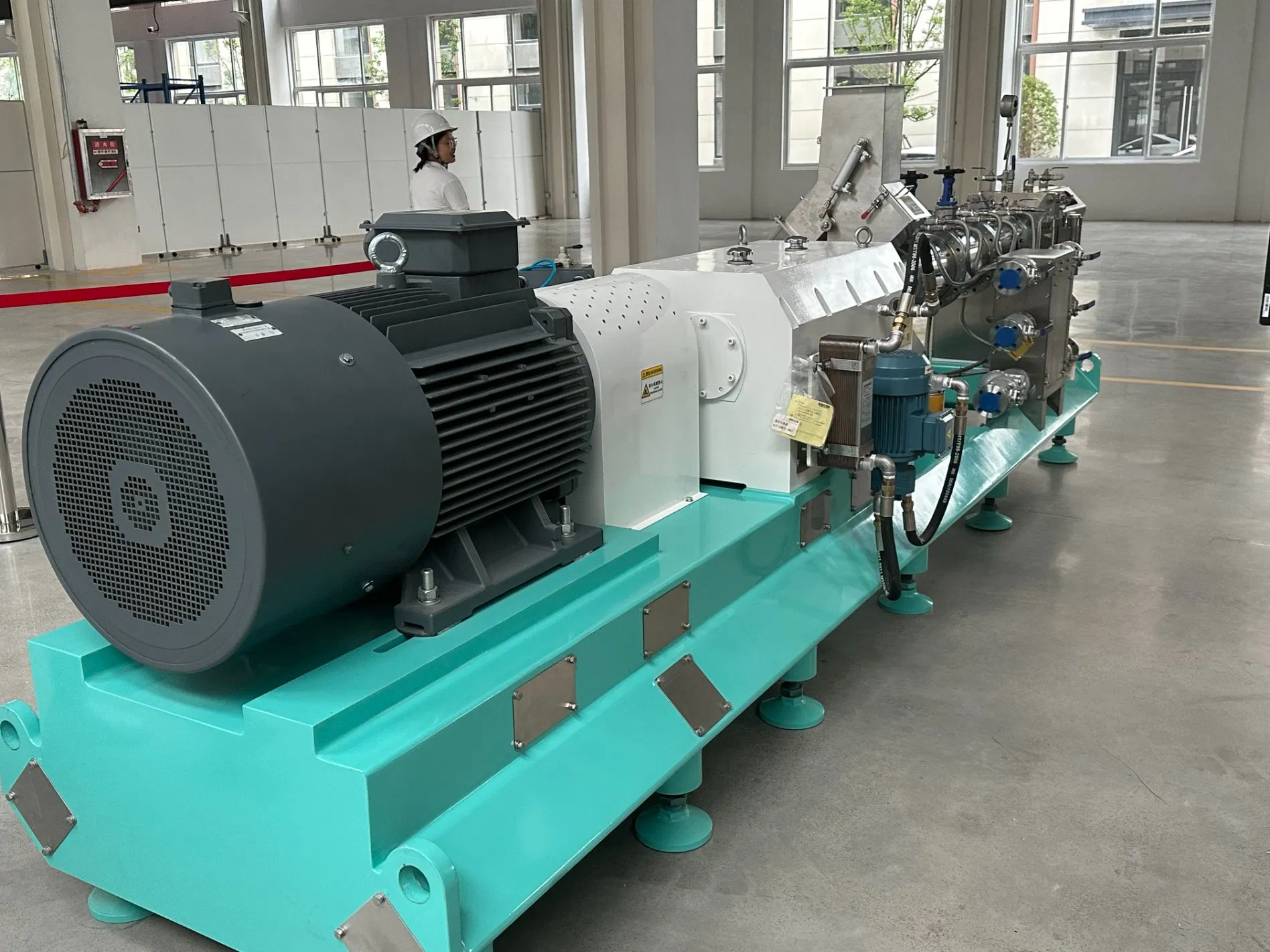

Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
1 / 5
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line
Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line

Automatic Dry Kibble Pet Dog Canine Cat Food Fish Shrimp Aquatic Feed Making Extruder Machine Production Line

Customization: Available
Type: Expanded Device
Processing Object: Mixed Feed
Send Inquiry

Product Description

Basic Information
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Wet Expansion
Condition
New
Applicable Materials
Granular
Warranty
12 months
Extruder Size
3-12mm
Rollers
Double Roller
Output Capacity
5tph @ 3.5mm
Driving System
Direct Gear Type
Motor Brand
Siemens Motor
Power
37-160kw
Feed Type
Pet and Fish Feed
After Sales Service
Full Installation / Supervisor / Training
Certificate
CE
Transport Package
Wooden Boxes/ Iron Frame
HS Code
8436100000
Production Capacity
3 Set/Month
Aquatic Pet Food Production Line
Aquatic Pet Food Production Line

Overview: This production line uses meat meal, fish meal, corn powder, soya meal, and other grains powder as main materials to produce pet food for dogs, cats, fish, and birds. By changing dies and formulations, different shapes and tastes can be achieved.

Raw Materials: Meat meal, Fish meal, Grains powder.
Products: Pellet food for dogs, cats, fish, birds.
Capacity: Range from 1Ton/h to 6Ton/h.
Material: All machines made of food-grade stainless steel.
Twin-Screw Extruder Specifications
Model Main Power (KW) Capacity (T/H)
GM55220.15-0.3
GM65450.1-0.3
GM68750.5-1.3
GM98110/1321.5-3.0
GM130200/1603.0-6.0
GM138250/2005.0-8.0
GM158400/3558.0-13.0
GM178500/63013.0-20.0
GM1218630/80020.2-25.0

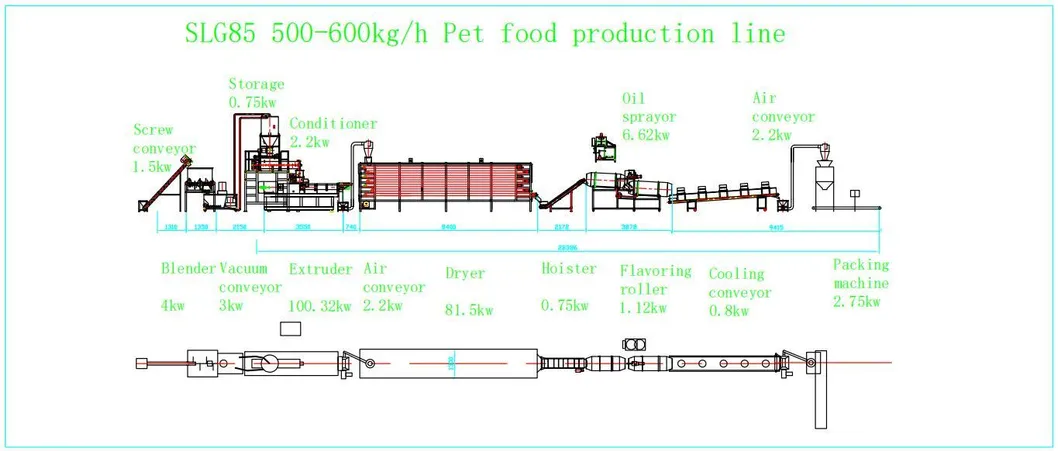

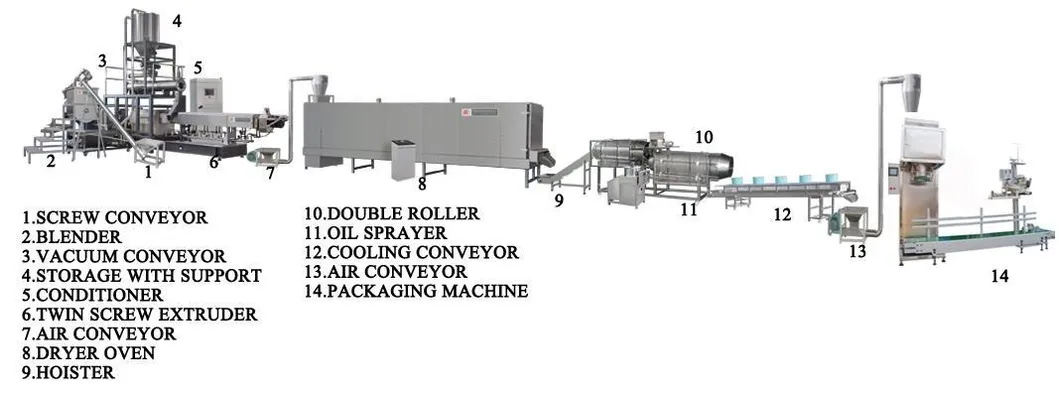

Production Process
Production Process
Samples of Pet Food / Fish Feed

Production of 1-20mm floating and sinking fish feed, as well as various shapes of dog and cat food.

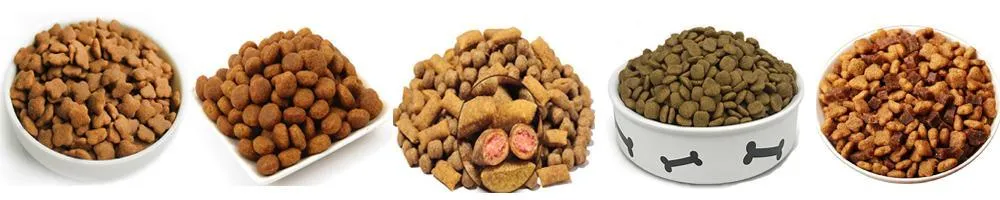

Feed Samples
Equipment System Details
Automatic Batching System: Fully automatic mixing of raw materials with scaling, reducing manual labor.
Grinding System: Grinds raw materials into fine powder with integrated dust collection.

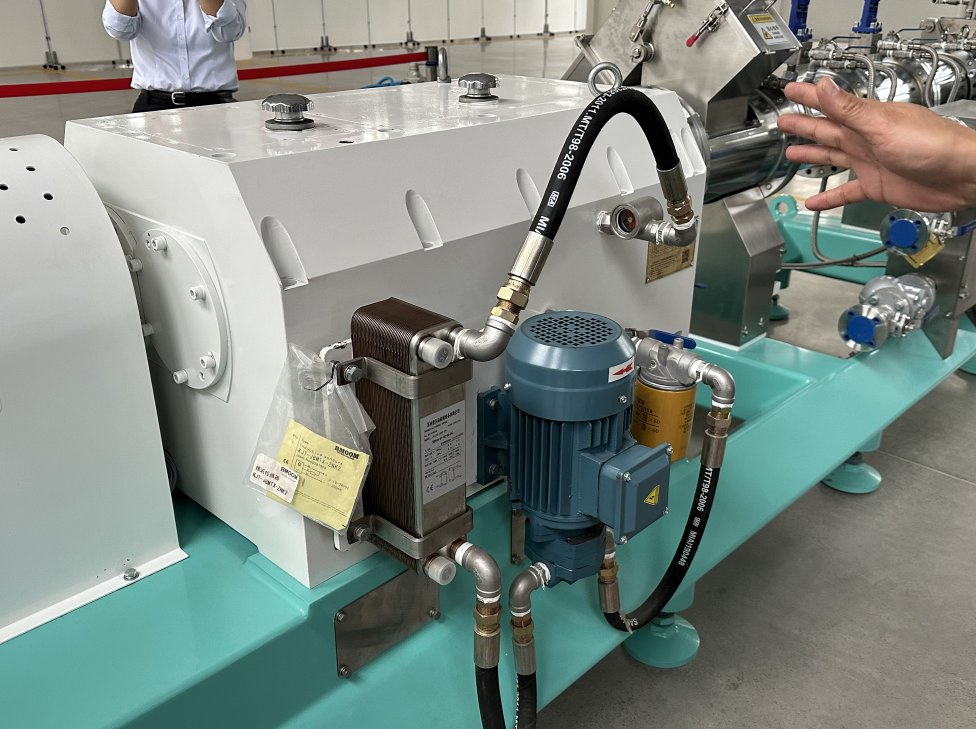

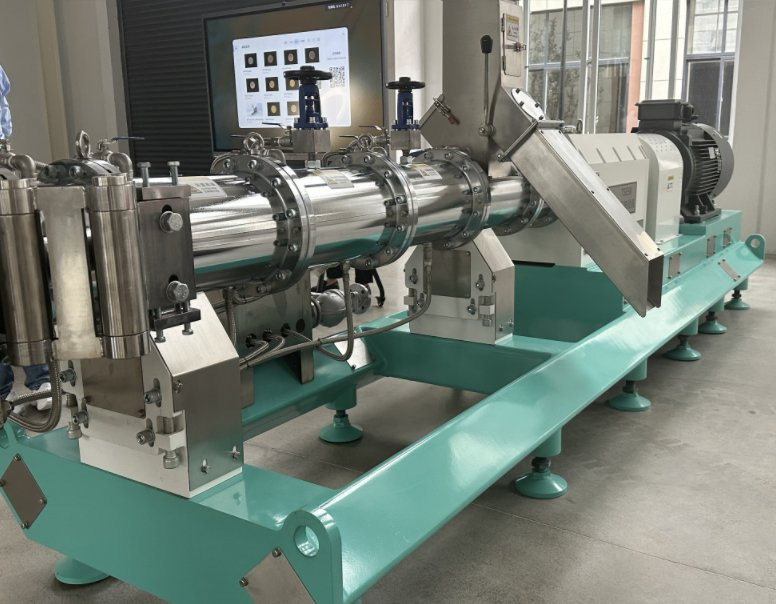

Extrusion System: Twin-screw design with alloy steel components, forced lubrication, and frequency speed control.
Drying System: Compact structure with high thermal efficiency and controllable belt net speed.
Flavor Oil Coating: Ensures finished food is fully mixed with flavors, oils, fats, and vitamins.
Counter Flow Cooling: Principles of counter-current cooling to prevent particle surface cracking.

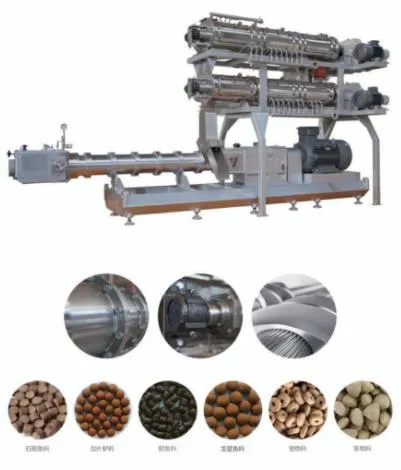

Equipment View 1 Equipment View 2
Our Advantages
Superior Quality: CE certified with components following international safety regulations.
Customized Solutions: Machine specifications and basic formulas tailored to client requirements.
Responsive Service: Support for machinery or production issues within 24 hours.
Test Workplace: On-site testing available with various flours and additives.
Global Experience: Successfully exported to over 130 countries since 2004.
Safety Stock: Immediate delivery for most machinery components and parts.

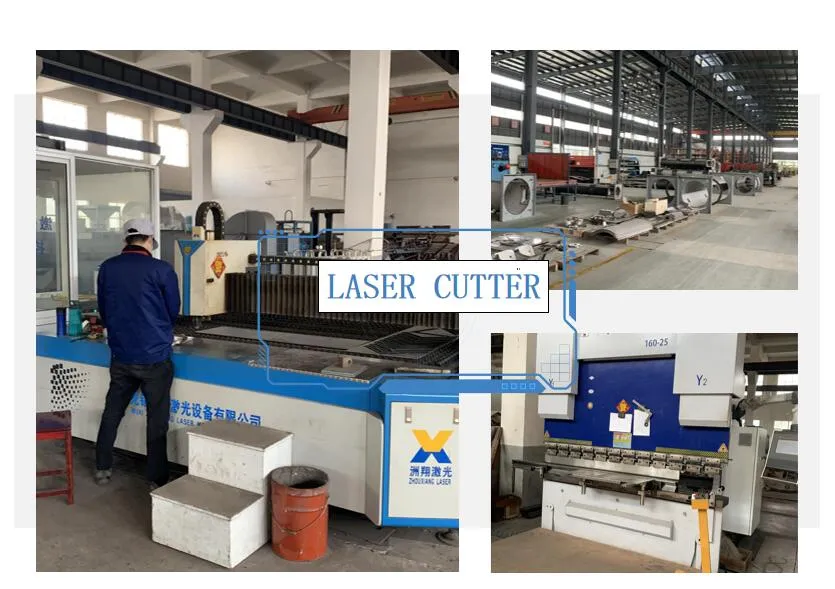

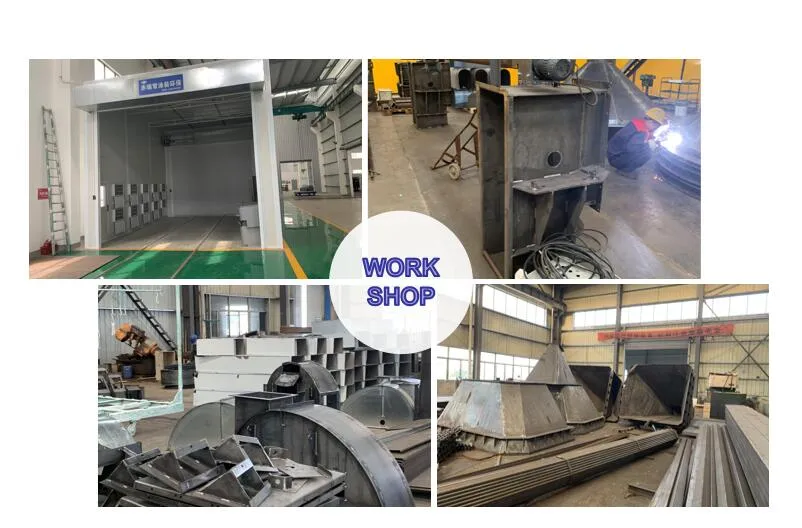

Factory Advantage Client Support

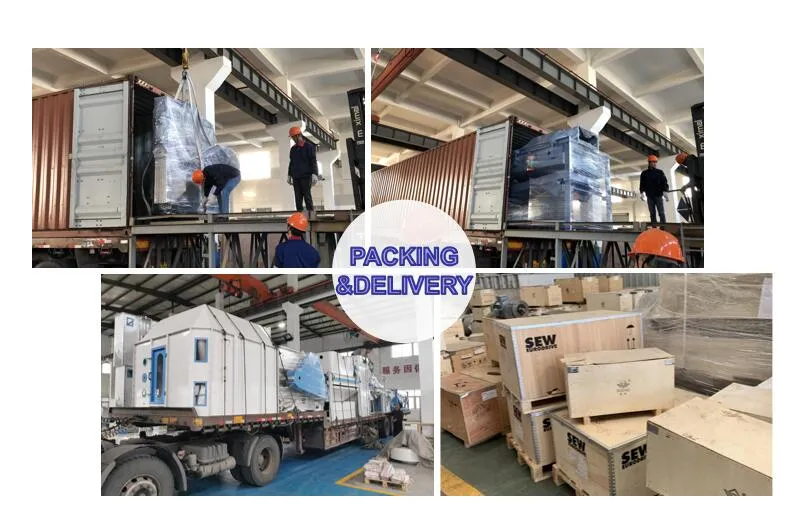

Packing & Delivery
Packing and Delivery
Frequently Asked Questions
What raw materials are suitable for this production line?
The system is highly adaptable and can process meat meal, fish meal, corn powder, soya meal, and various other grain powders.
Can I produce both floating and sinking fish feed?
Yes, by adjusting the formula and the extruder parameters, you can produce both floating and sinking feed ranging from 1mm to 20mm.
Is the machinery made of food-safe materials?
Absolutely. All machines in the production line are manufactured using food-grade stainless steel to ensure safety and hygiene.
What is the warranty period for the equipment?
We provide a 12-month warranty from the date of delivery, along with professional installation guidance and training.
How is the output capacity determined?
We offer various models (GM55 to GM1218) with capacities ranging from 0.1 Ton/h up to 25 Tons/h to meet different production needs.
Do you provide technical support for new formulations?
Yes, we assist customers by providing basic formulas and help in developing new products according to specific market requirements.
