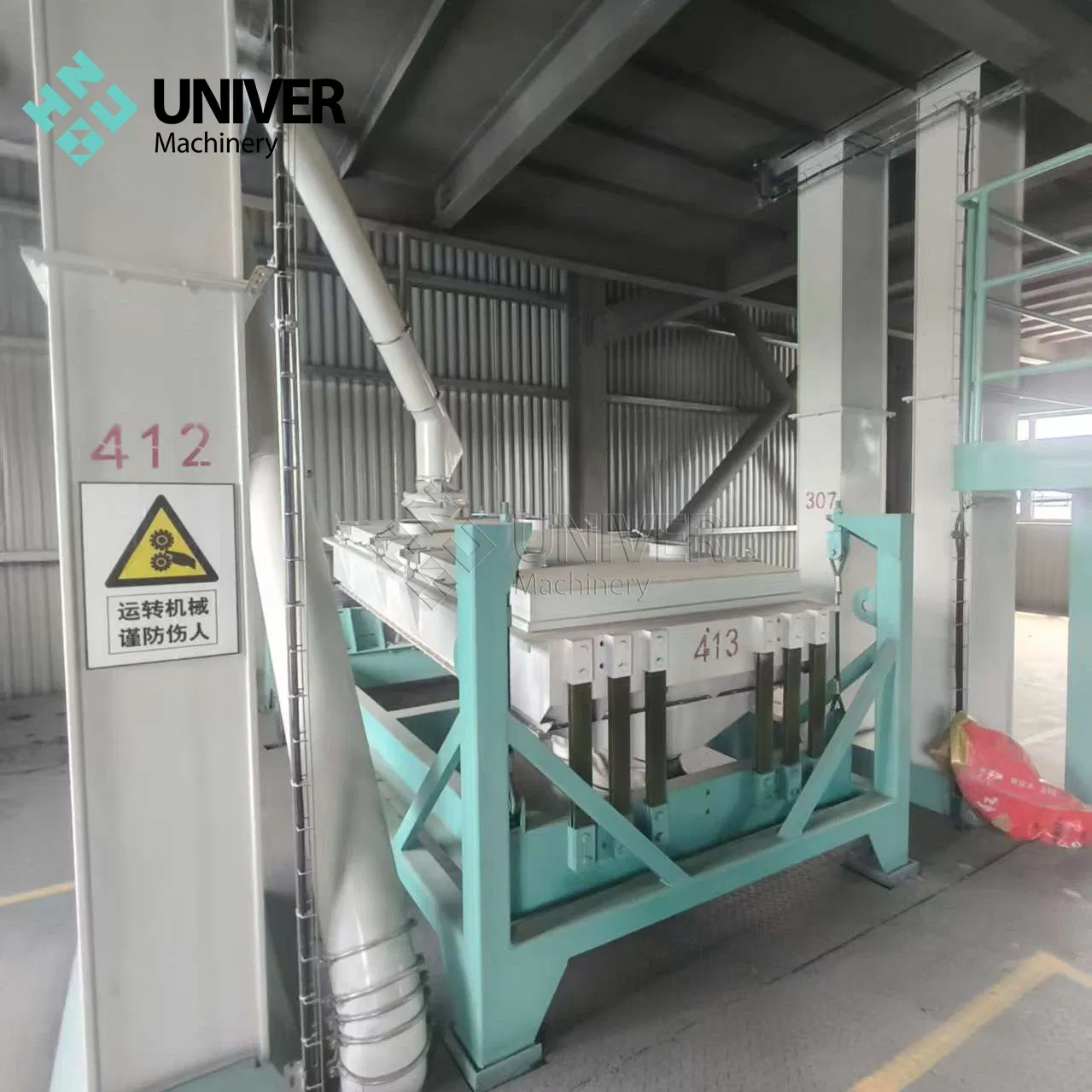

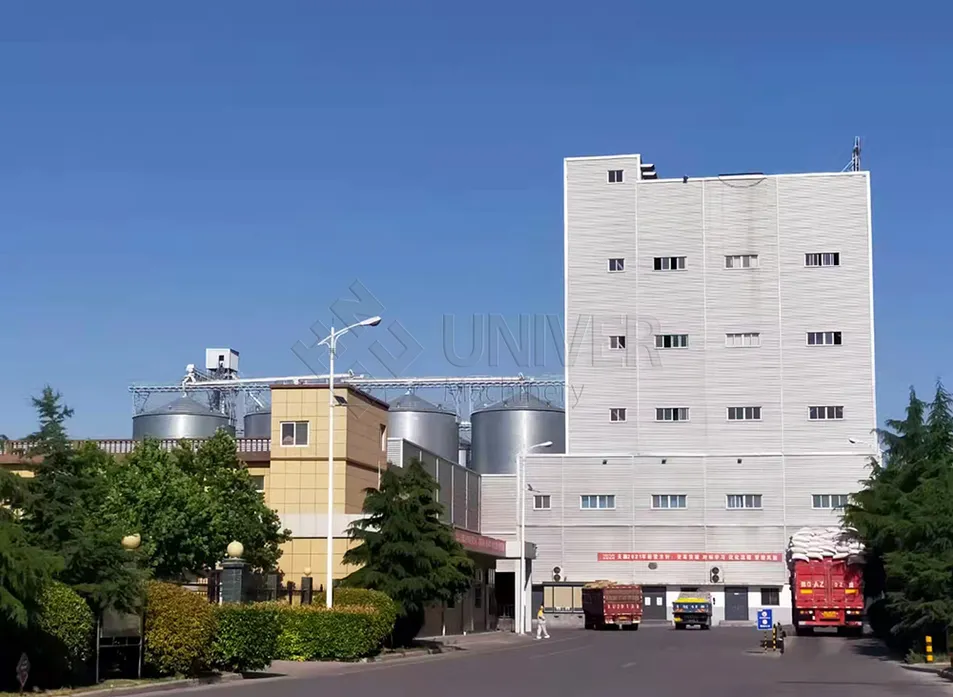

Aquatic Feed Production Line For Shrimp and Crab

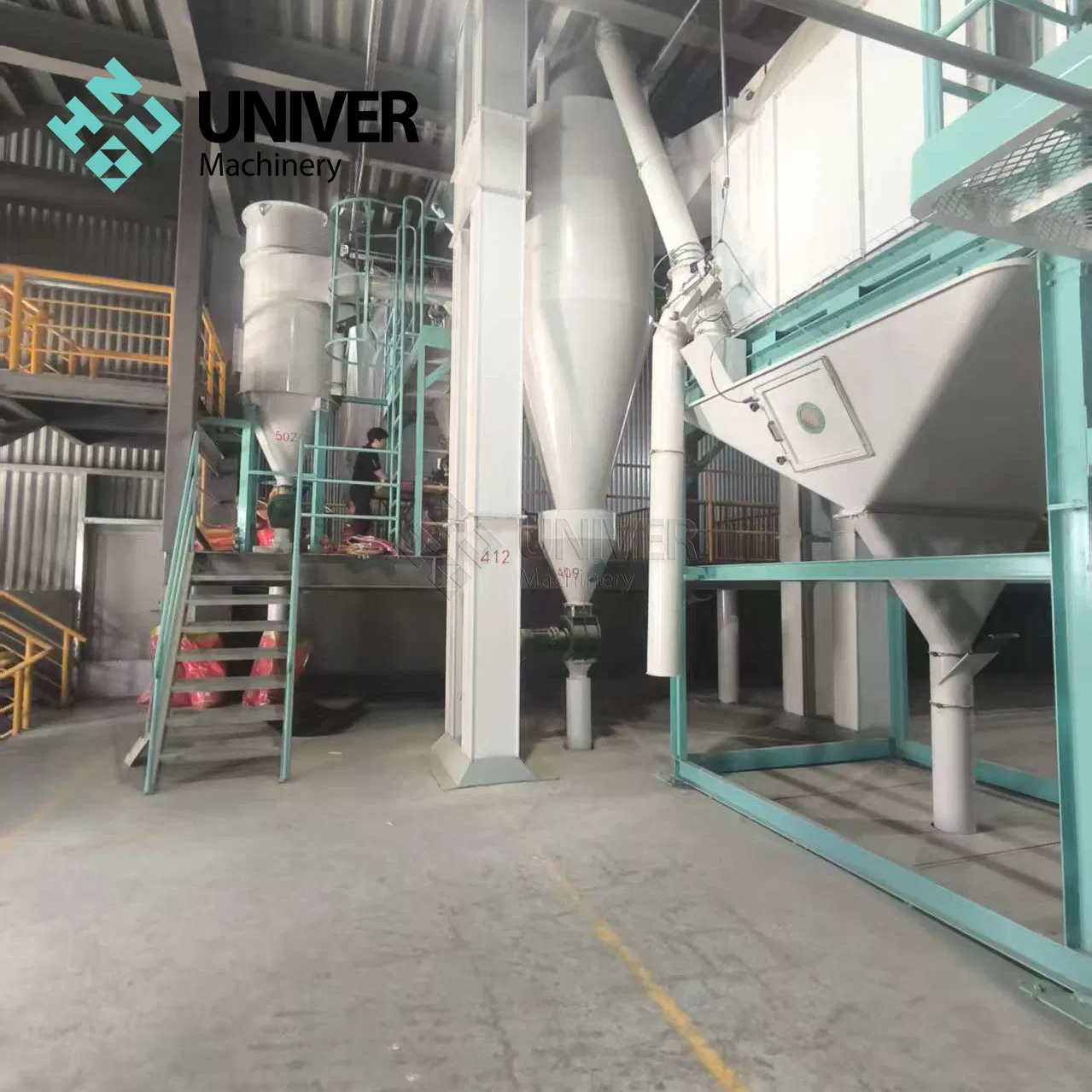

This industrial automatic complete shrimp feed production line is a specialized system designed to manufacture high-quality shrimp feed pellets and crab feed pellets, ensuring optimal nutrition, digestibility, and water stability for aquaculture.
Key Features:
Water Stability: Pellets remain intact in water for hours.
High Nutrition Retention: Controlled extrusion preserves vitamins and proteins.
Customizable Formulations: Adjustable for post-larvae, juveniles, and adults.

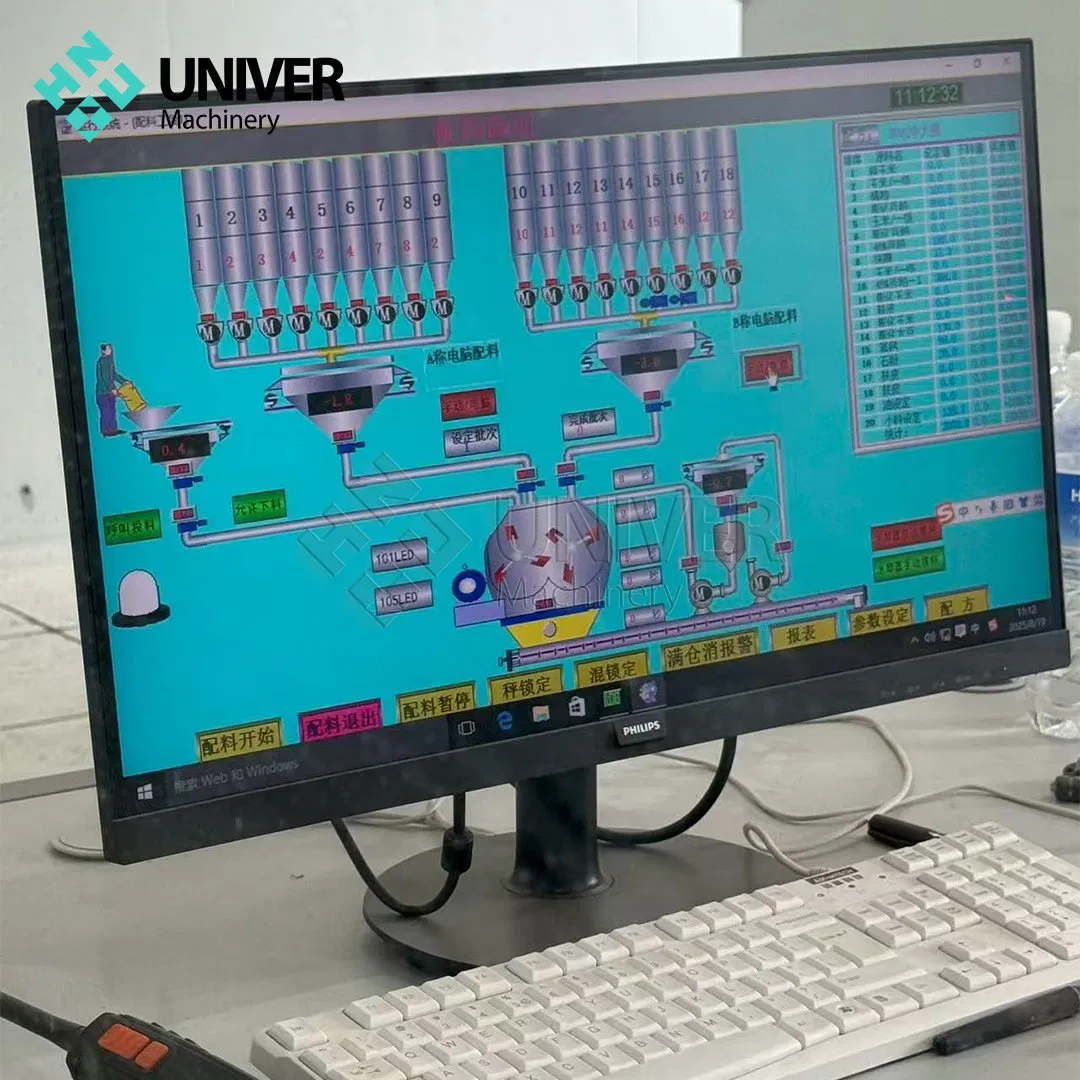

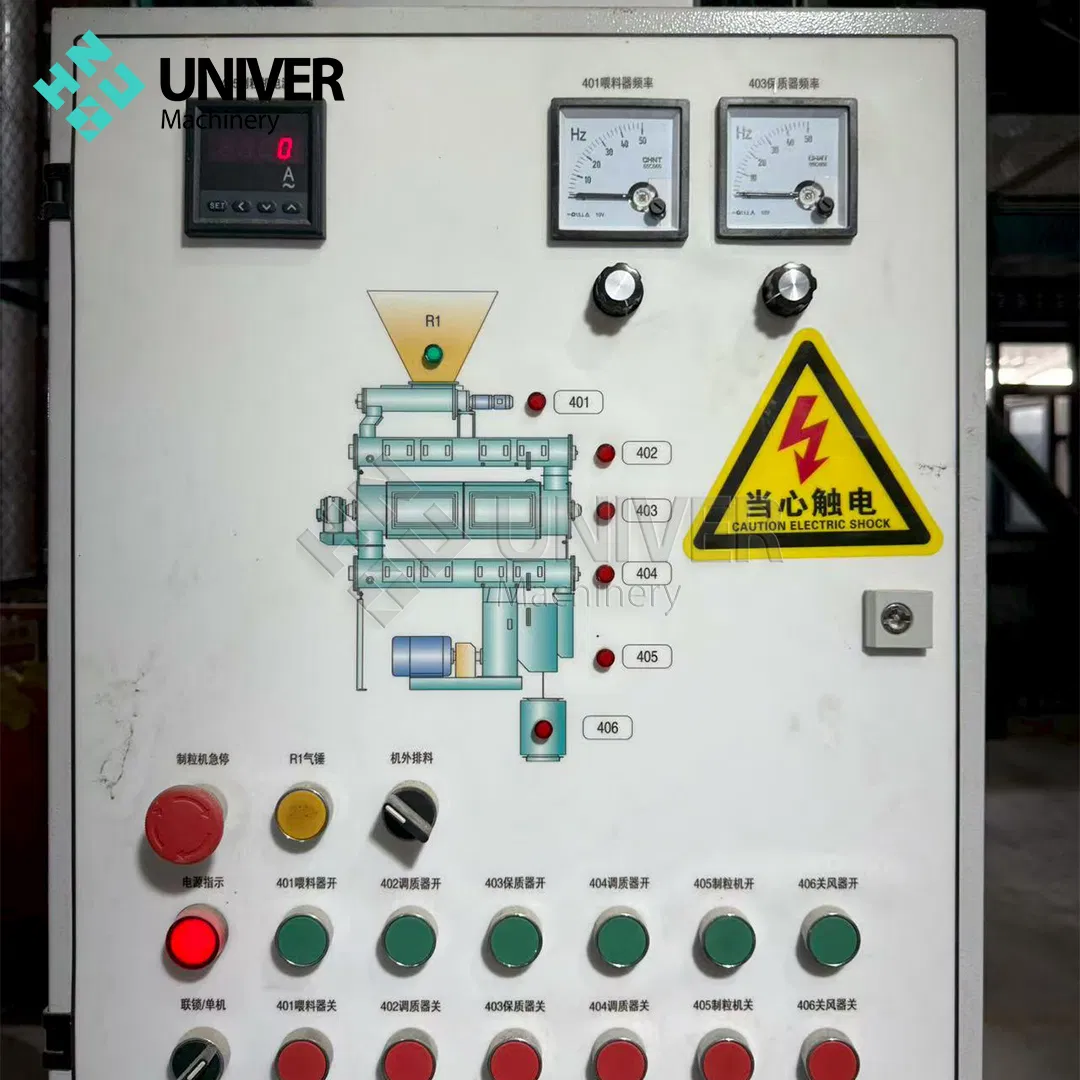

Automation Level: PLC control for high precision.

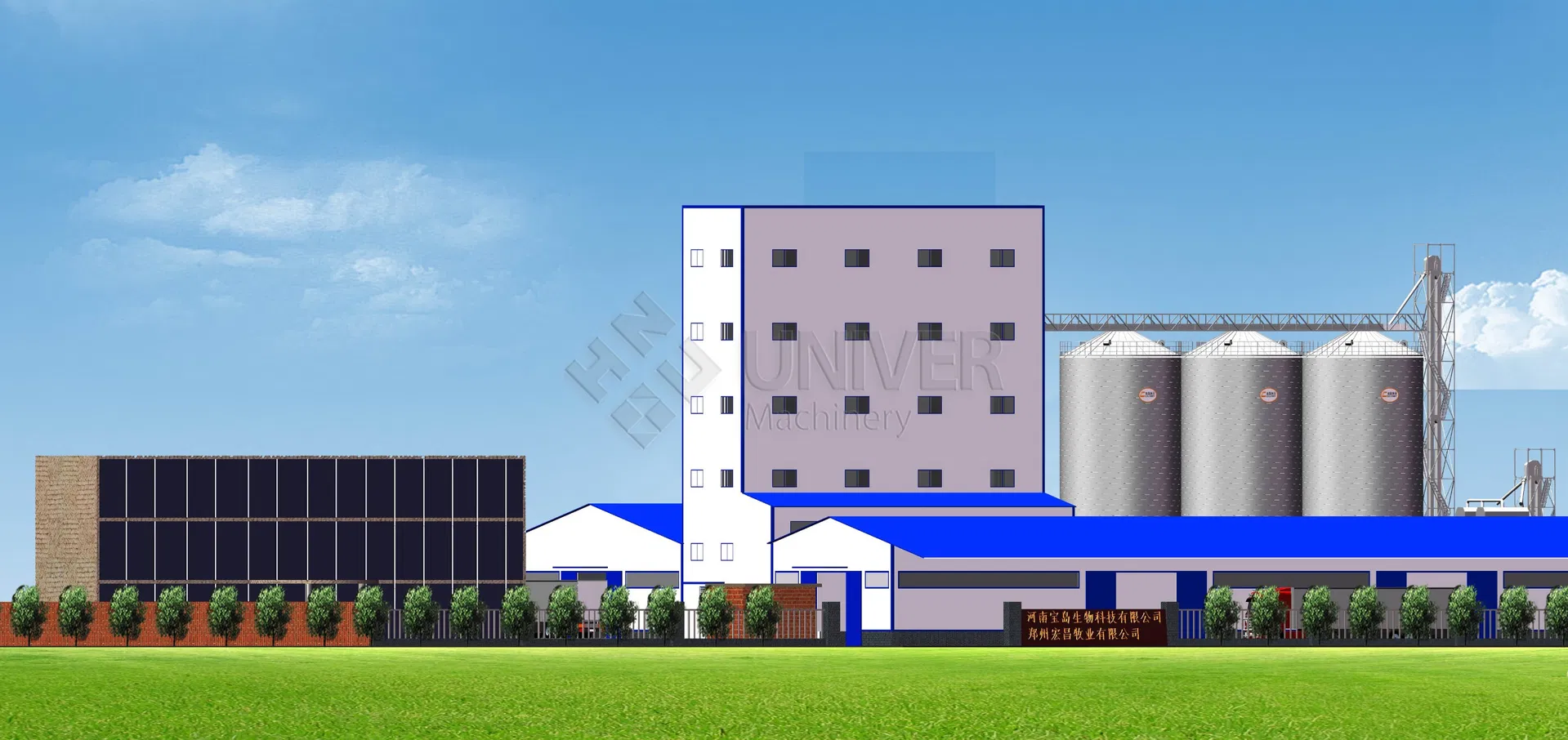

Comprehensive technical services include 1-20tph project layout, process design, equipment manufacturing, installation, commissioning, and technical formulation consultation.
⚙
Raw Materials to Final Pellet
Raw materials can include wheat flour, corn/maize, rice bran, broken rice, sorghum, soya bean meal, fish meal, fish oil, vitamins, and minerals.
Shrimp Feed Pellet Mill
SZLH350
SZLH420
SZLH508
SZLH578
Main Motor power (kw)
55
110
132
200
Ring die Dia (mm)
1.8
1.8
1.8
2
Compression Ratio
1:20~25
1:22~25
1:22~25
1:22~25
Capacity (tph)
1~1.5
1.8~2.5
2.0~3.0
3.0-5.0
✈

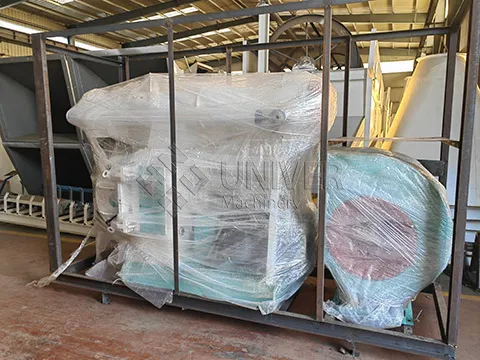

Packaging & Shipping
✔
Global Cooperation & Exhibition
?
Frequently Asked Questions
Can we produce floating and sinking fish feed by the same processing line?
Yes, modern extruders allow switching between floating and sinking feed with minimal adjustments.
Is it possible to combine poultry and fish feed plants in one factory?
Yes, we can combine them. Main machines can be used as common equipment for both poultry and fish feed processing in specific sections.
How should the boiler room and transformer be distributed?
To reduce energy consumption, they should be placed as close to the main workshop as possible, ideally within 50m.
How many staff members are needed to operate the production line?
For an automatic plant, about 7 staff members are needed: 2 for raw materials, 1 for the extruder, 1 for control, and 3 for packing and logistics.
Do you provide guidance for installation and commissioning?
Yes, engineers are sent to guide site installation, commissioning, and staff training.
Can you supply raw material steel silos directly?
Yes, we provide raw material and bulk feed silo solutions that connect directly to the feed plant.
