Product Description
🏗️

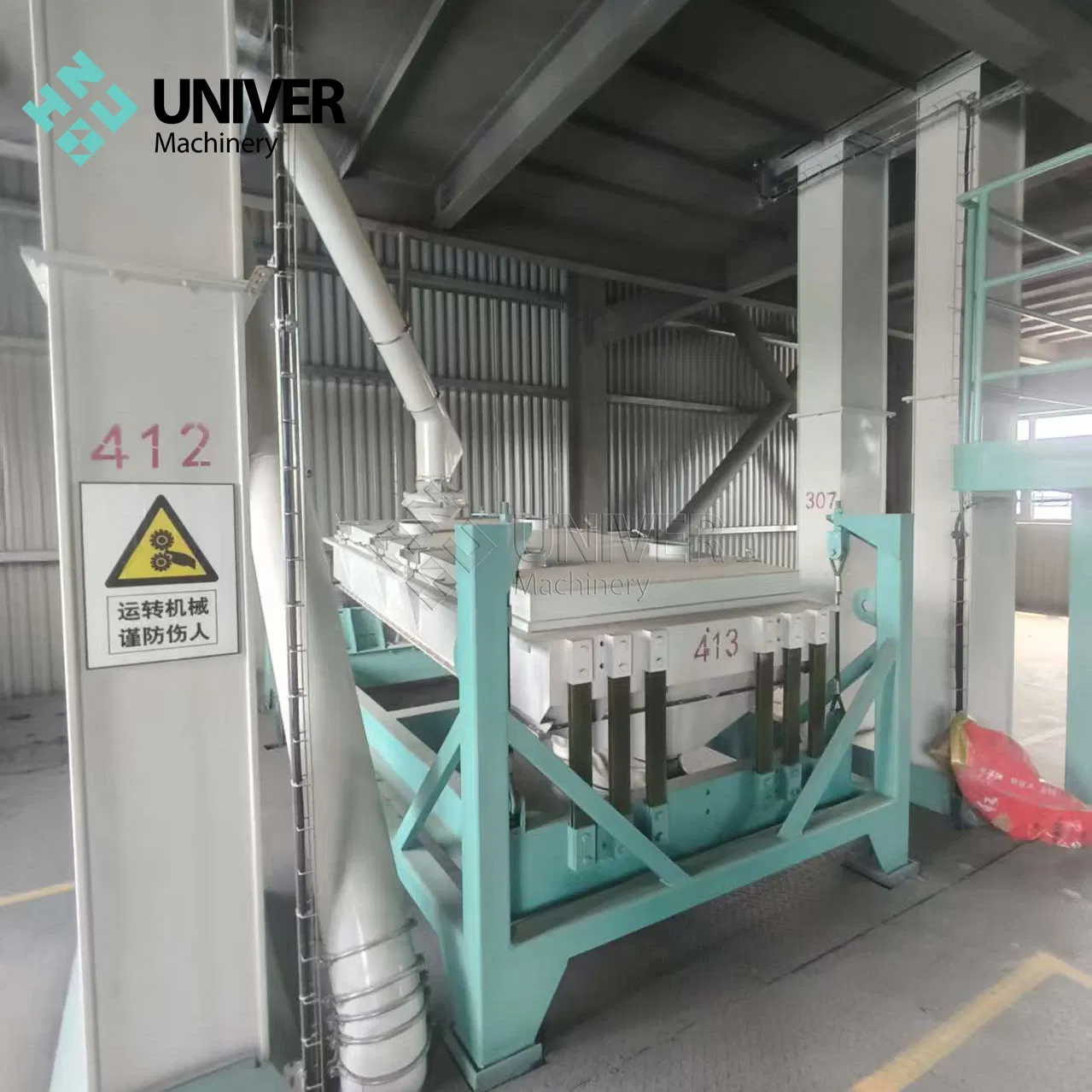

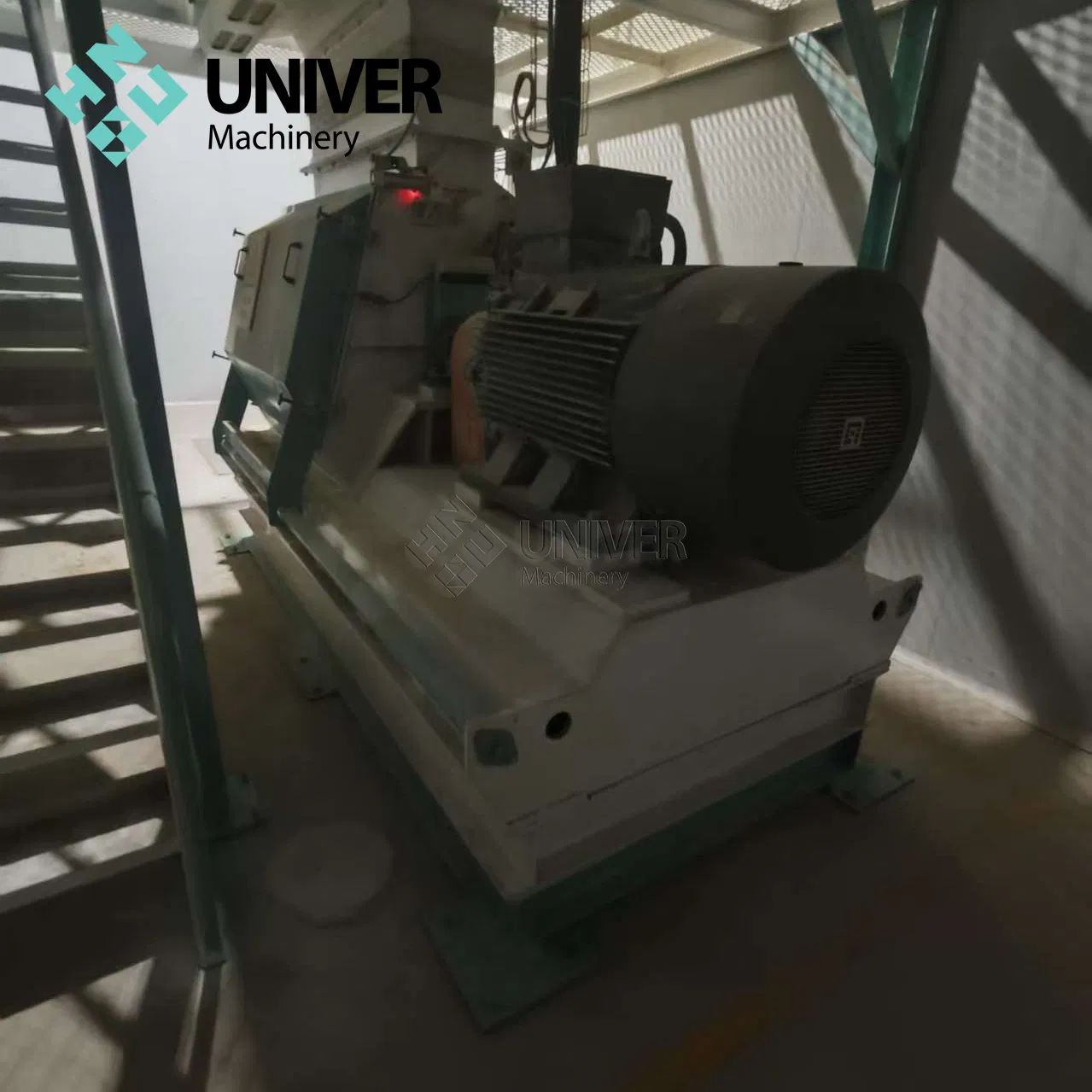

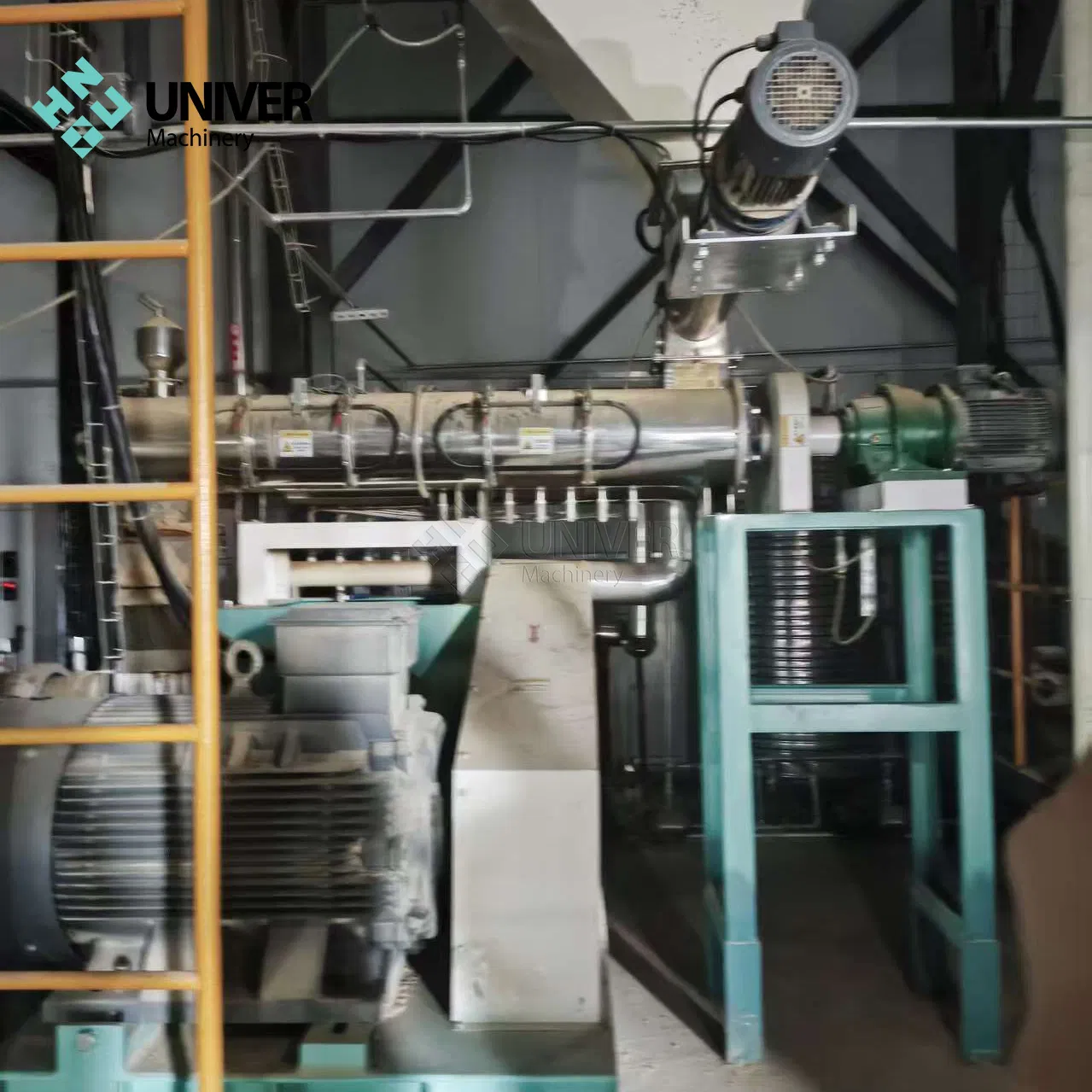

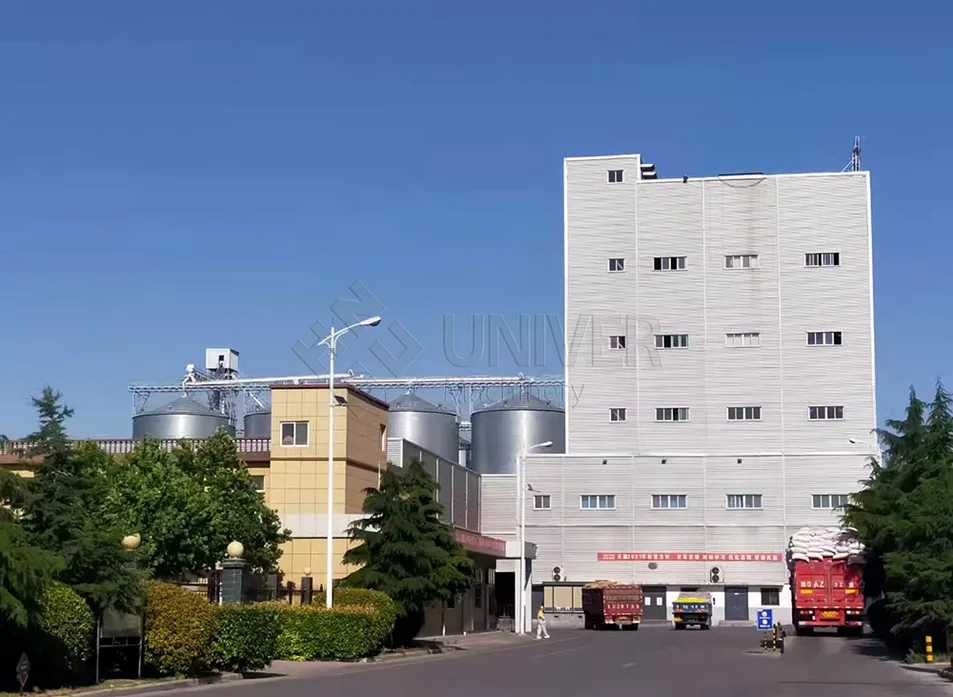

Aquatic Feed Production Line For Shrimp and Crab
Industrial automatic complete shrimp feed production line is a specialized system designed to manufacture high-quality shrimp feed pellets and crab feed pellets, ensuring optimal nutrition, digestibility, and water stability for aquaculture.
🌟 Key Features:
- Water Stability: Pellets remain intact for hours.
- Nutrition Retention: Controlled extrusion preserves vitamins.
- Customizable: Adjustable for different growth stages.
- Automation: PLC control for high precision.

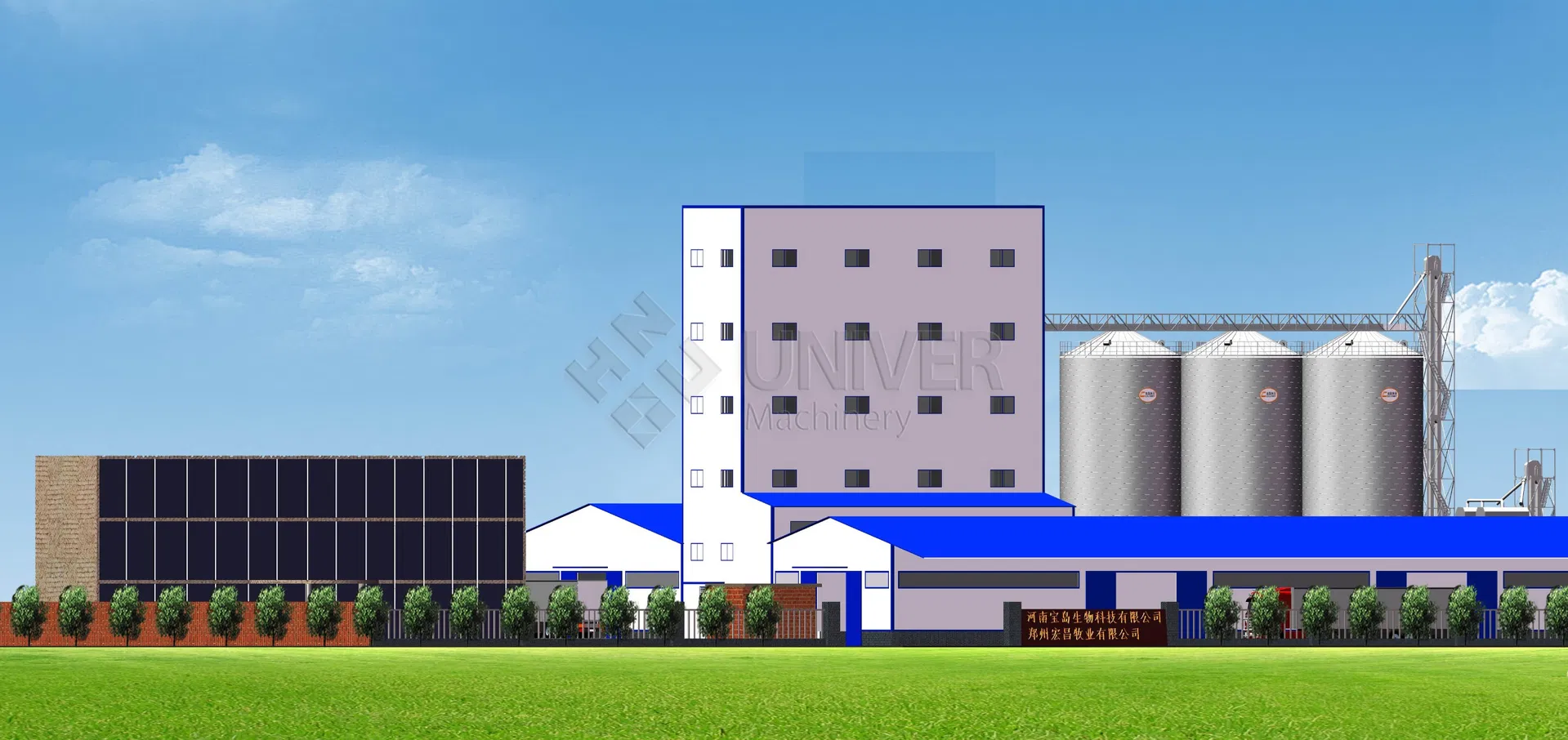

Comprehensive technical services include 1-20tph project layout, process design, equipment manufacturing, installation, commissioning, and technical formulation consultation.

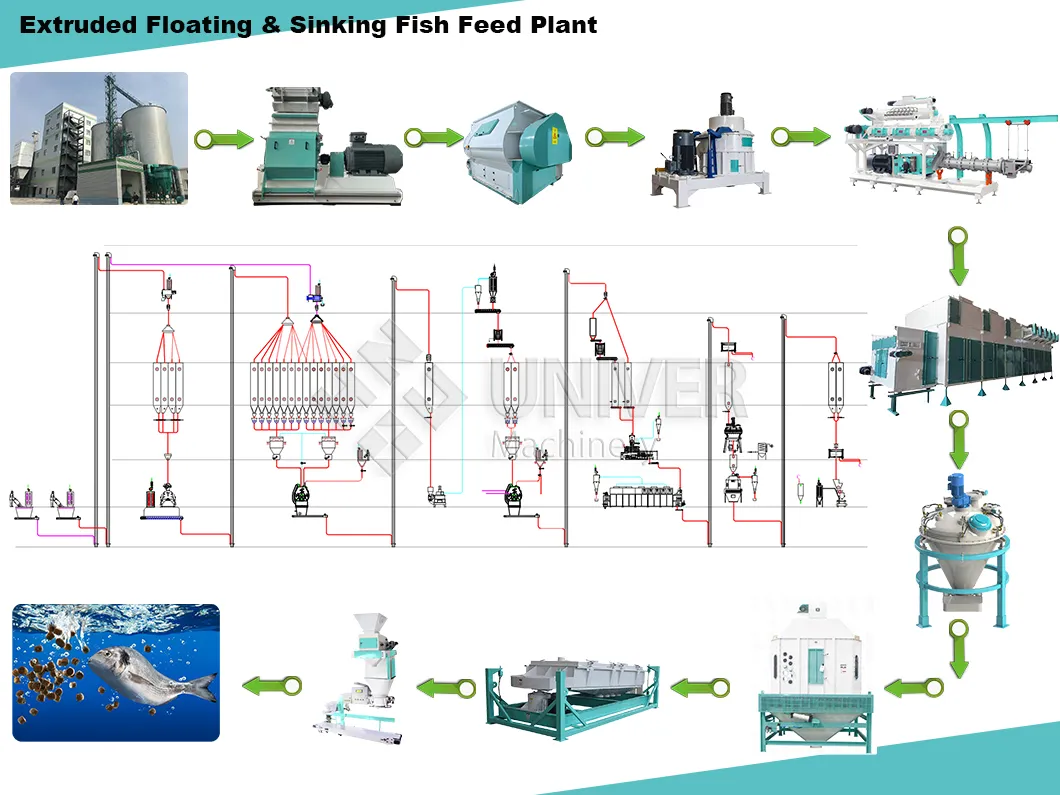

Raw Materials to Final Pellet
Compatible raw materials include: Wheat flour, corn, rice bran, soybean meal, fish meal, meat and bone meal, fish oil, vitamins & minerals, and specialized additives.
Technical Specifications (SZLH Series)
| Model |
Power (kw) |
Ring Die (mm) |
Ratio |
Capacity (tph) |
| SZLH350 | 55 | 1.8 | 1:20~25 | 1.0~1.5 |
| SZLH420 | 110 | 1.8 | 1:22~25 | 1.8~2.5 |
| SZLH508 | 132 | 1.8 | 1:22~25 | 2.0~3.0 |
| SZLH578 | 200 | 2.0 | 1:22~25 | 3.0~5.0 |
Frequently Asked Questions
Can we produce floating and sinking fish feed on the same line?
Yes, modern extruders allow switching between floating and sinking feed with minimal adjustments to the process parameters.
Is it possible to combine poultry and fish feed production in one factory?
Yes, we can design a combined facility where main machinery sections are shared for both poultry and aquatic feed processing to optimize costs.
How should the boiler and transformer be positioned?
To minimize energy loss, both should be placed as close to the main workshop as possible, ideally within a distance of 50 meters.
How many staff members are required to operate the production line?

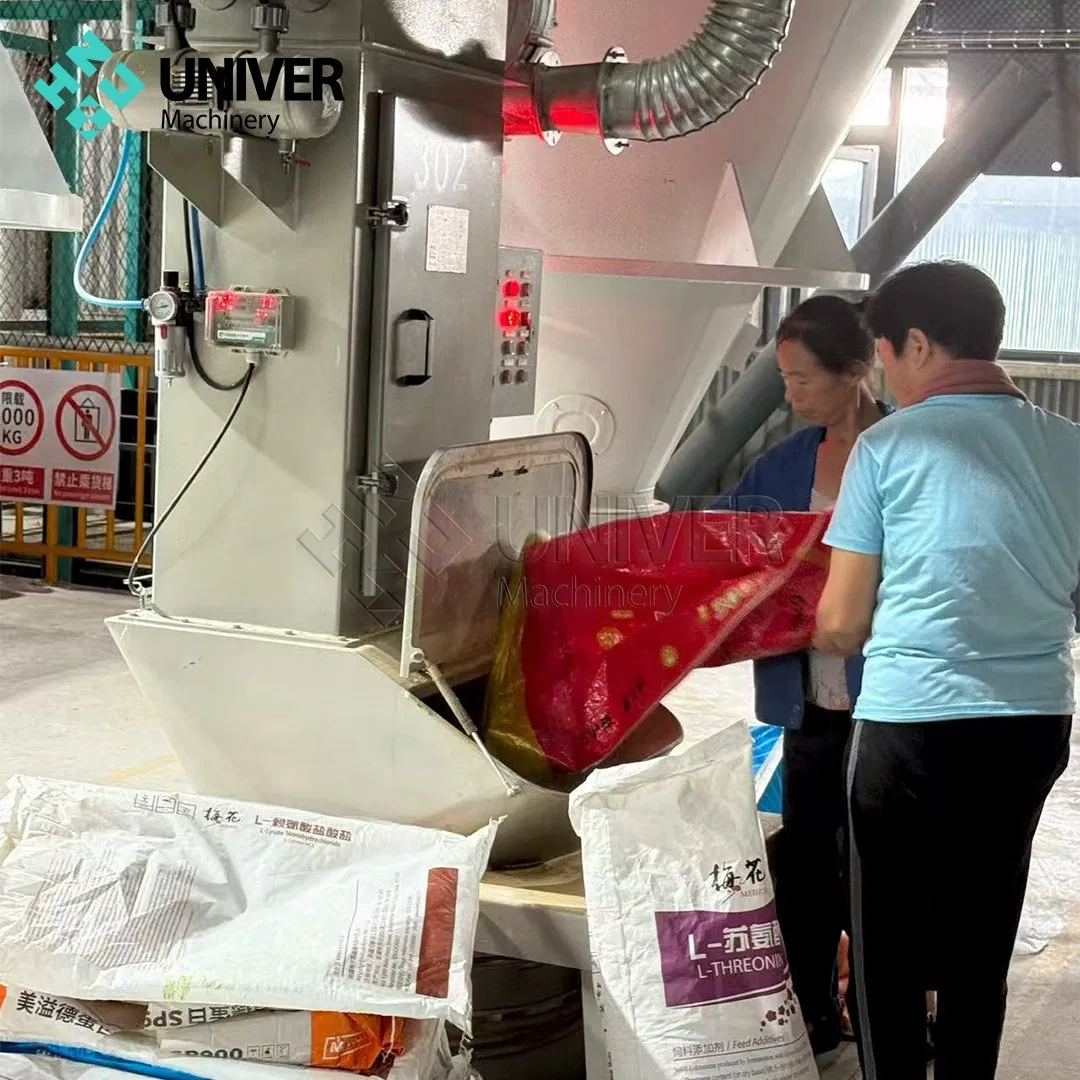

An automatic plant typically requires about 7 staff: 2 for material feeding, 1 for the extruder, 1 for electrical control, and 3 for packing and logistics.
Do you provide on-site installation and training?
Yes, we send professional engineers to guide the installation and commissioning at your site, while providing comprehensive staff training.
What is the benefit of simultaneous equipment and steel frame installation?
Simultaneous installation facilitates coordinated construction, ensures the project schedule is met, and avoids structural conflicts later.
