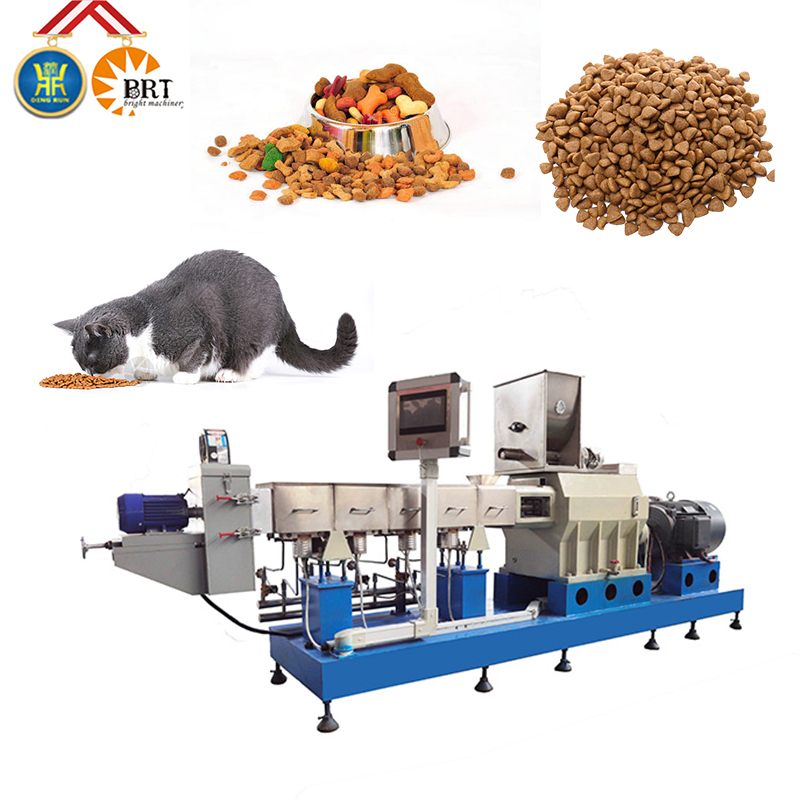

Twin Screw Extruder Fish Croquette Shrimp Fish Feed Food Extrusion Machine

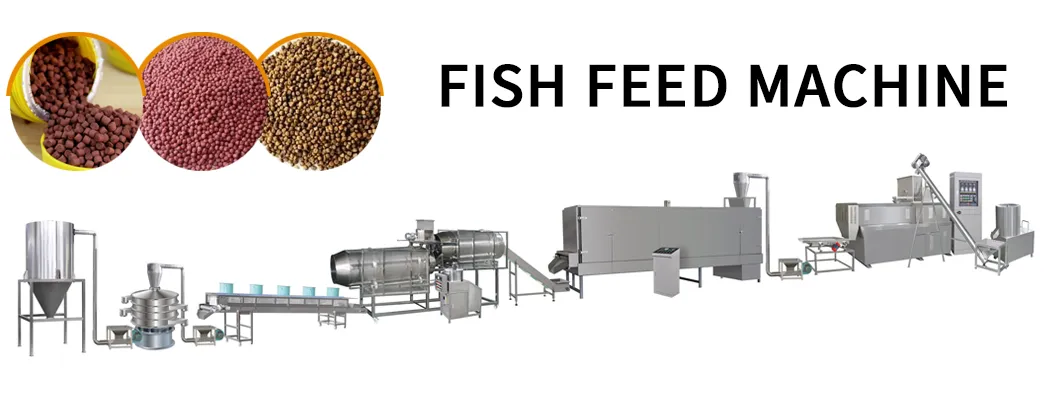

The fish feed making machine and inflating production line can produce both floating and sinking feed pellets for fish, shrimp, crab, etc. According to different varieties and ages, the feed type and sizes vary (range 2-12 mm) by adjusting temperature, moisture, formulation, and changing moulds.

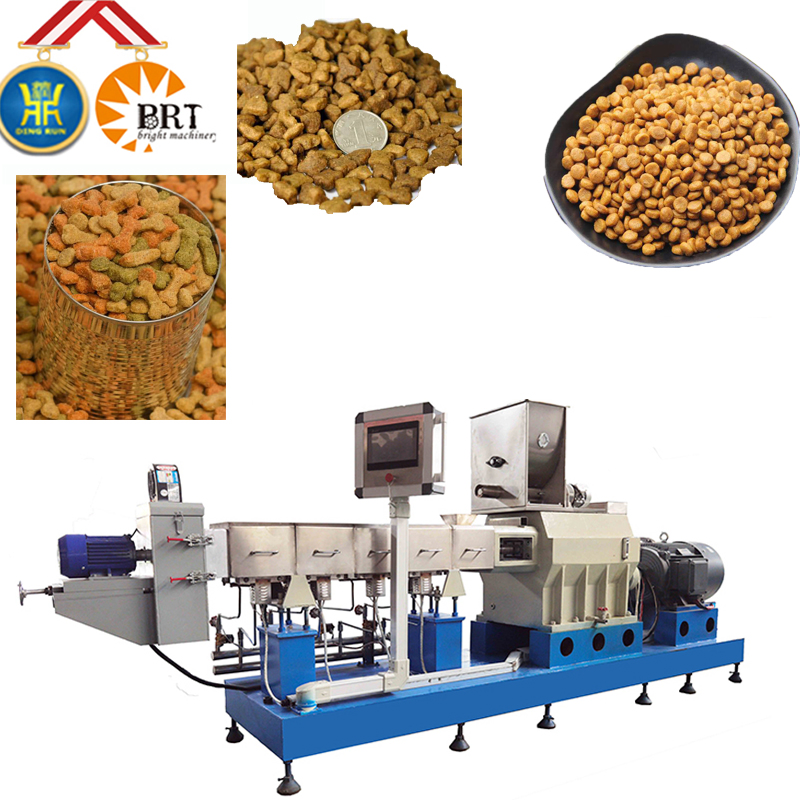

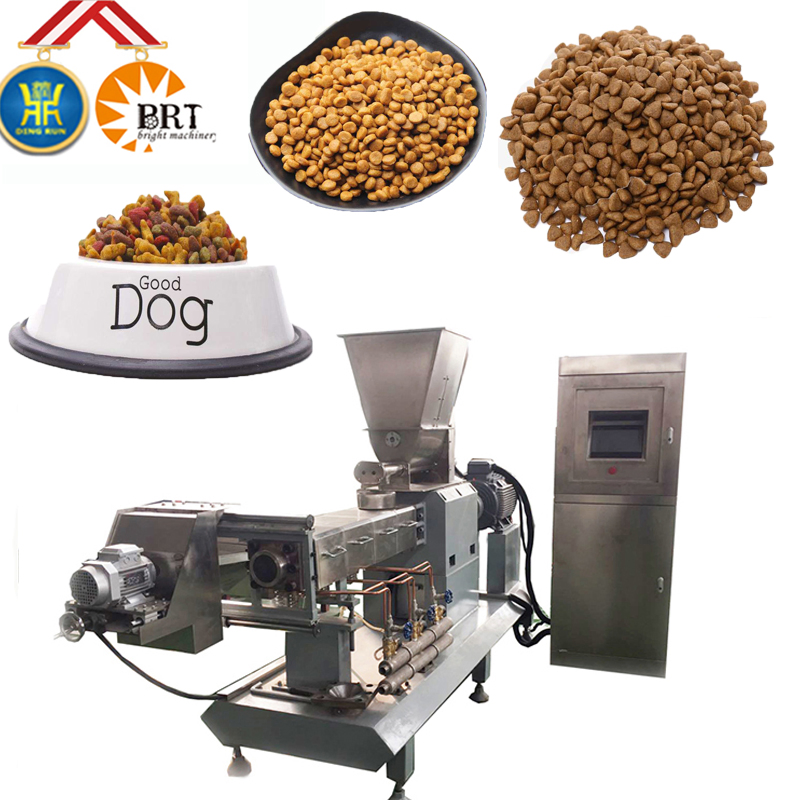

This equipment is also versatile for dry pet food production, including dog food, cat food, bird feed, and monkey food.
Product Samples:
Most fish feed pellets include animal and plant proteins. Plant protein sources include corn flour, rice flour, wheat flour, soybean flour, and peanut cake powder. Animal proteins include fish meal, shrimp meal, crab meal, and sleeve-fish meal. Fresh fish, bone, and high-fat materials can also be added.
| Model | Installed Power | Consumption | Output | Size (m) |
|---|---|---|---|---|
| DSE - 65 | 74 kw | 52 kw | 140-160 kg/hr | 17x1.3x2.2 |
| DSE - 70/75 | 105 kw | 75 kw | 240-350 kg/hr | 20x1.5x2.2 |
| DSE - 85 | 205 kw | 150 kw | 500-600 kg/hr | 30x1.5x2.6 |
| DSE - 90 | 132 kw | 75 kw | 800-1200 kg/hr | 35x2.5x3.8 |
| DSE - 95 | 165 kw | 90 kw | 1500-2000 kg/hr | 40x3.5x4.5 |
| DSE - 130 | 280 kw | 132 kw | 3000-3500 kg/hr | 45x4.5x6.0 |
Voltage Configuration: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can customize according to local voltage requirements.

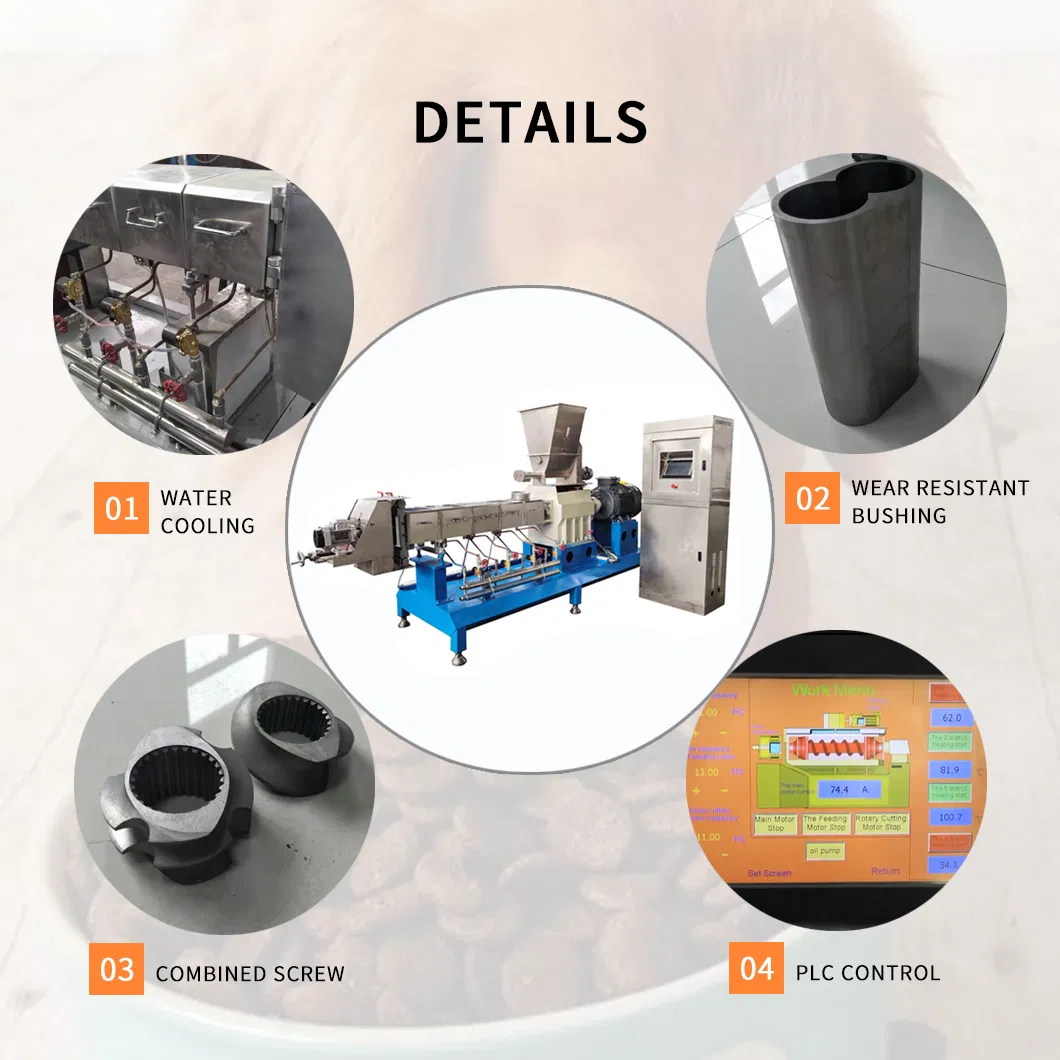

Machine Construction: All extruders are made of stainless steel with a high degree of automation. Screws are made of alloy steel with a self-cleaning function. Features a water cooling system and PLC control for long-term stable operation.
