Basic Specifications
Model NO.:TSE65; TSE70; TSE85; TSE95; TSE120
Processing Technics:Mixing-before-Crushing
Equipment Type:Feed Hammer Mill / Pressing Granulator
Bulking Machine:Twin Screw Bulking Machine
Expanding Method:Wet Expansion
Warranty:12 Months
Application:Fish, Dog, Pet, Bird, Poultry, Catfish
Output Capacity:100kg/h - 2ton/h
Material:Stainless Steel
Certification:CE; ISO9001
Product Description
⚙️

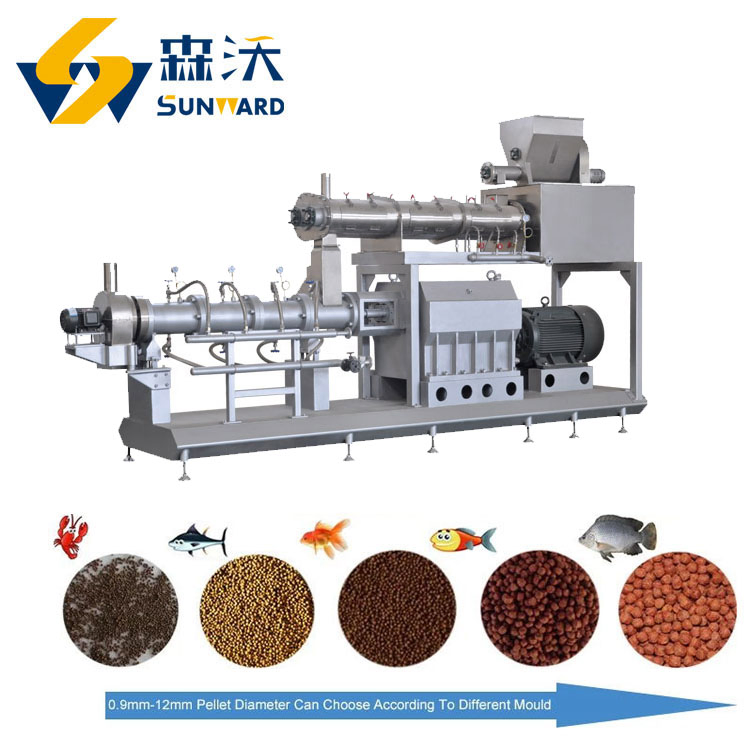

Capacity 1 ton/h Aquaculture floating and sinking fish feed processing machine extruder equipment plant line
This dry floating and sinking fish feed processing machine is designed to produce high-quality pet food and aquatic feed. With an automated control system, it ensures precise parameters such as temperature, pressure, and moisture for optimal product results. The versatile design allows for various shapes and tastes to meet specific nutritional requirements.

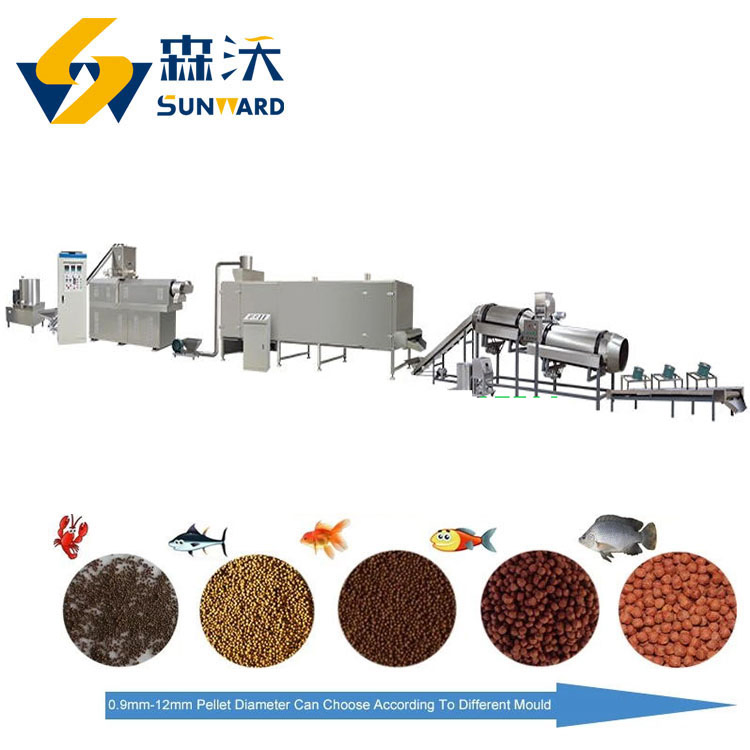

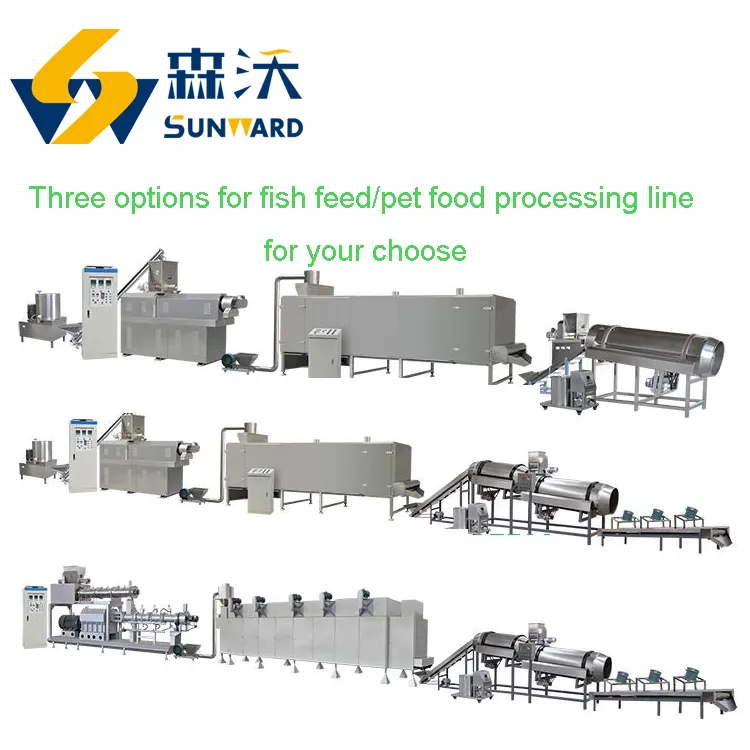

Processing Line Flow
🔄
Mixer → Screw Conveyor → Twin-screw Extruder → Air Conveyor → Dryer → Flavoring Line → Cooling Machine
Technical Parameters
| Model |
TSE-65-III |
TSE-70 |
TSE-85 |
| Installed Capacity (kw) |
70 |
105 |
205 |
| Real Power (kw/h) |
50 |
75 |
150 |
| Output (kg/h) |
100-150 |
200-260 |
400-500 |
| Dimension (mm) |
17000*1300*2200 |
20000*1500*2200 |
30000*1500*2600 |

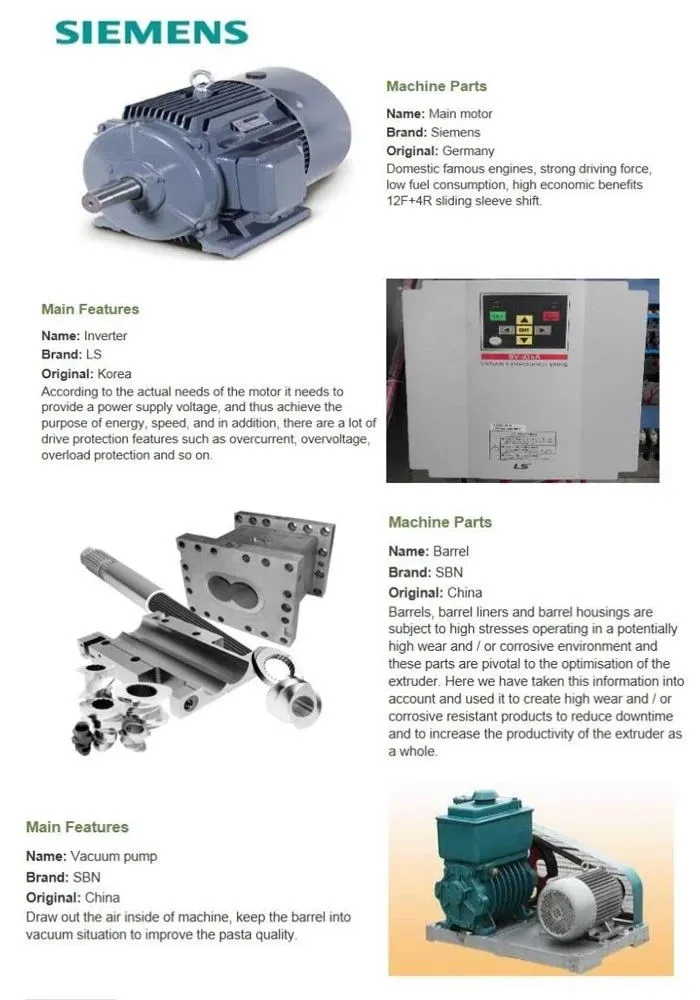

Key Machine Components
🔩

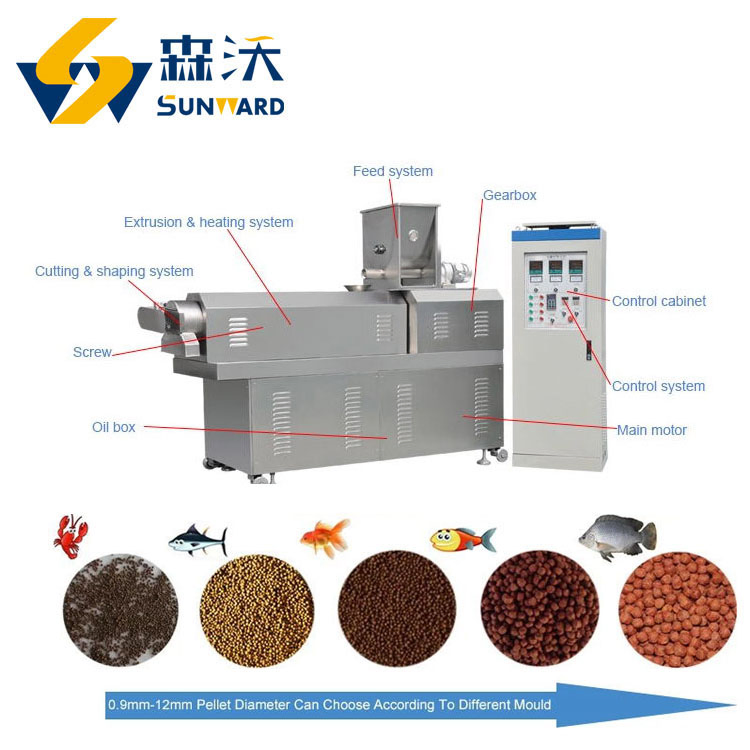

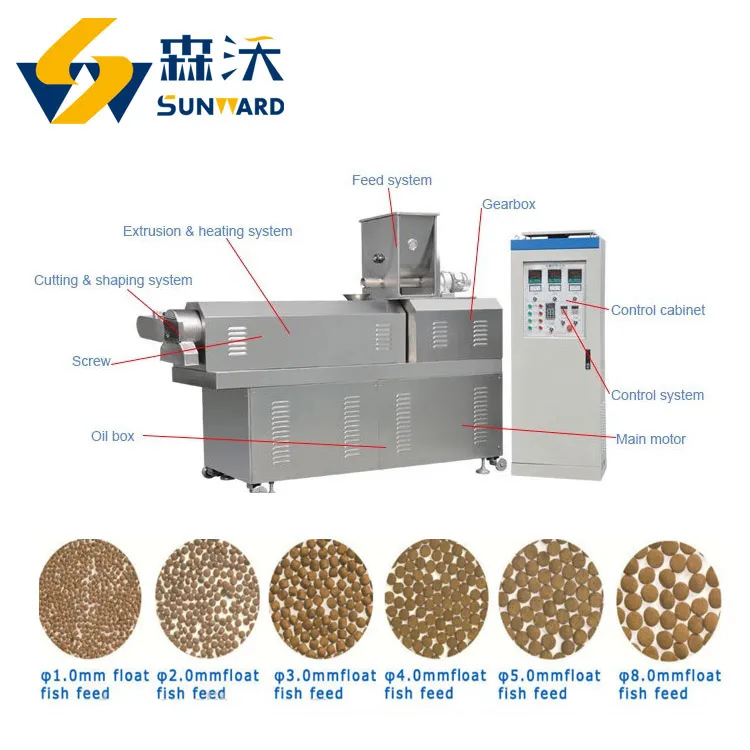

2.1 Twin Screw Extruder
- Frequency speed controlling with high automation.
- Stainless steel screws for durability and high pressure.
- Forced lubrication system for longer transmission life.
- Auto-temperature control and self-cleaning function.
🔥

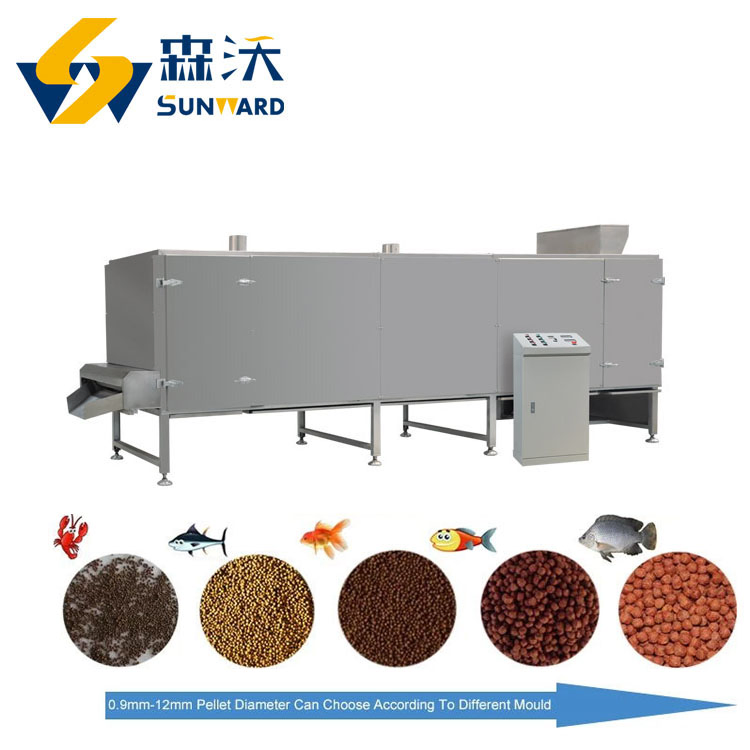

2.2 Multi-layer Dryer
- Available in Electric, Gas, or Fuel heating options.
- Stainless steel mesh belts and insulation boards.
- Adjustable conveyor speed for precise drying time.
- Compact design with high thermal efficiency.
🧂

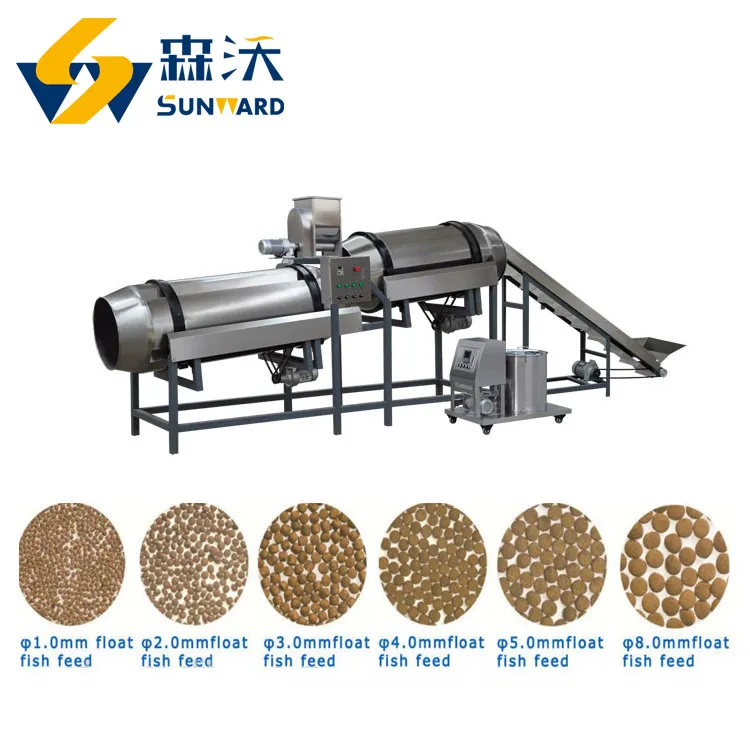

2.3 Flavoring Line
- Precision oil spraying system.
- Stainless steel sanitary design for food contact.
- Rotating drum ensures even seasoning distribution.

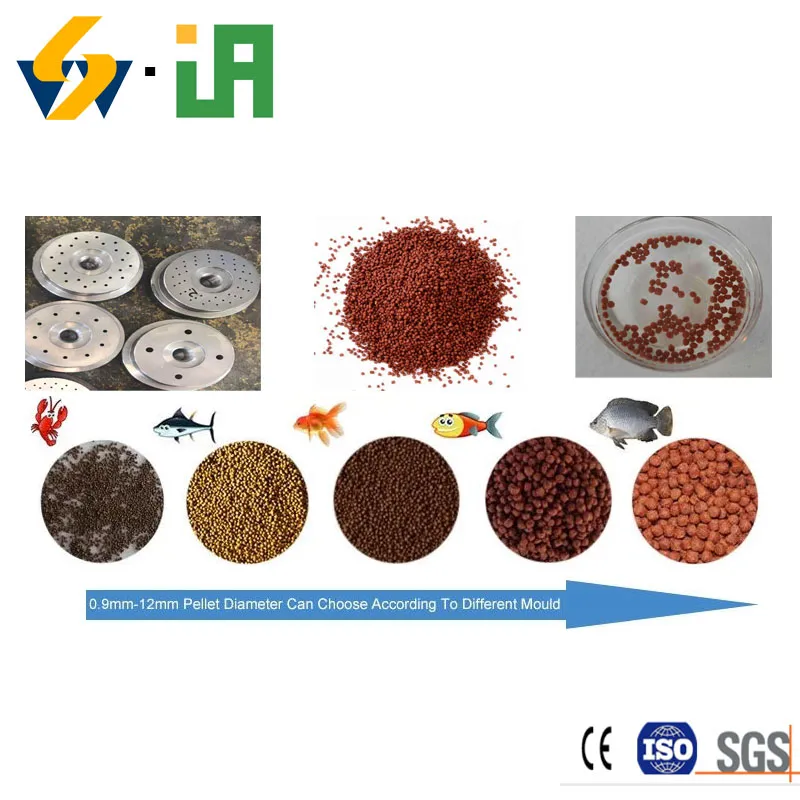

Product Samples & Factory View
Packaging & Shipping
📦
All machines undergo rigorous testing before dispatch. We use plastic film for internal moisture protection and sturdy wooden cases for external export security. Shipping typically occurs within 15-35 working days.
Frequently Asked Questions
What are the available capacities for your fish feed machines?
We offer a wide range of production capacities to suit different needs, including 100-150 kg/h, 200-250 kg/h, 300-500 kg/h, and larger industrial lines producing 1-2 tons per hour.
Can the machine produce both floating and sinking feed?
Yes, by adjusting the formula and the extruder parameters (such as temperature and screw speed), the same processing line can produce both floating and sinking fish feed.
What kind of after-sale support do you provide?
We provide a comprehensive after-sale service, including an allocation chart, operation manuals, one-year warranty, and on-site engineering for installation and worker training.
What raw materials can be used with this extruder?
The system is highly adaptable and can process corn powder, rice powder, wheat flour, meat meal, bone meal, and various oils and water-based mixtures.
Is it possible to customize the machine voltage?
Absolutely. While our standard is 380V/50Hz for three phases, we can customize the electrical components to match the local voltage requirements of your country.
How do you handle wearing parts?
We provide a set of easy-to-wear spare parts for free with every container. Additionally, we offer lifelong supply of spare parts at cost price and provide video guides for replacement.
