Production capacity ranges from 100kg per hour to 5 ton per hour. Customization accepted. Engineering design for machine layout and processing flowchart drawings are available according to your factory requirements.
✔Small floor area and flexible placement.
✔Easy operation and low energy consumption.
✔Large output with various grain compatibility.
✔Customizable molds for different product shapes.

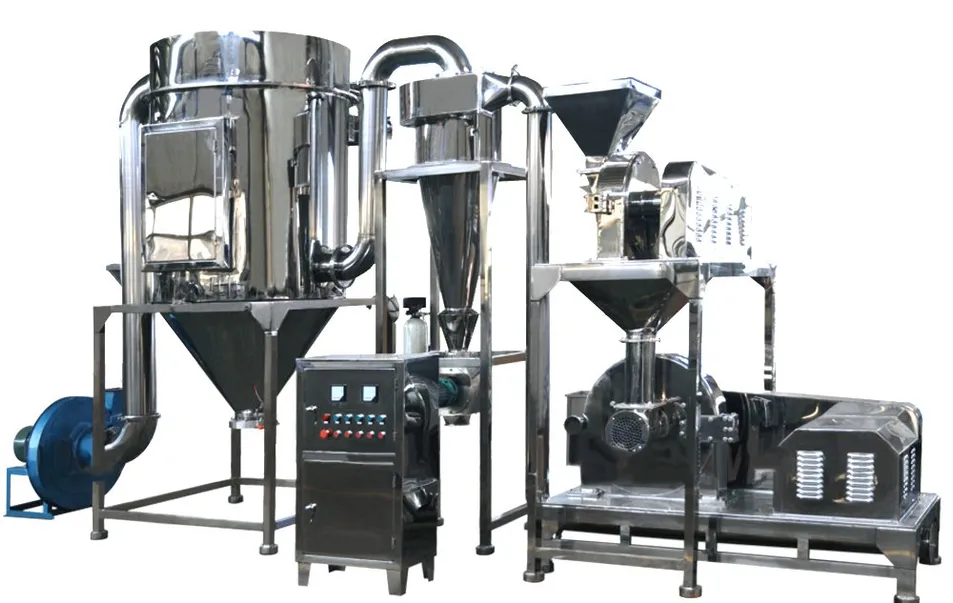

Includes main unit, cyclone discharge, dust collector, and control panel. Features an auger feeder with speed control and efficient cleaning devices.

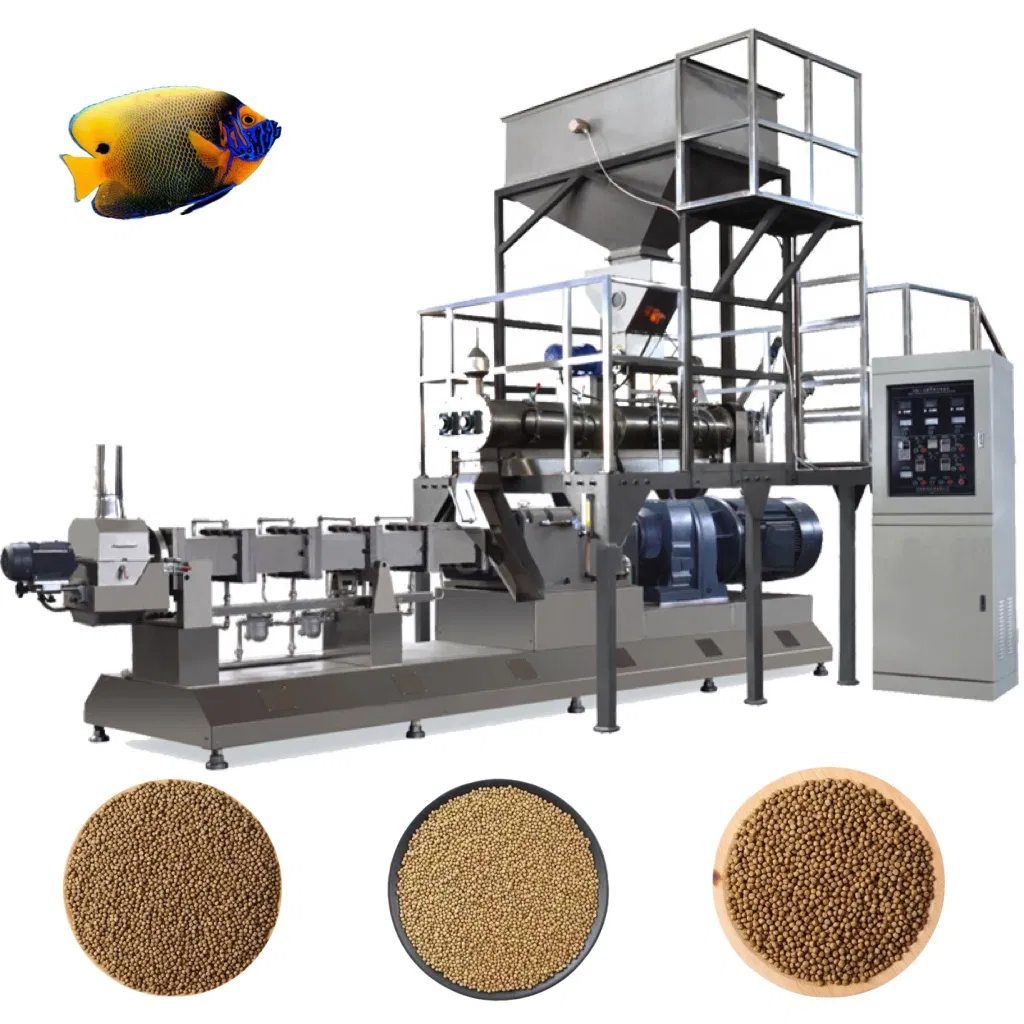

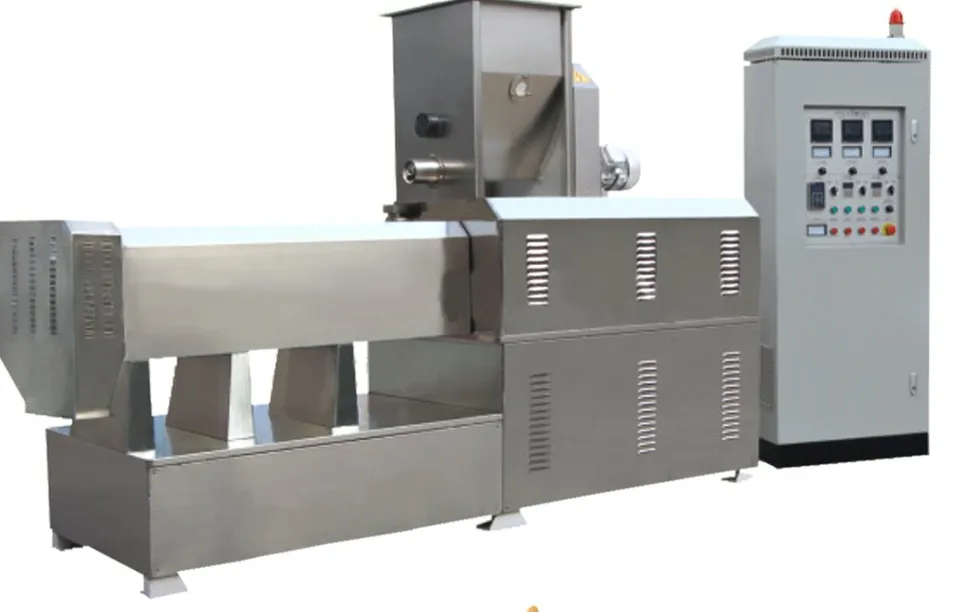

Composed of gearbox, lubrication system, barrel, double screw, and heating/cooling systems. Process raw materials under high temperature and pressure.
1. High-strength cabinet for stability.
2. Alloy twin screws, easy to clean.
3. Rotary straight cutting for easy adjustments.
4. High-quality main motor for long life.

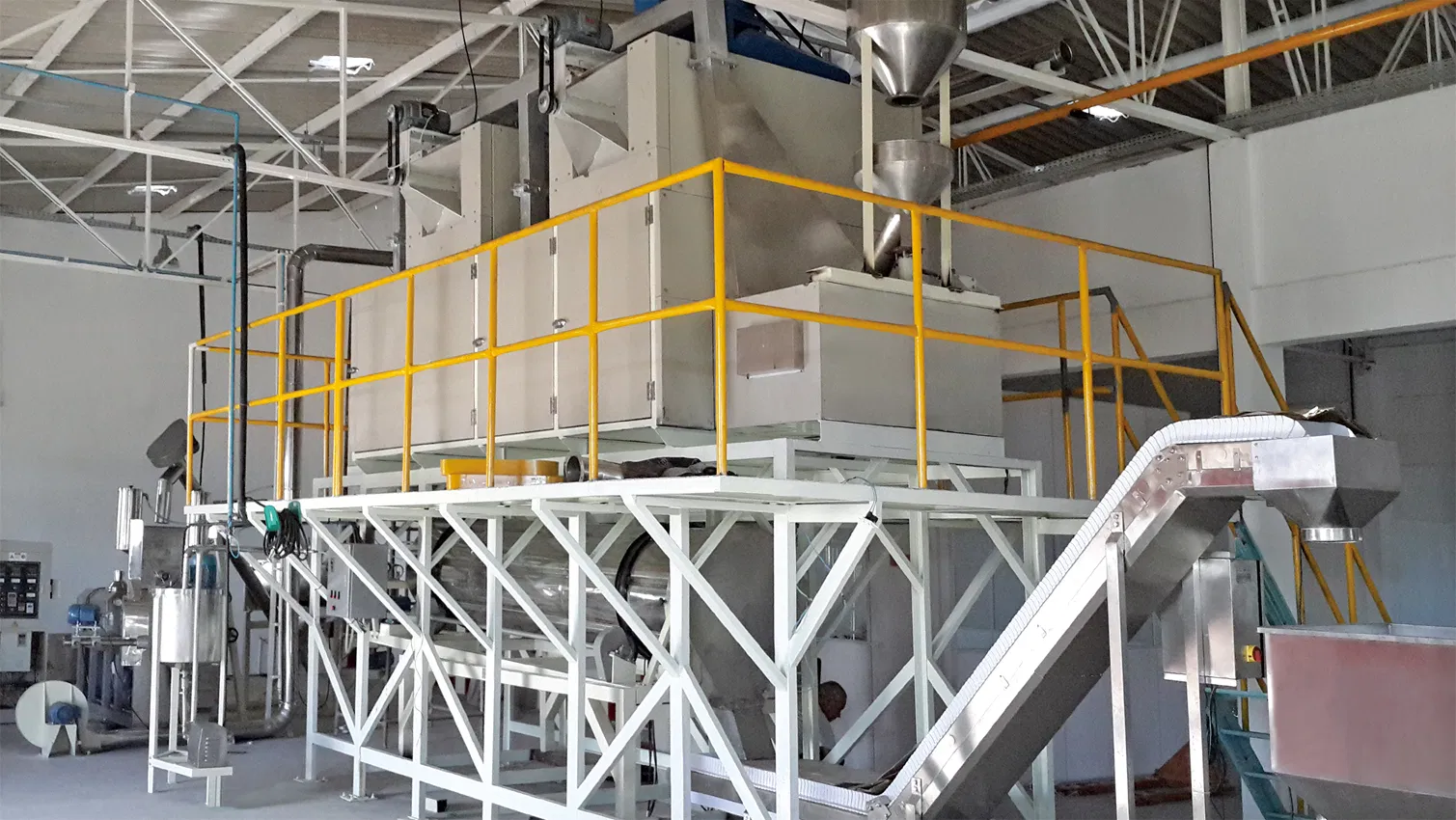

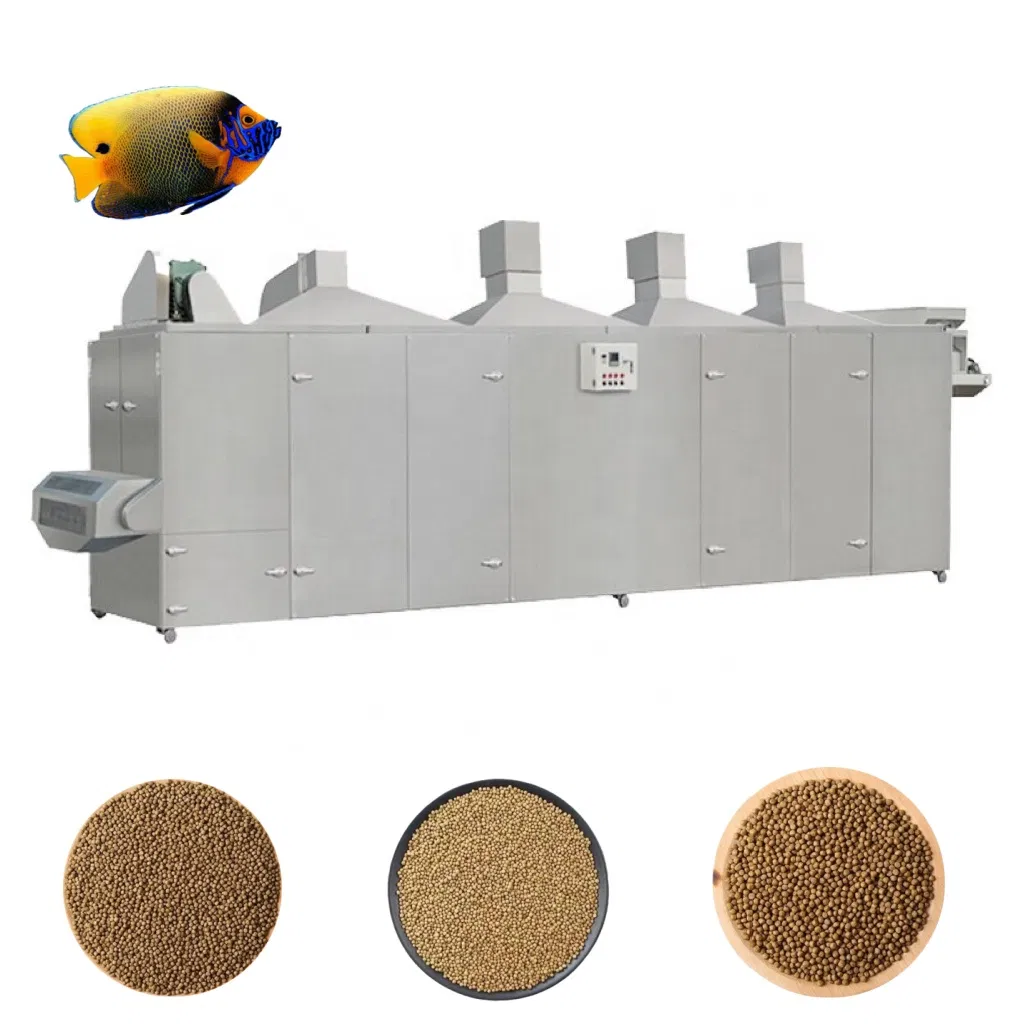

Heating sources include electric, gas, or steam. Constructed with stainless steel 304. Effectively removes moisture post-extrusion.

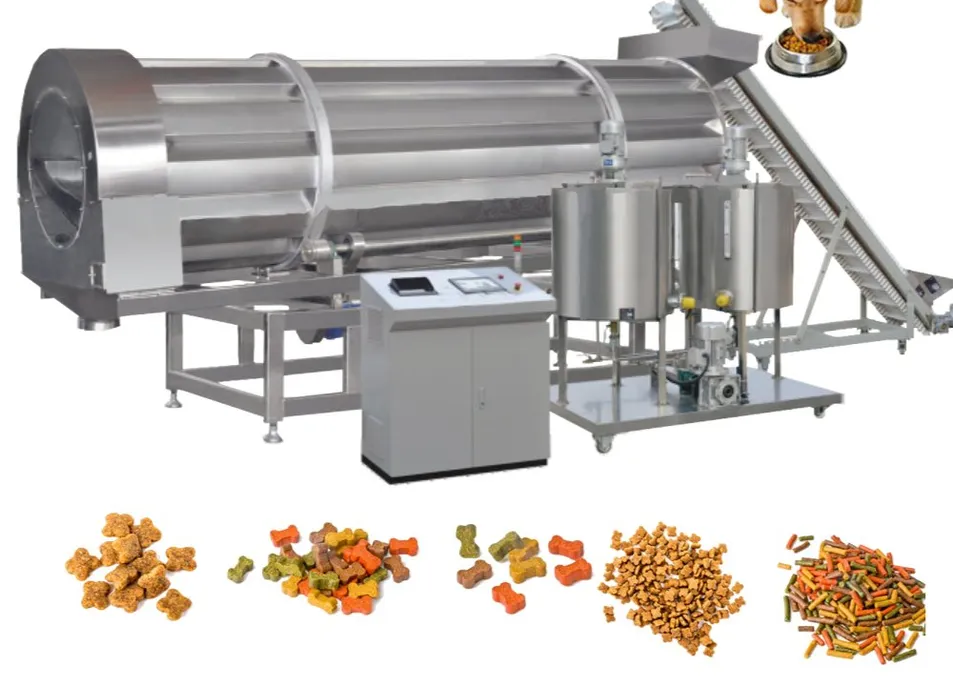

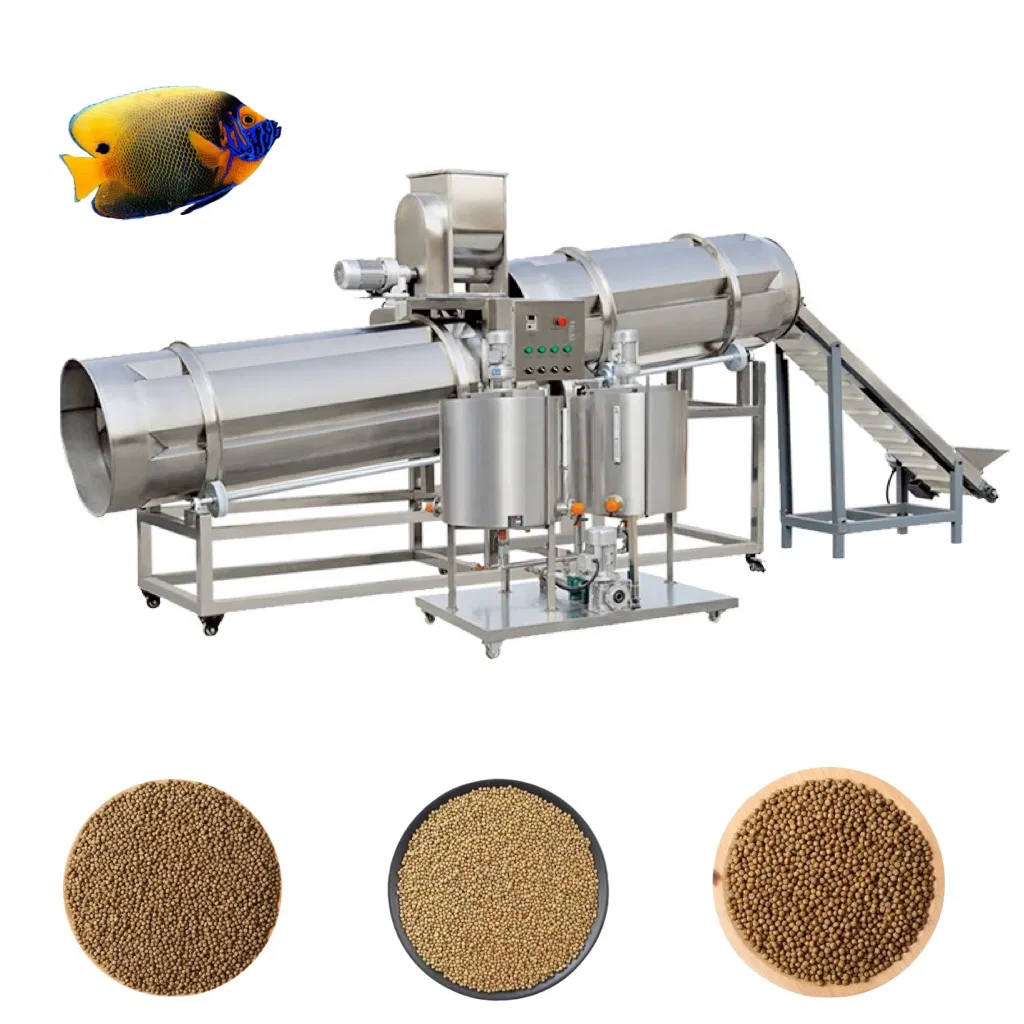

Consists of double roller tumblers and oil sprayer. Ensures equal distribution of oil and flavoring powders on pet food.

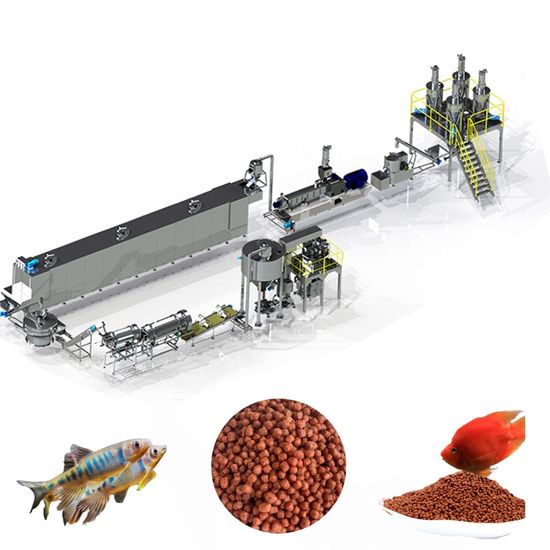

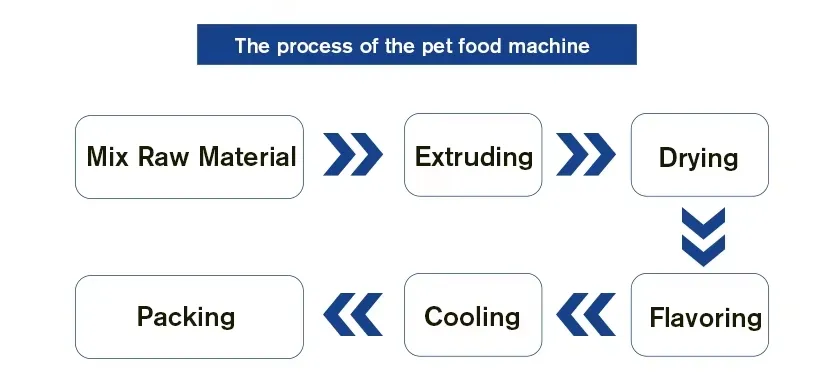

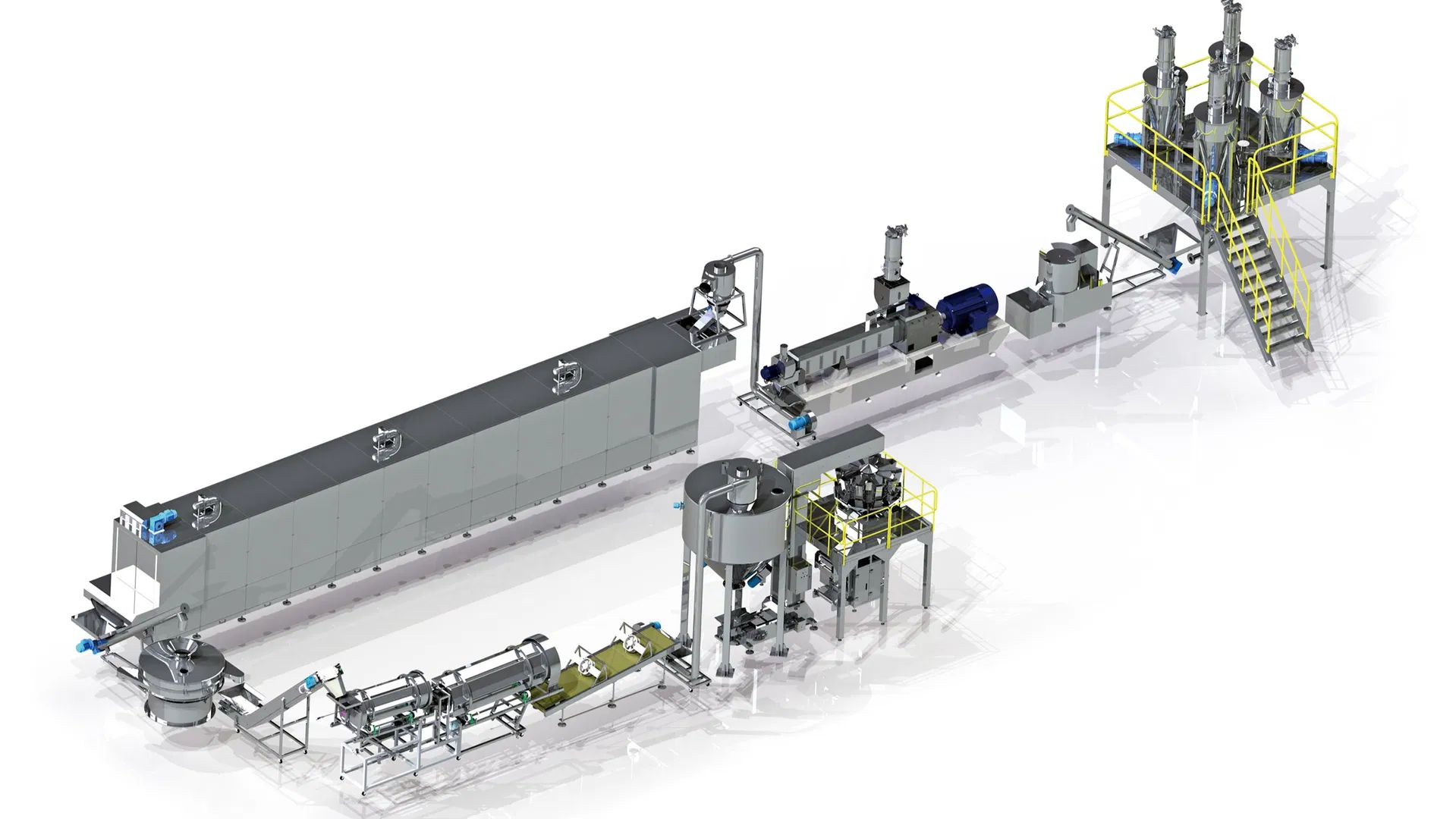

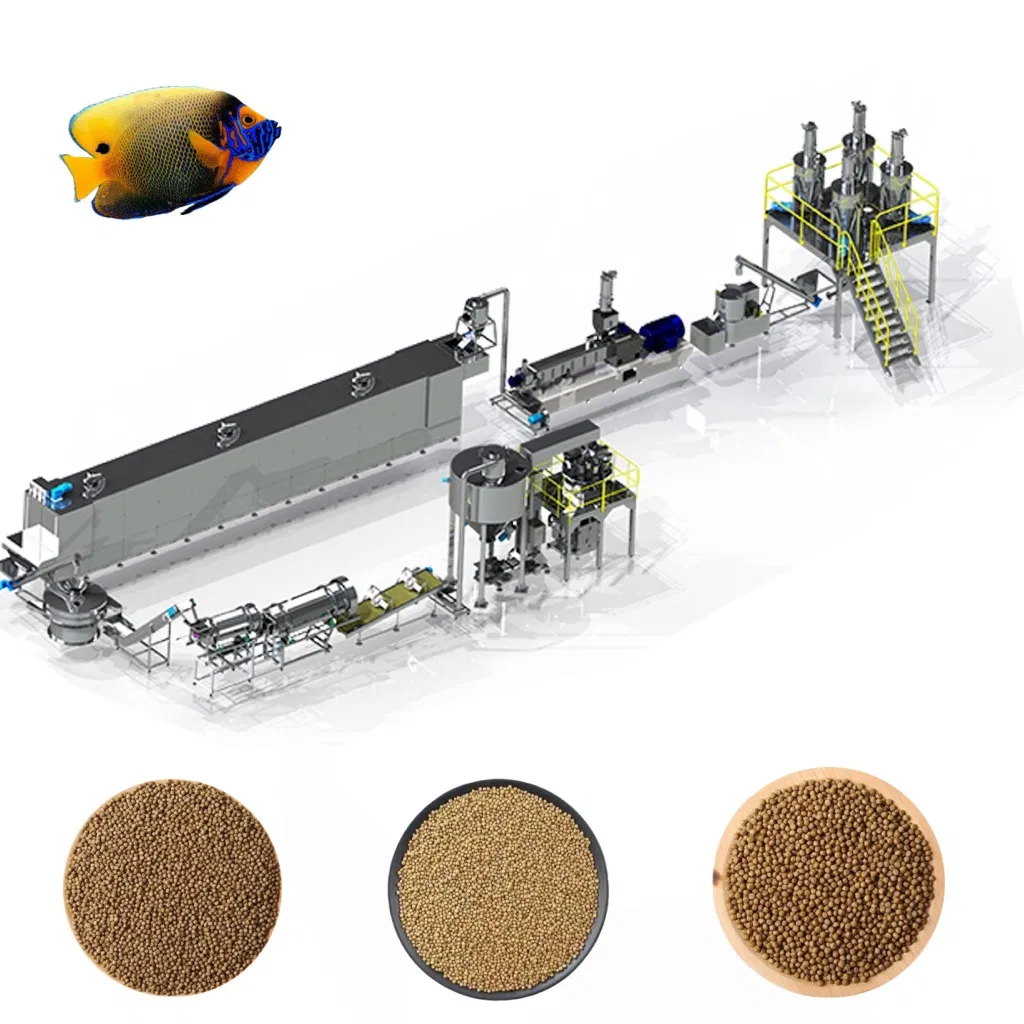

Milling Machine → Mixer → Conveyor → Extruder → Conveyor → Dryer → Conveyor → Flavoring machine → Cooling Machine → Packing Machine
Variety of shapes and colors with nutritional balance and easy digestion. Mold changes allow for infinite variety in appearance.
| Model | Installed Power | Power Consumption | Output | Size |
|---|---|---|---|---|
| MT-85 | 175kw | 123kw | 300-600kg/h | 26000*3500*4300mm |
| MT-90 | 285kw | 215kw | 1000-1200kg/h | 36000*2400*4000mm |
| MT-95 | 383kw | 287kw | 1000-1500kg/h | 36000*3000*4000mm |
| MT-115 | 425kw | 318kw | 2000-3000kg/h | 38000*3000*4000mm |

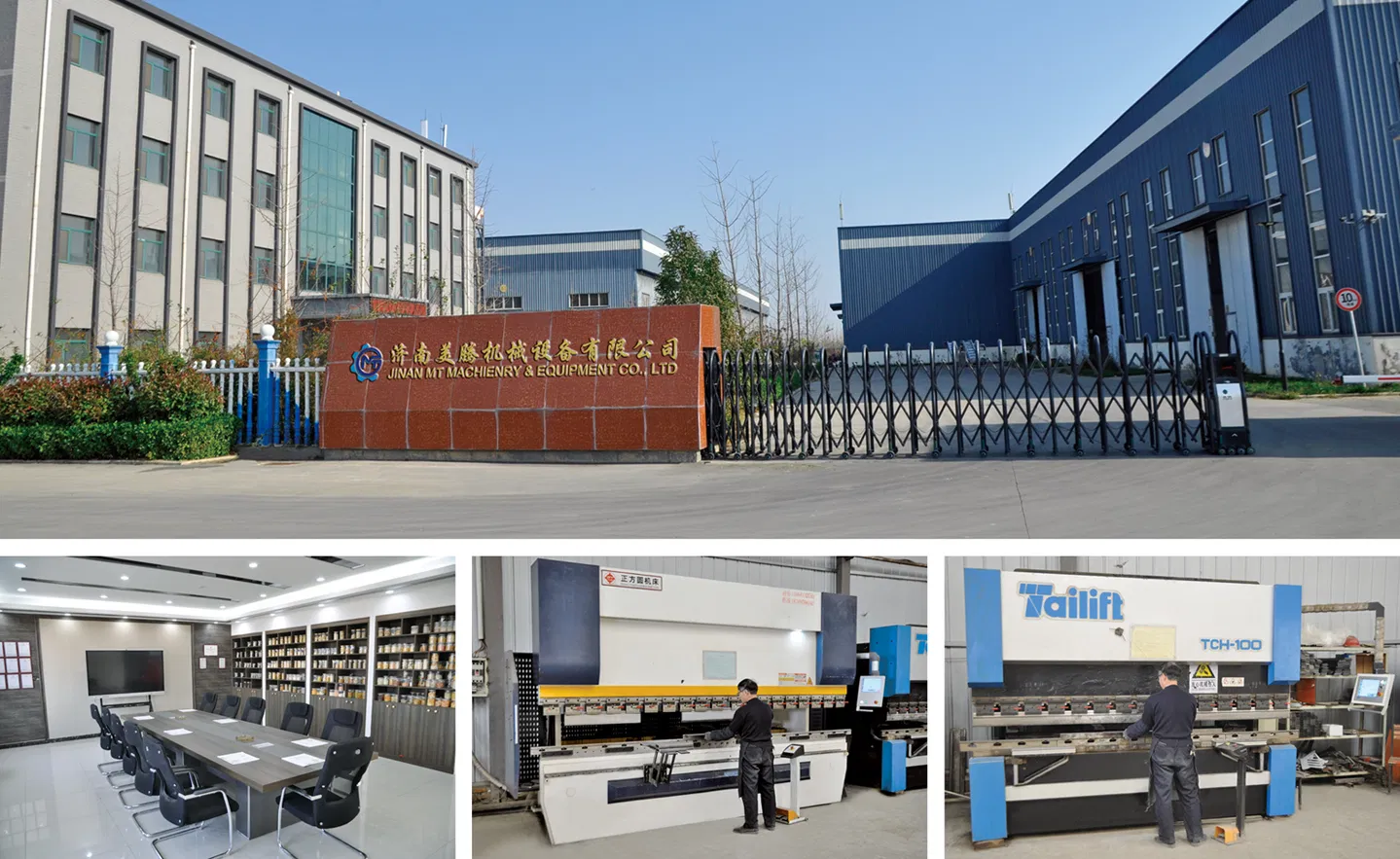

As a leading professional manufacturer in feed extruder and pellet production lines, we specialize in double-screw and single-screw food machinery. We focus on R&D, production, and sales of complete sets of equipment with over 50 years of industry experience.
● Advanced technology and high-quality materials.
● Tight quality control and accurate matching.
● 24/7 service availability.
● Engineer dispatch for installation, debugging, and training.
