Basic Specifications
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment

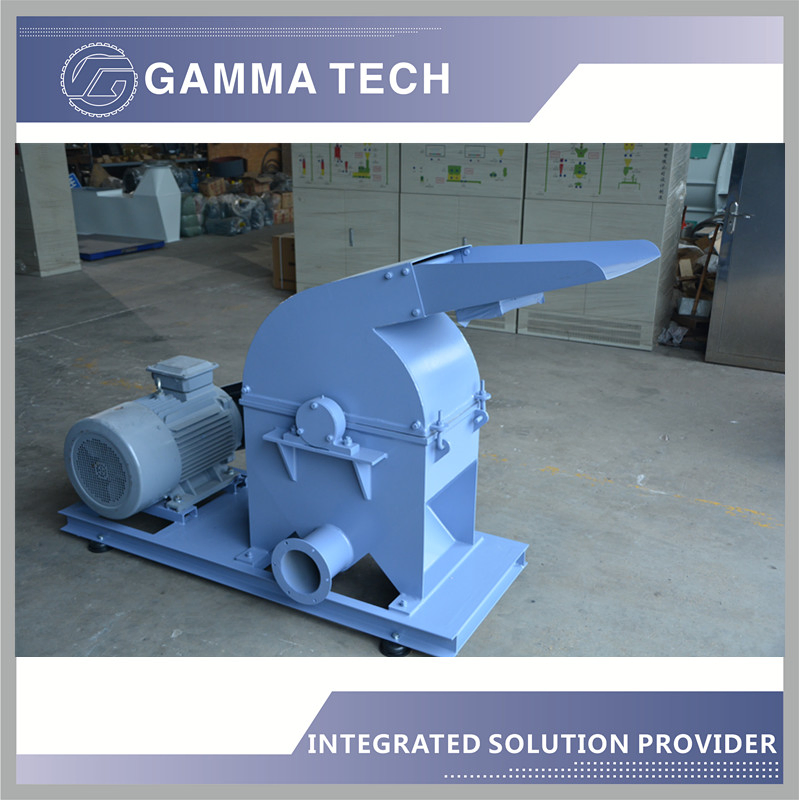

Feed Hammer Mill
Pellet Mill Type

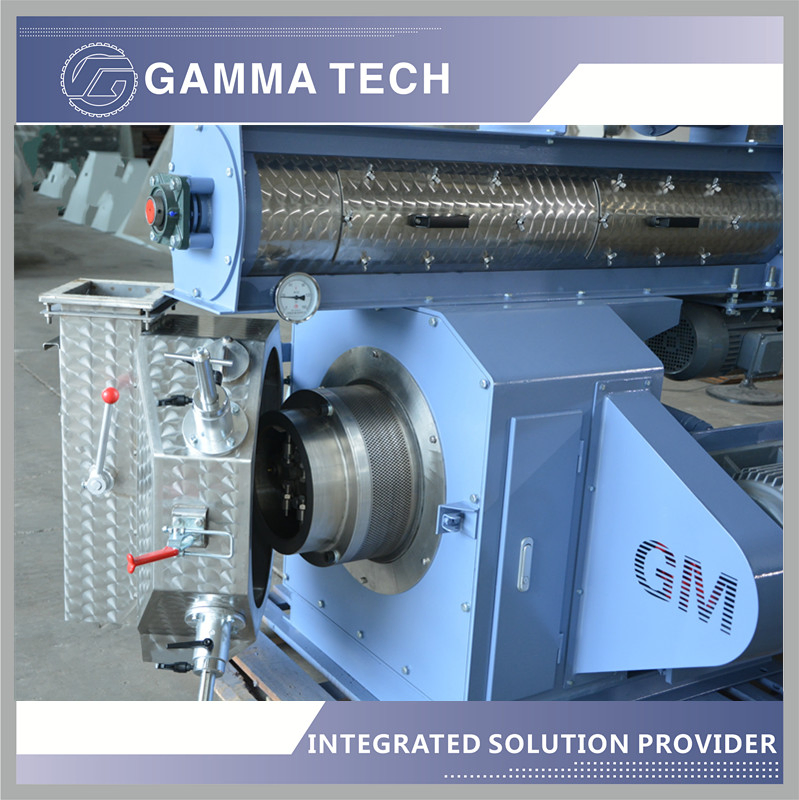

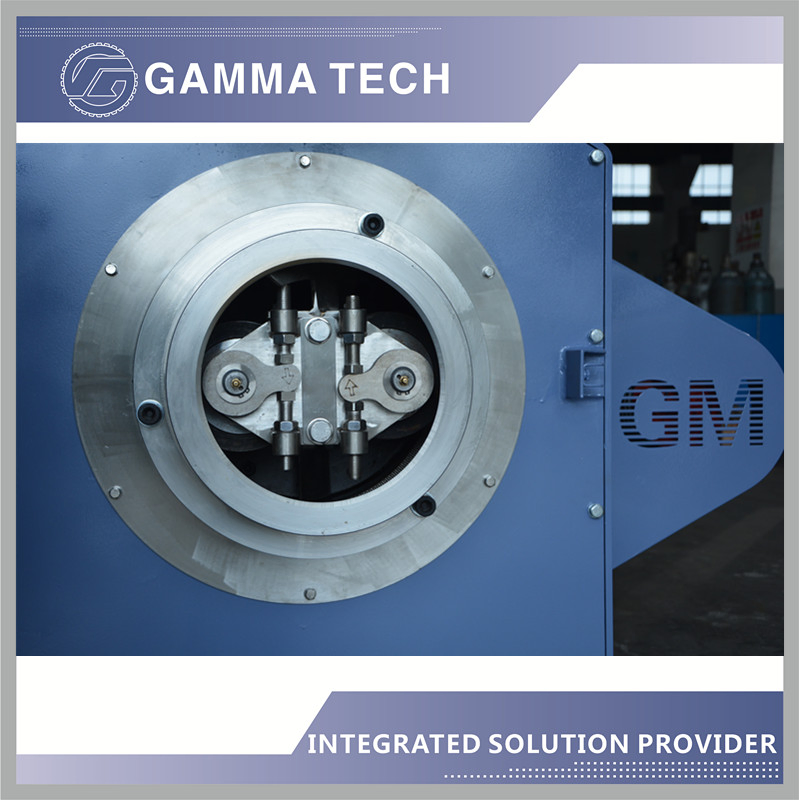

Ring Die Pelleter
Bulking Machine
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Model Number
Szlh320/Szlh350/Szlh400/Szlh420/Szlh508
Output Capacity
5tph @ 3.5mm
Driving System
Direct Gear Type
Feed Type
Poultry and Live Stock Feed
After Sales Service
Full Installation / Supervisor / Training
Production Capacity
3 Set/Month
Product Description

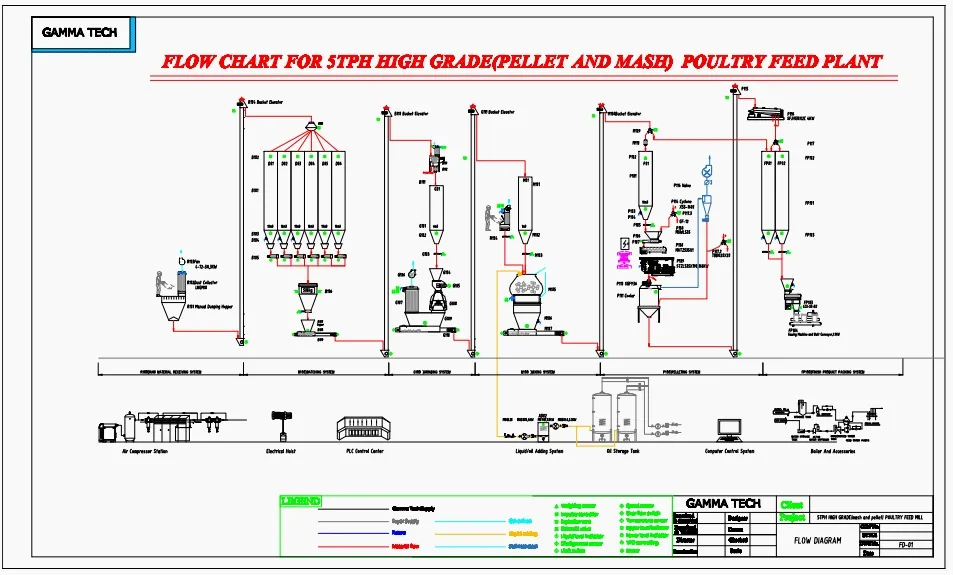

5TPH Animal Feed Production Line
| Production Line Overview |
| Raw materials | corn, wheat bran, fish meal, bone powder, meat, alfafa, grass etc. |
| Diameter of feed pellet | 2-10mm |
| Application | feed pellet machine/plant widely used for home, poultry and livestock farm. |
| Capacity | 5T/H, can be customized |
| Process Step | crushing-mixing-pelletizing--cooler & screener--packing |
| Warranty | 1 Year (except spare parts) |
| Motor | Siemens Brand Motor for main machines |
| Bearing | SKF/NSK Brand for pellet mill |

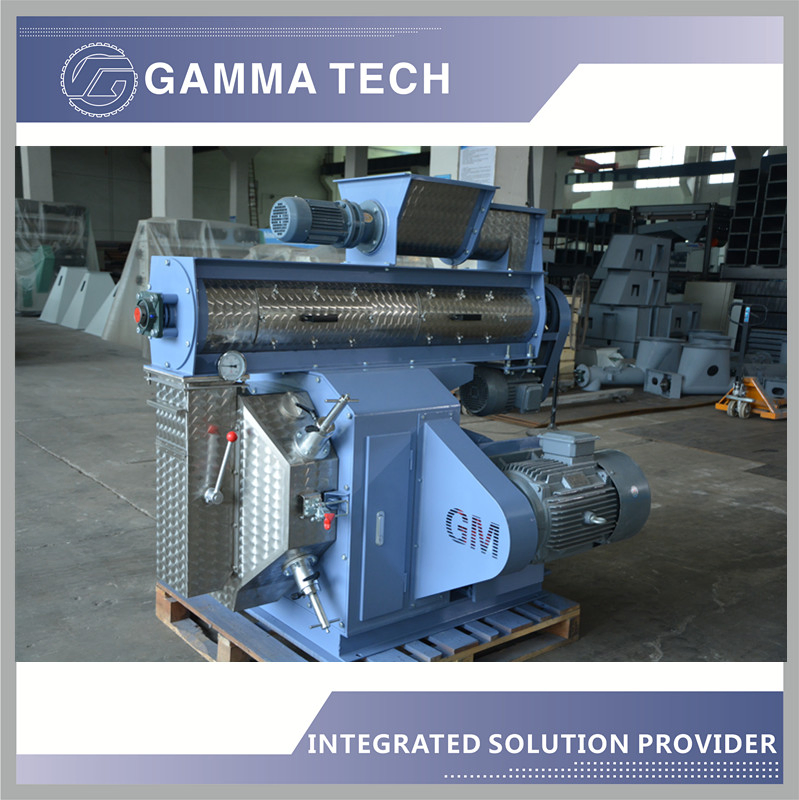

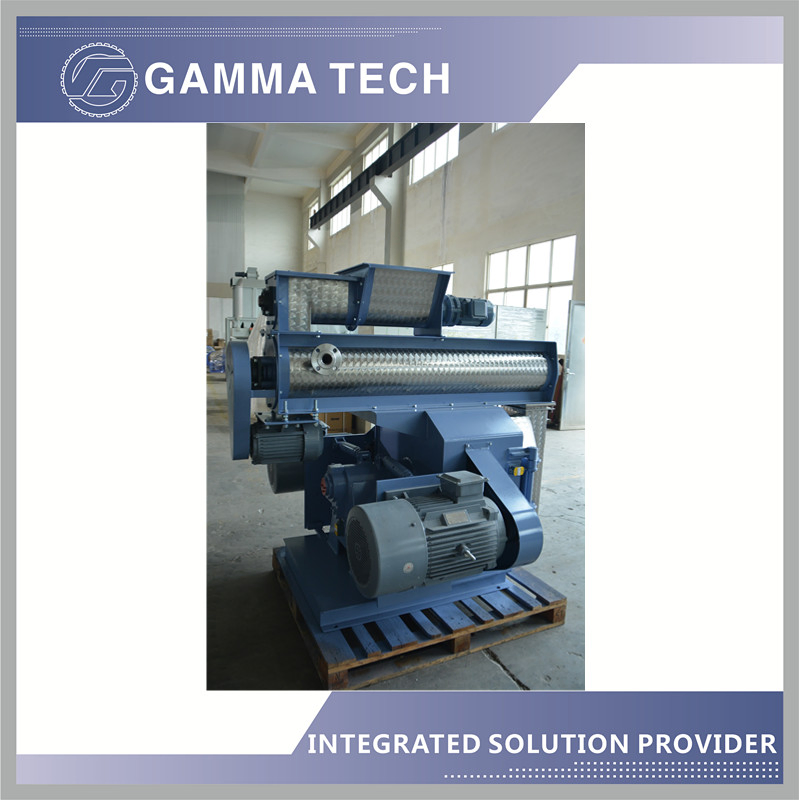

Technical Parameters (SZLH Series)
| Model |
SZLH320 |
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |

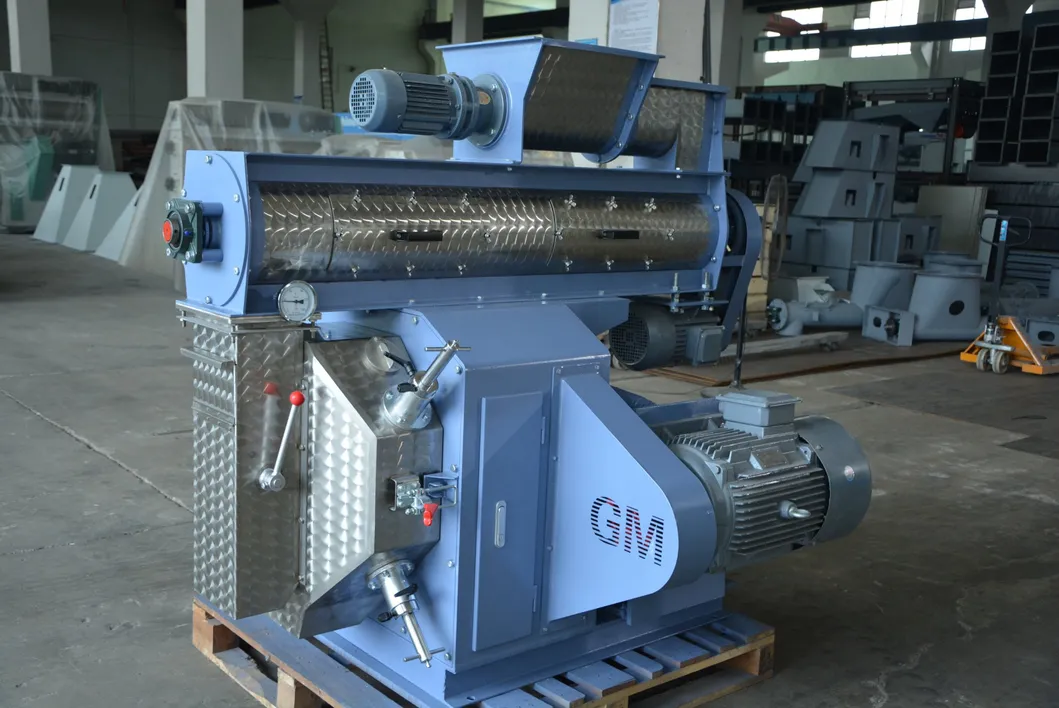

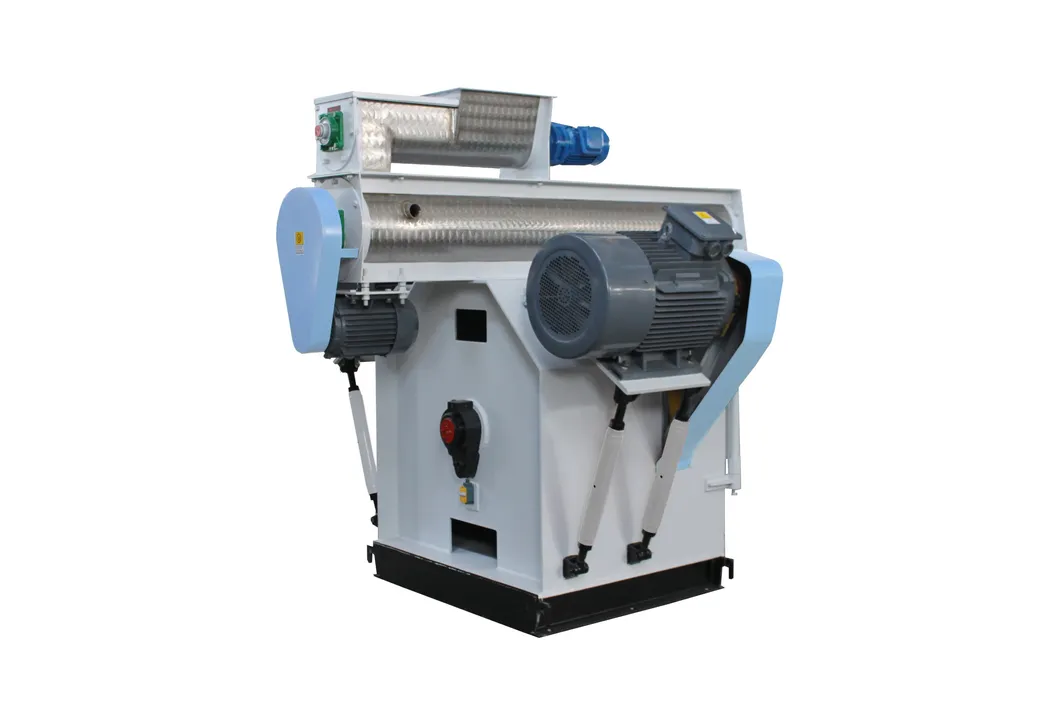

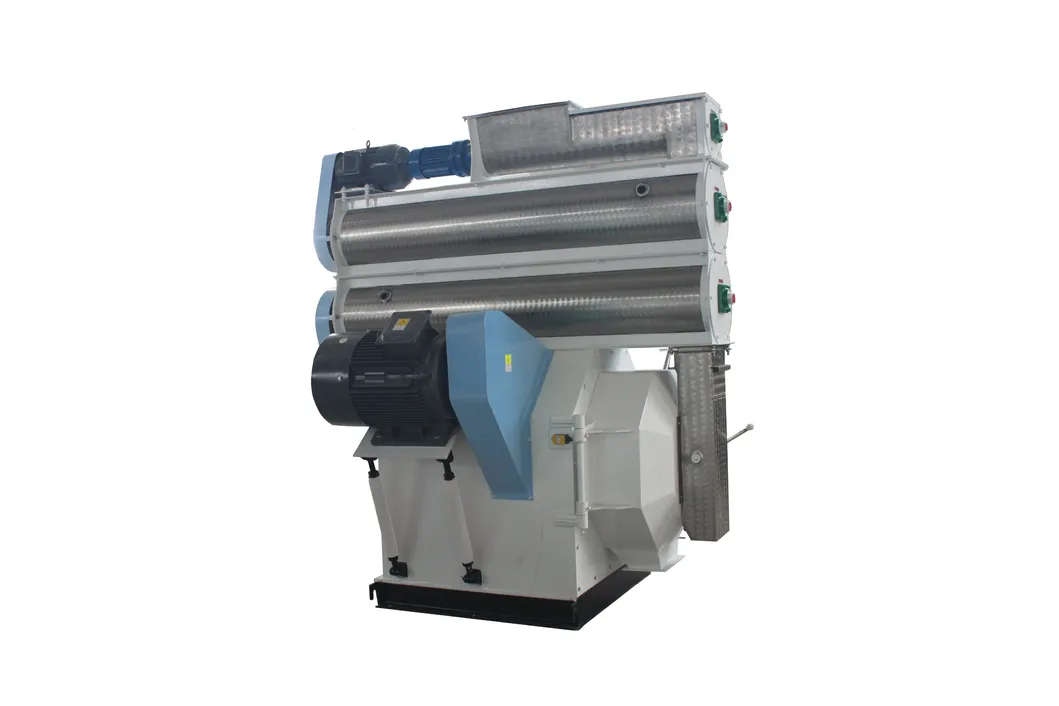

Product Gallery

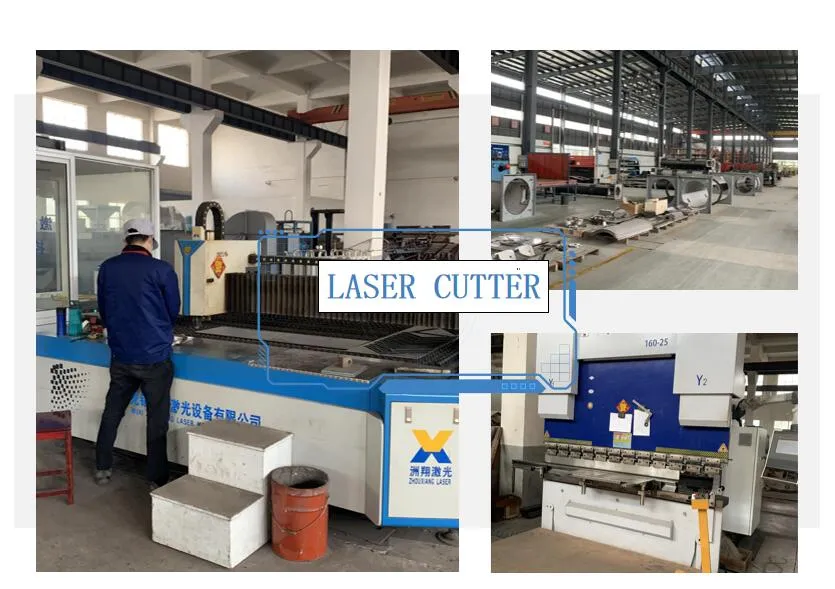

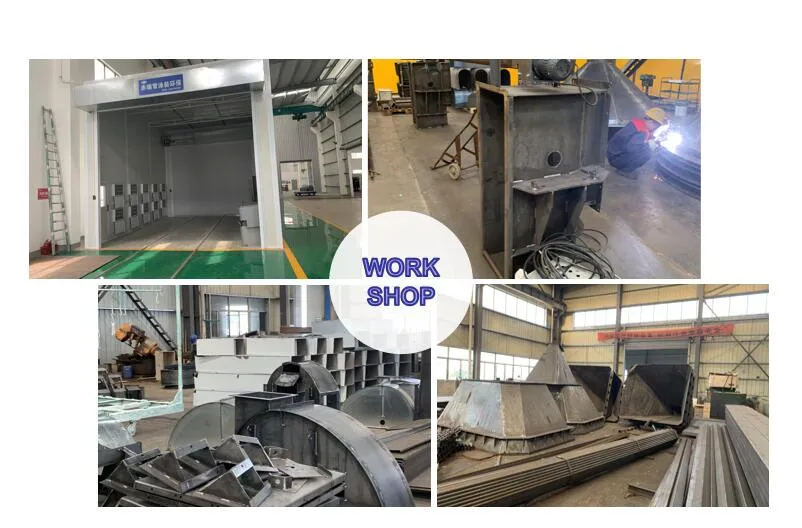

Factory Facility
Good tools make good machines. We utilize advanced manufacturing facilities to ensure precision and quality.
Professional Services
Quality is the soul of our operations. We provide comprehensive service from shipment to maintenance.
⚙️
Technical Support: Free training, guidance installation, and debugging.
🛡️
Guaranteed Time: 12 months from the delivery date.
🌐
After-sales: Online service team ready to support your requirements on time.

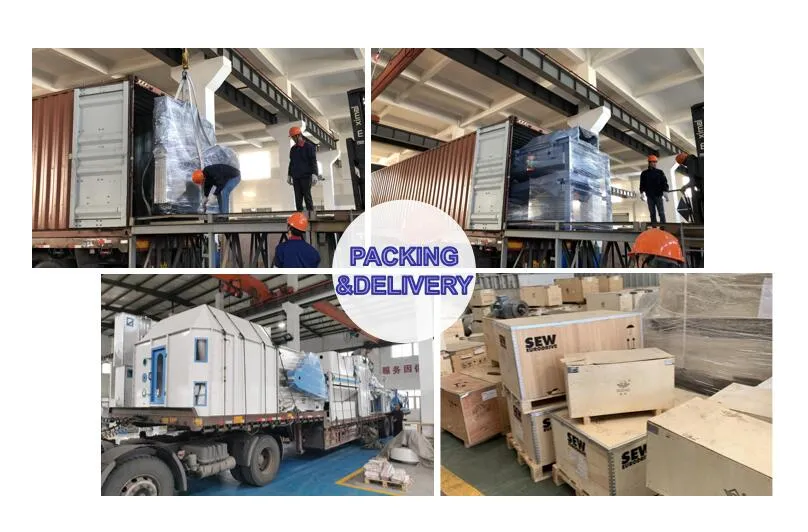

Packing & Delivery
Why Choose Our Pellet Mill?
🏆
Excellent Reputation: Recognized for quality and credit both locally and internationally.
🏭
Factory Direct Supply: Competitive pricing and dedicated brand care.
💡
Advanced Technology: Utilizing American CPM advanced technology with onsite installation experience.
🏗️
Robust Design: Direct gear drive system makes the machine stronger with lower energy consumption compared to belt drives.
Frequently Asked Questions
1. What is the capacity range of this feed production line?
The capacity varies by model, ranging from 1.5 T/H to 20 T/H. Our standard SZLH320 model provides an output of approximately 5 TPH for 3.5mm pellets.
2. What types of raw materials can be processed?
The system is versatile and can process corn, wheat bran, fish meal, bone powder, meat, alfalfa, grass, and other granular materials into feed pellets.
3. What is the size of the final feed pellets?
The production line can produce pellets ranging from 2mm to 10mm (some models 3-12mm) in diameter, suitable for poultry and livestock.
4. What major components and brands are used in the machines?
We use Siemens brand motors for the main machines and SKF or NSK bearings for the pellet mills to ensure durability and high performance.
5. What is the warranty and after-sales support policy?
We provide a 12-month warranty from the delivery date (excluding spare parts). Our services include free training, installation guidance, and online technical support.
6. How is the equipment packed for international transport?
Machines are typically secured in wooden boxes or iron frames to ensure safe transport and protection during delivery.
