⚙️ Basic Specifications
Processing Object
Grass, Straw, Stalk, Rice Husk, Maize, Fish Meal
Output Capacity
60kg/h - 2000kg/h
Pellets Diameter
2.5mm - 8mm
Key Selling Points
Multifunctional Advanced Design, Automatic
Core Components
Motor, Reducer
Market
Uzbekstan, Nigeria, Ghana, Zambia, Kenya, South Africa
A leading manufacturer of animal feed processing machines and complete feed mill plants. With over 10 years of experience, we provide high-quality equipment for poultry, cattle, and fish feed production.
🚀 Main Types of Feed Pellet Machines
🔸

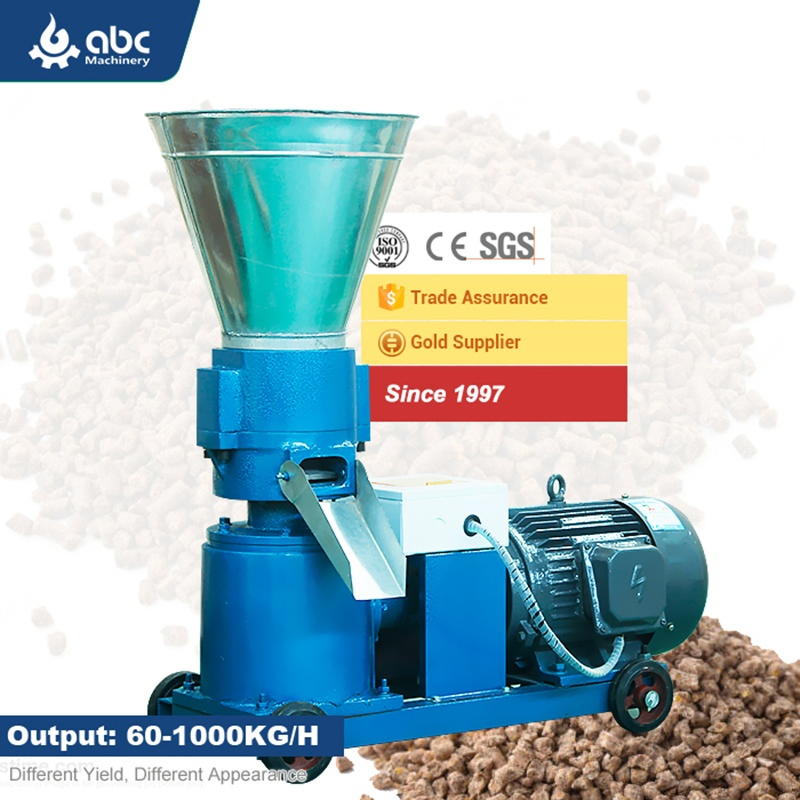

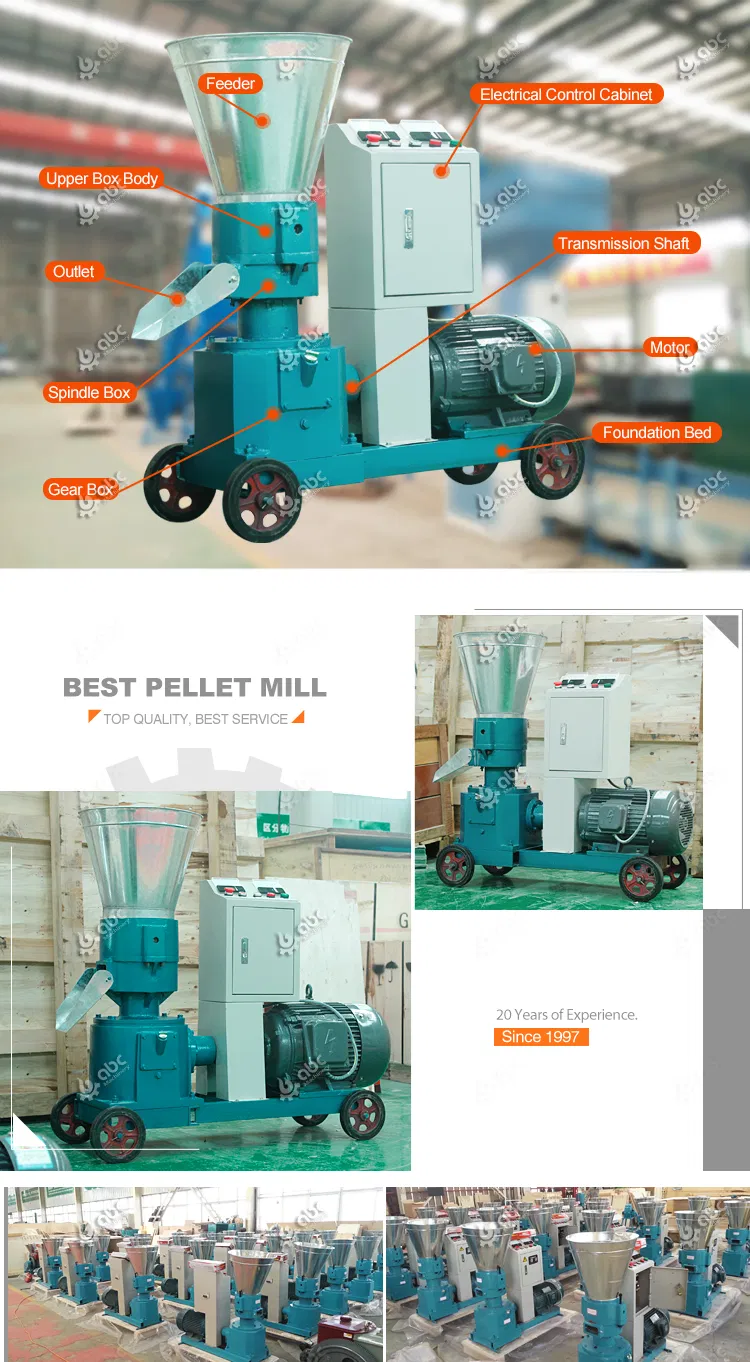

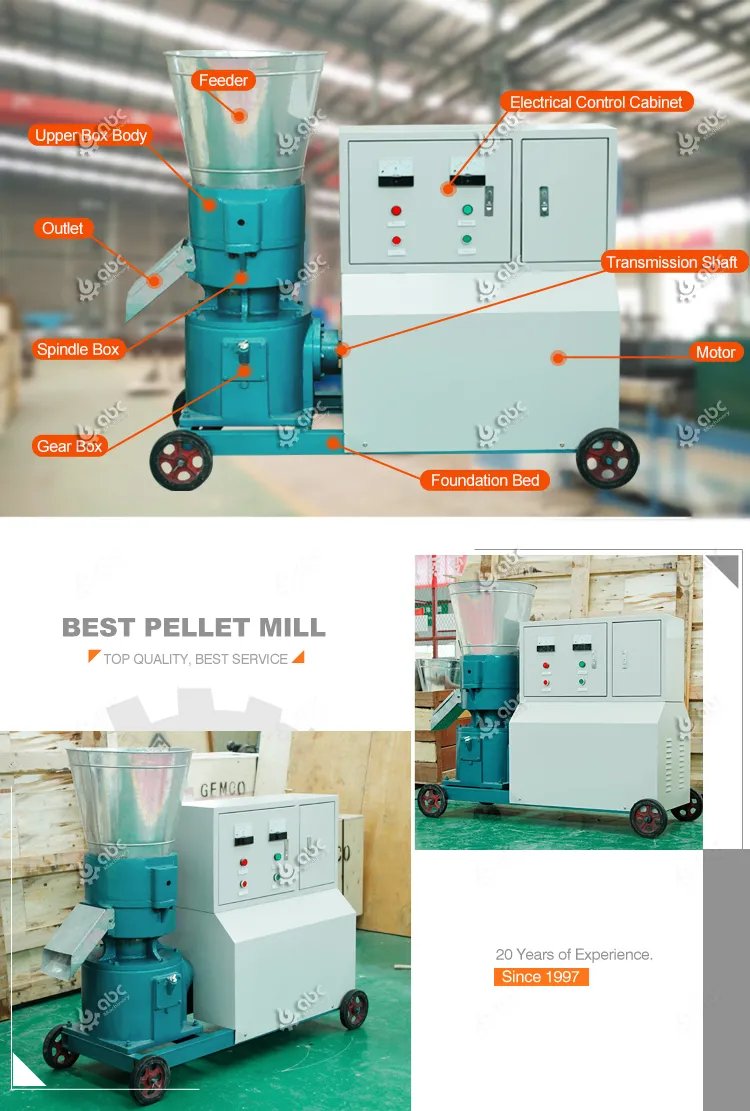

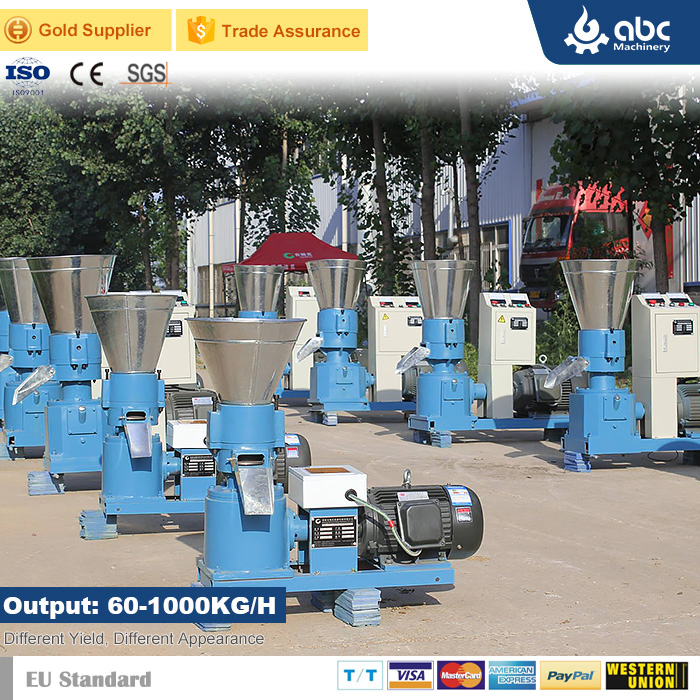

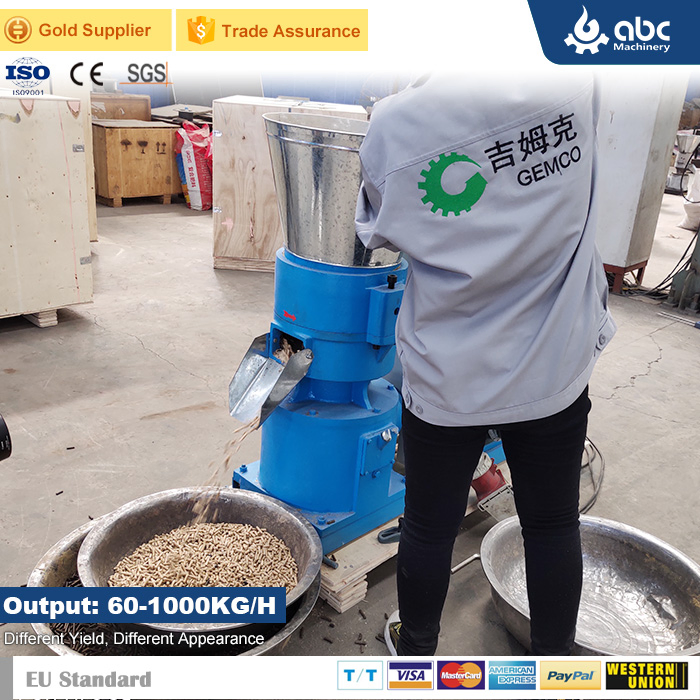

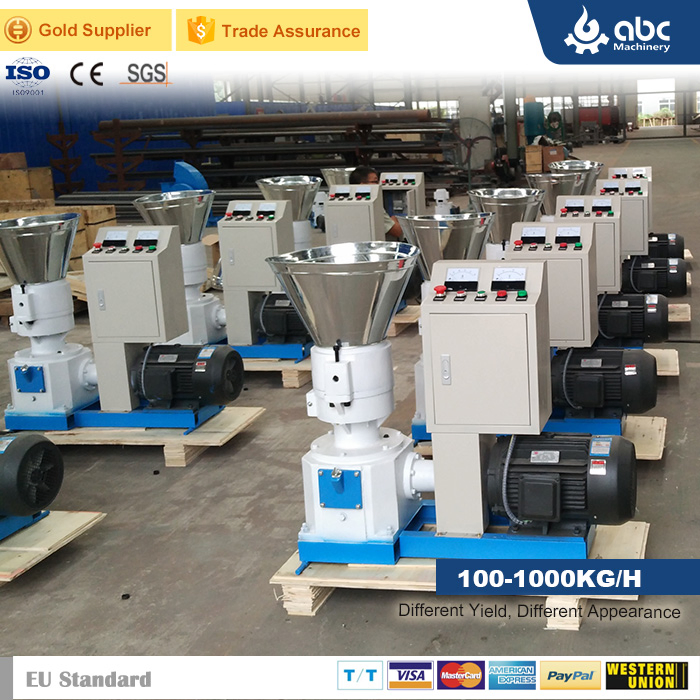

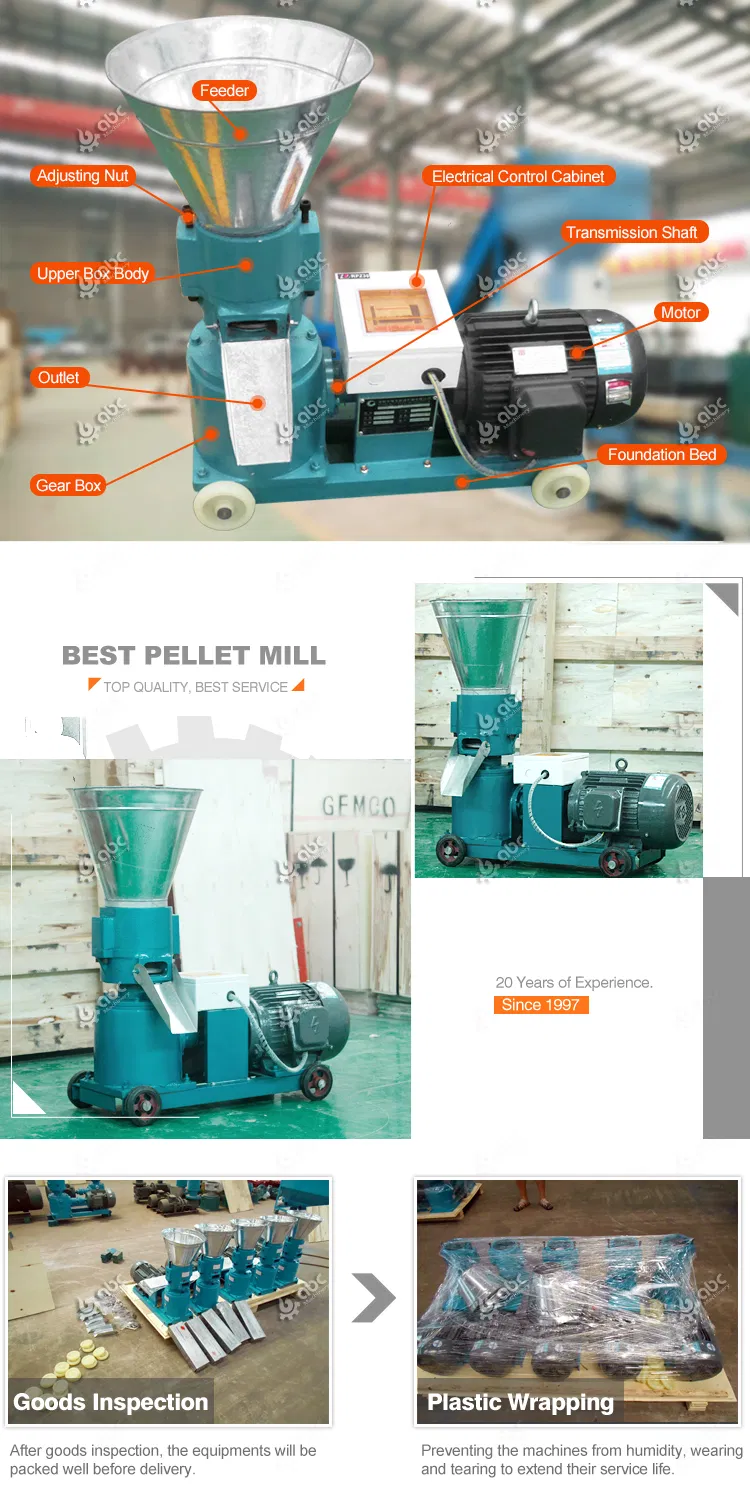

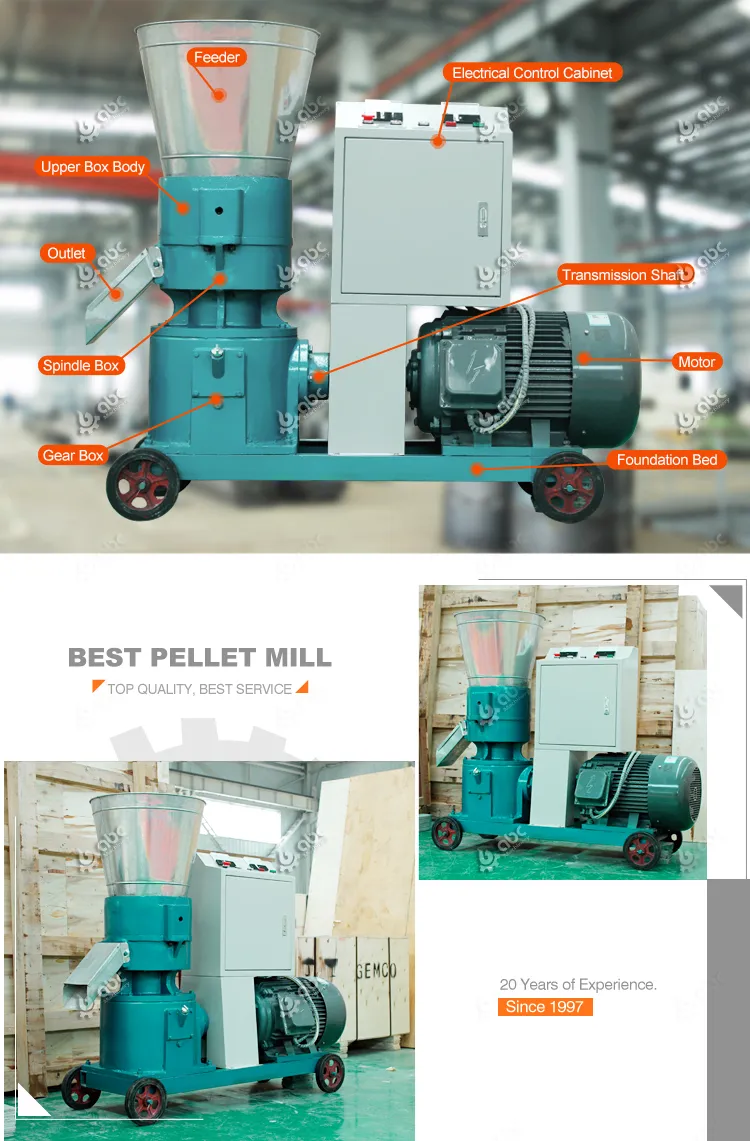

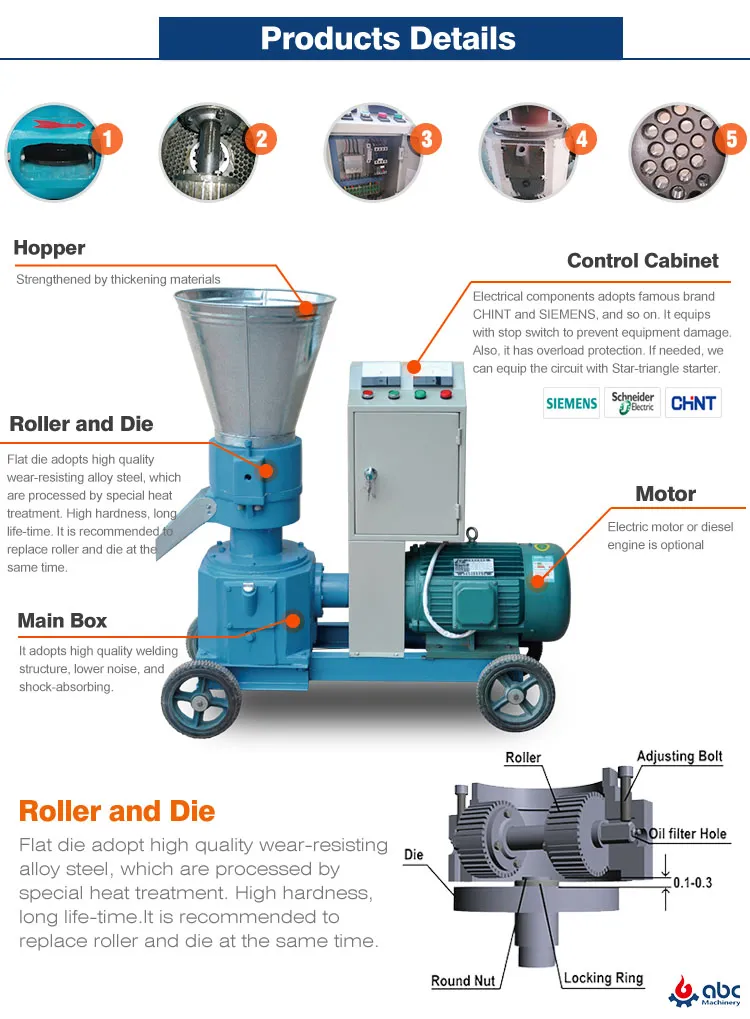

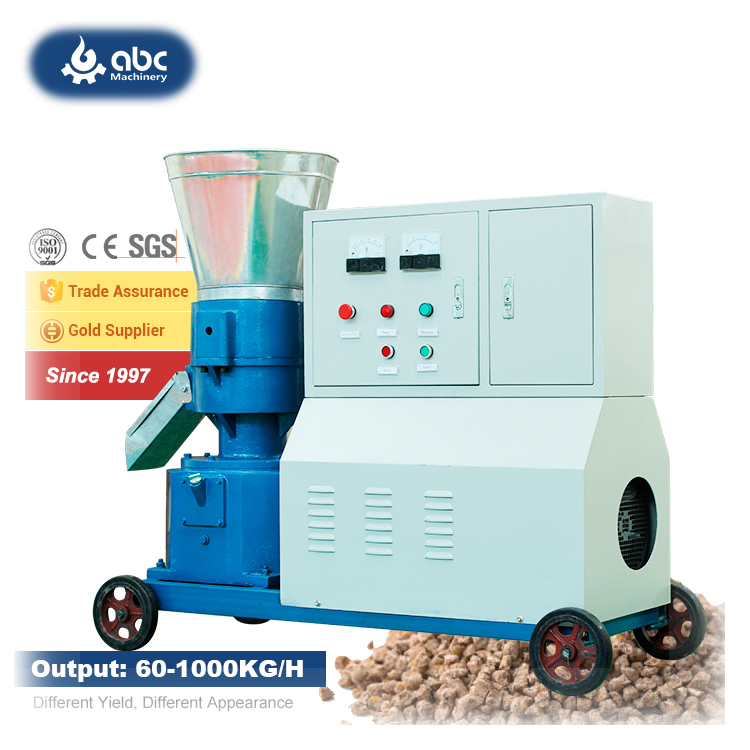

Flat Die Feed Pellet Press: Available in electric motor, diesel engine, gasoline engine, and PTO types. Ideal for small poultry feed mills or home/farm use.
🔸
Ring Die Feed Pellet Mill: Heavy-duty machine designed for large-scale industrial feed production.
🔸
Fish Feed Extruder Machine: Specialized for floating and slow-sinking aqua feed pellets.
🔸
Complete Feed Milling Plant: Scalable solutions from 800kg/h to 100 tons per hour, including crushing, mixing, and pelletizing.

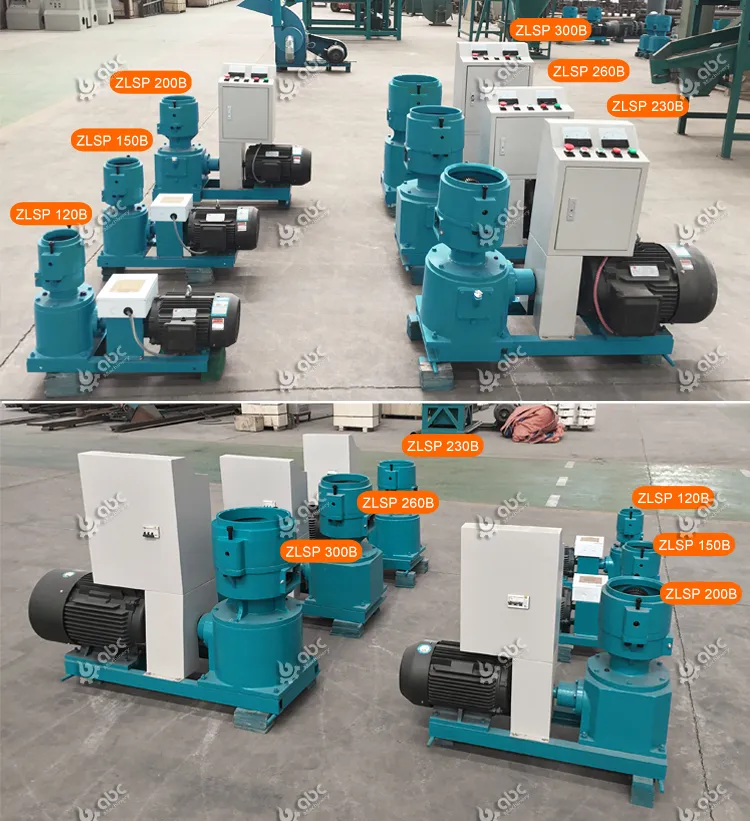

Motor-driven Type (Model SZLSP-D-B-C) - Series B Specifications
| Model |
Power (kw) |
Output (kg/h) |
Weight (kg) |
Package Size (mm) |
| ZLSP 120B | 3 | 60-100 | 80/100 | 750x320x680 |
| ZLSP 150B | 4 | 90-120 | 95/110 | 800x450x700 |
| ZLSP 200B | 7.5 | 200-300 | 200/230 | 1650x820x1200 |
| ZLSP 230B | 11 | 300-400 | 290/320 | 1050x480x930 |
| ZLSP 260B | 15 | 400-600 | 320/360 | 1180x540x1000 |
| ZLSP 300B | 22 | 600-800 | 350/380 | 1240x540x950 |
Series C Technical Data
| Model |
Power (kw) |
Output (kg/h) |
Weight (kg) |
Package Size (mm) |
| ZLSP 150C | 4 | 90-120 | 105/125 | 1000x480x780 |
| ZLSP 200C | 7.5 | 200-300 | 210/230 | 1050x550x830 |
| ZLSP 230C | 11 | 300-400 | 290/320 | 1200x560x950 |
| ZLSP 260C | 15 | 400-600 | 340/370 | 1240x580x1000 |
| ZLSP 300C | 22 | 600-800 | 420/465 | 1300x620x1100 |
🐾 Feed for Different Animals
Poultry: Chicken, duck, goose, pigeon, quail, etc.
Livestock: Cattle, cow, sheep, goat, horse, pig, rabbit.
Aquatic: Fish, tilapia, catfish, shrimp, crab, etc.
🌟 Why Choose Our Equipment?
✅
Global Cooperation: Sales and service operations in more than 50 countries.
✅
Engineering Capability: Integrated R&D, design, manufacturing, and installation with a professional technical team.
✅
Quality Assurance: CNC precision processing and strict quality control managed by chief engineers.
🌾 Suitable Raw Materials
We customize solutions based on your specific fodder materials and budget:
- Energy Feed: Corn, maize, grain, bran, starchy roots.
- Protein Feed: Fish meal, bone meal, earthworms.
- Roughage: Hay, straw, rice husk, peanut stalk.
- Additives: Vitamins, mineral feed, and health supplements.
🛠️ Processing Technology
🔹
Hard Feed Process: Cleaning → Crushing → Mixing → Pelletizing → Cooling → Grading → Packaging.
🔹
Extruded Feed Process: Batching → Micro Crushing → Mixing → Extruding (Puffing) → Drying → Cooling → Packaging.

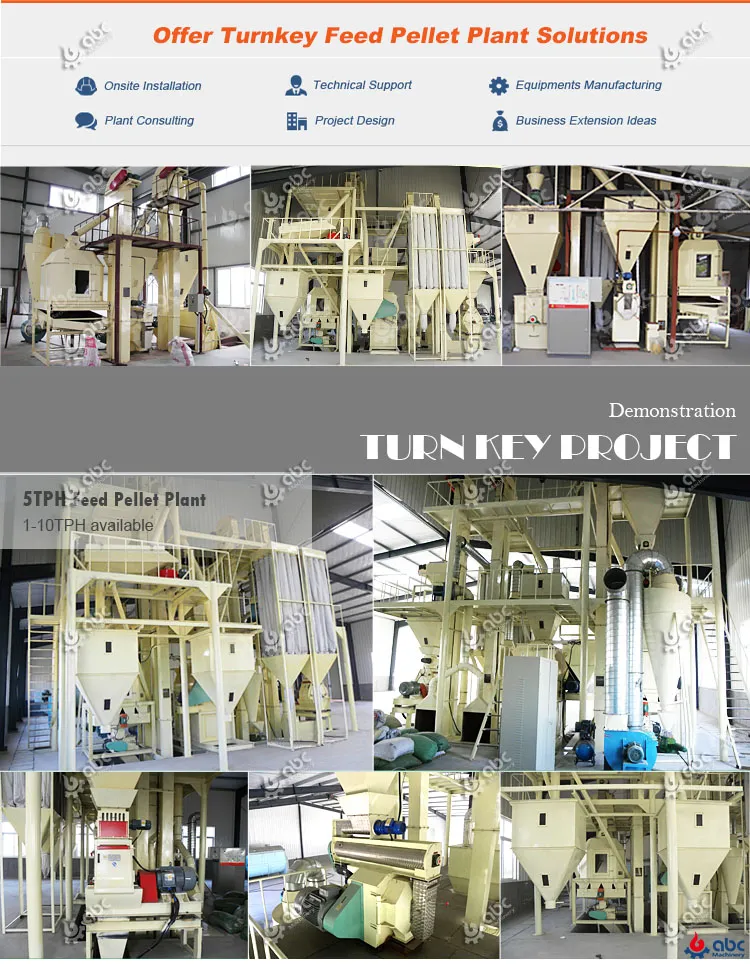

🌍 Global Success Projects
❓ Frequently Asked Questions
Q1: What materials can this machine process?
The machine is versatile and can process grass, straw, stalks, rice husks, maize, corn, and fish meal into high-quality pellets.
Q2: What is the range of pellet sizes that can be produced?
Our machines can produce feed mash and crumbles with diameters ranging from 2.5mm to 8mm (3/3.5/4/4.5/5/6/7/8mm).
Q3: Do you provide options for different power sources?
Yes, we offer various power configurations including electric motors, diesel engines, gasoline engines, and PTO (Power Take Off) types.
Q4: Is the machine suitable for making floating fish feed?
Yes, our fish feed extruder machines are specifically designed to produce both floating and slow-sinking feed for aquaculture like tilapia and shrimp.
Q5: What kind of warranty and quality assurance do you offer?
We provide a 1-year warranty on all machines. Additionally, a machinery test report is provided for every unit to ensure performance and quality.
Q6: What is the typical production capacity for a small business?
For small businesses or farm use, we offer units with capacities starting from 60-100kg/h, up to 1000kg/h for portable small feed mills.
