Product Overview

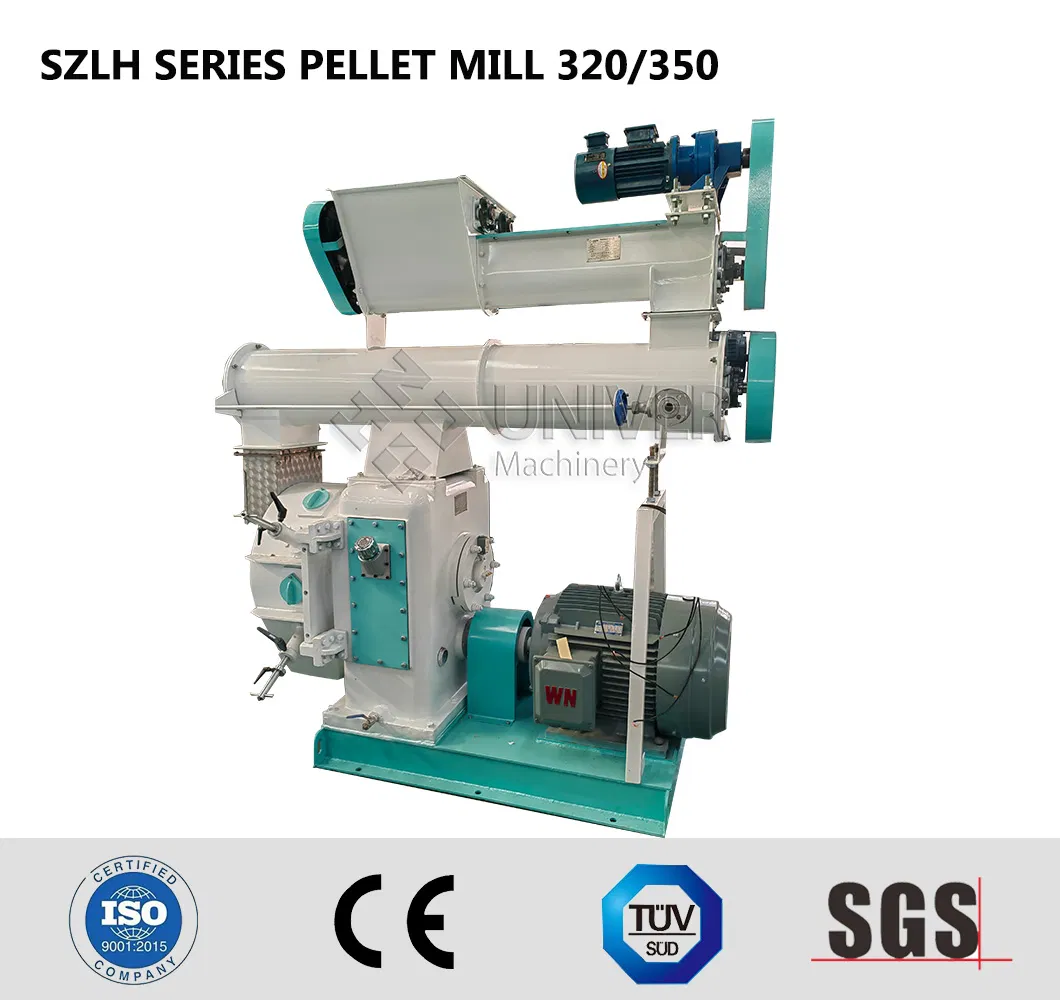

Model NO.SZLH Series
Processing ObjectMixed Feed
Pellet Mill TypeRing Die
Capacity1-25 tph
Warranty1 Year
CertificateISO, CE
Main DriveGearbox
Material ShapePowder
Product Description
High-efficient animal feed pellet machines are widely used in large and medium feed factories for poultry and livestock pellet feed processing. Designed to make production more efficient, faster, and energy-saving.
Raw Materials to Final Pellet

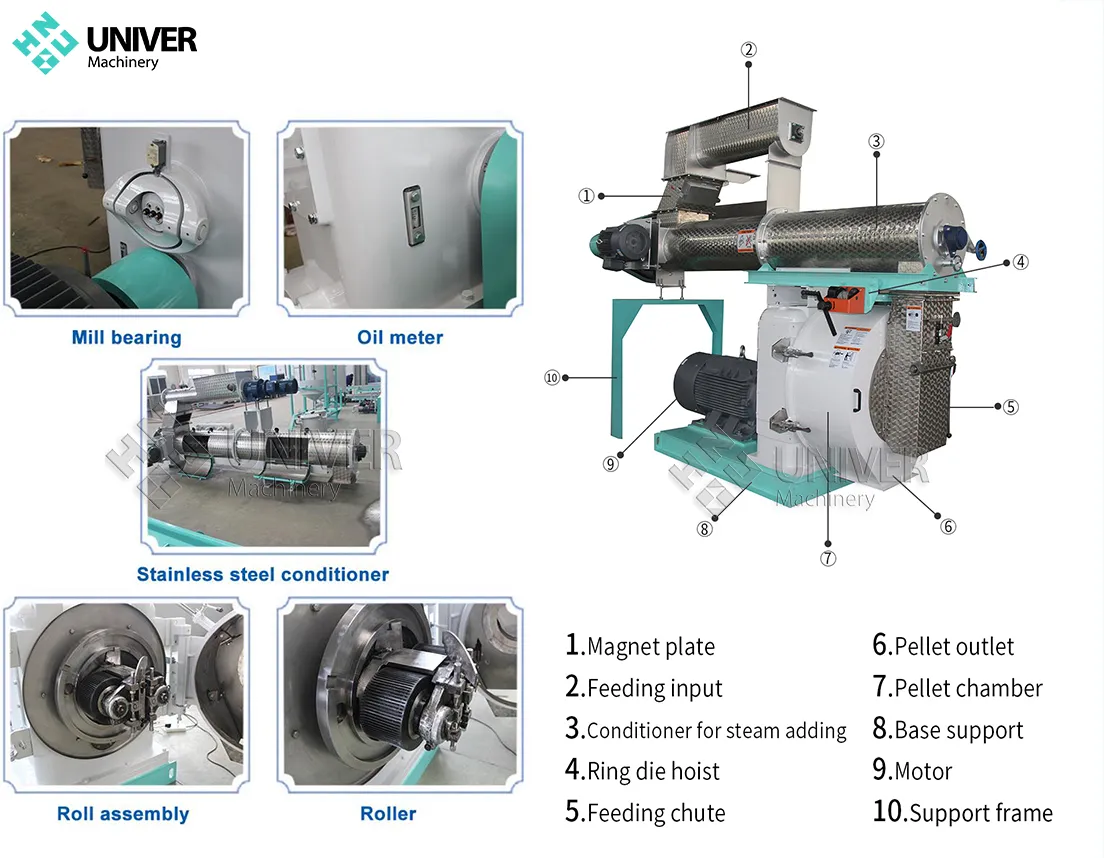

Main Features

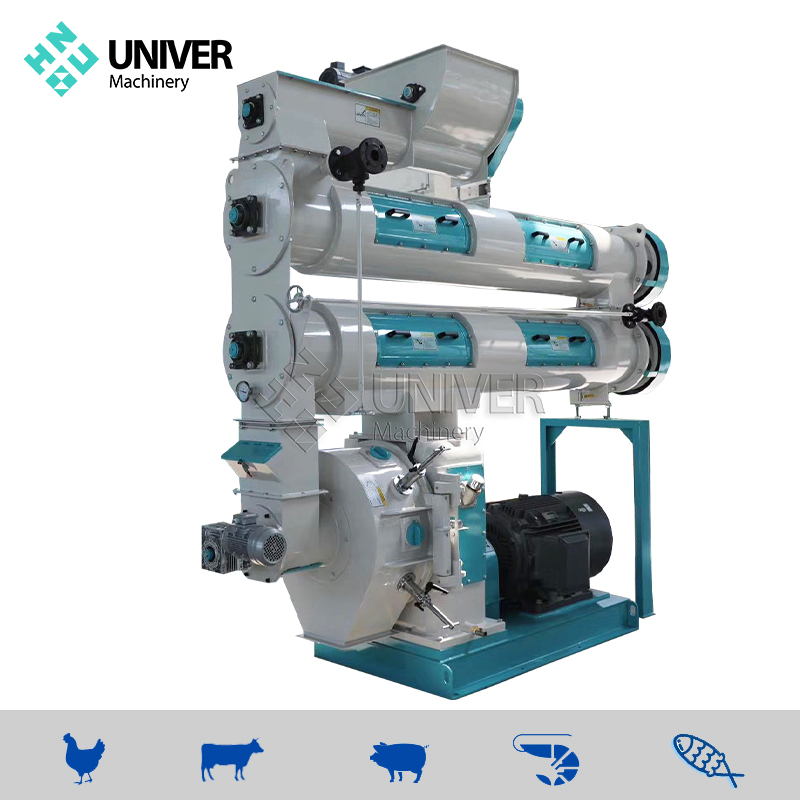

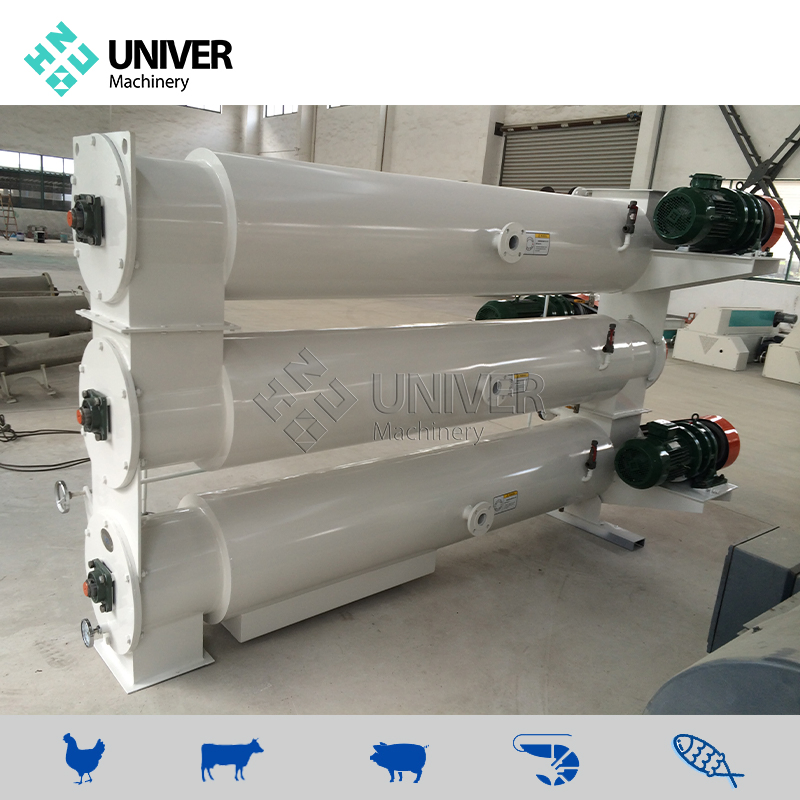

Higher Speed Conditioner
Extended stainless steel conditioner with optimized blade design for full material cooking.
Long Service Life
Features American special casting technology and imported standard parts for over 10 years of use.
15% Efficiency Increase
Advanced gear-type drive system ensures higher transmission efficiency compared to belt drives.
Professional Feed Quality
Produces pellets with uniform dimensions, clean appearance, and healthier nutritional profiles.
Technical Specifications
| Model |
Feeder (KW) |
Conditioner (KW) |

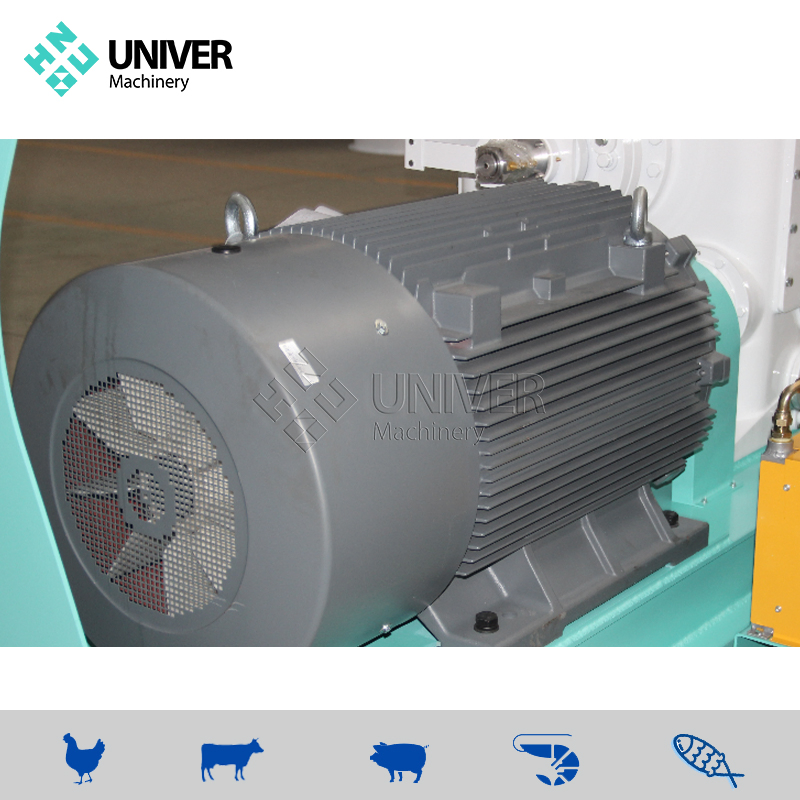

Main Motor (KW) |
Capacity (tph) |
| SZLH-250 | 0.55 | 1.5 | 22 | 1-2 |
| SZLH-320 | 0.75 | 2.2 | 37 | 2-4 |
| SZLH-350 | 0.75 | 2.2 | 55 | 3-7 |
| SZLH-400 | 1.5 | 5.5 | 90 | 3-12 |
| SZLH-420 | 1.5 | 5.5 | 110 | 5-15 |
| SZLH-508 | 2.2 | 7.5 | 132/160 | 6-20 |
| SZLH-578 | 2.2 | 7.5 | 200 | 10-25 |

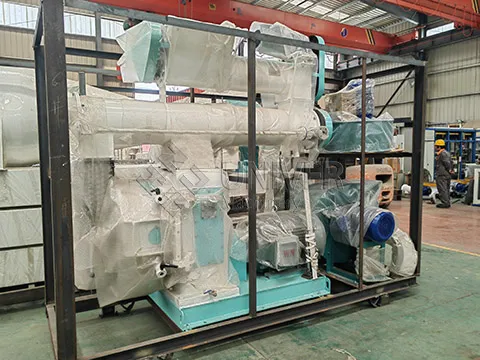

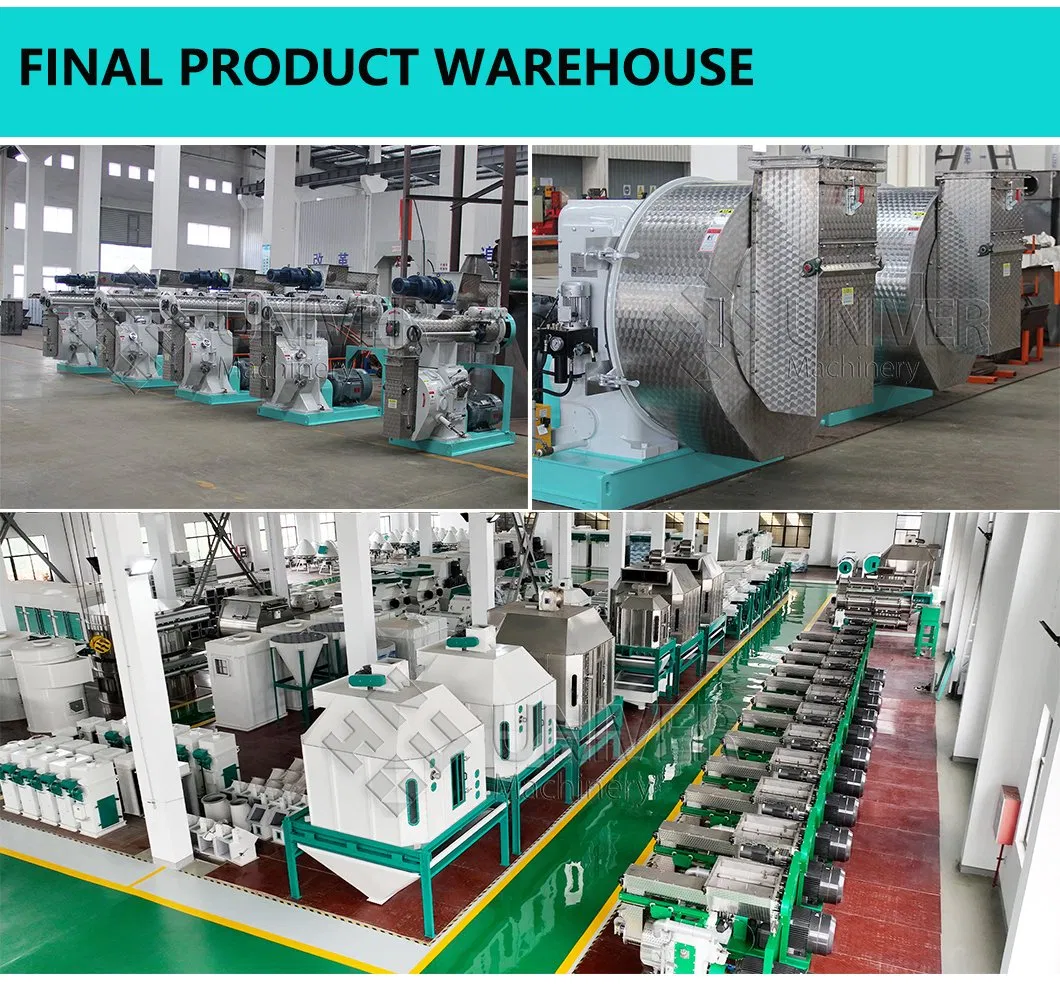

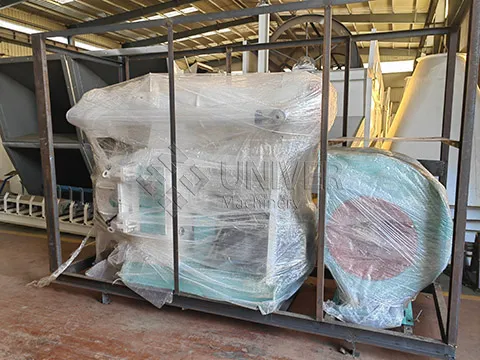

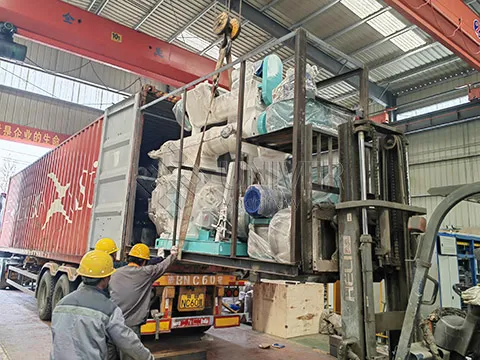

Packaging & Shipping

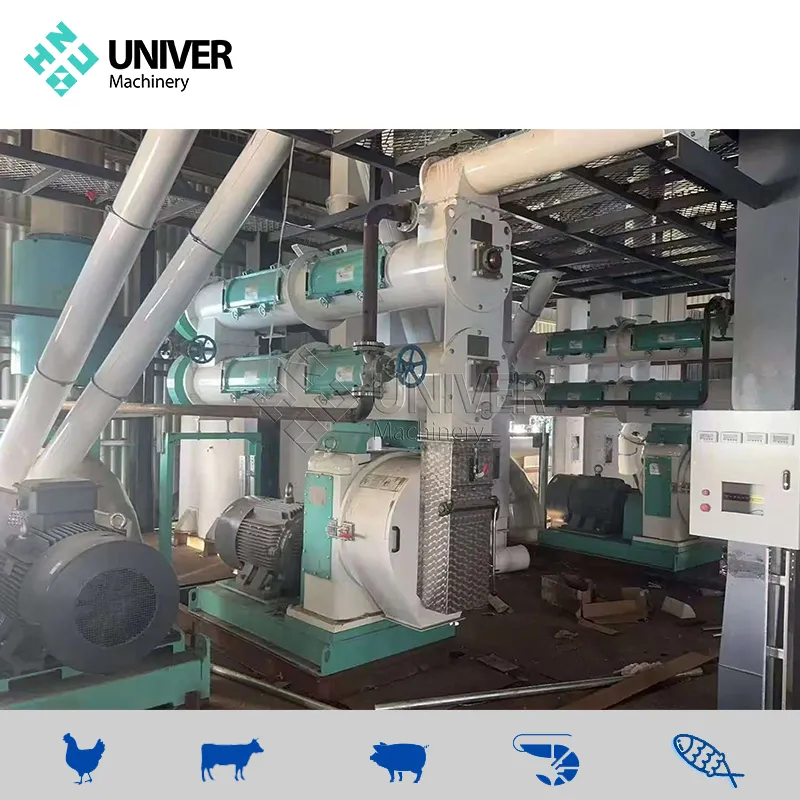

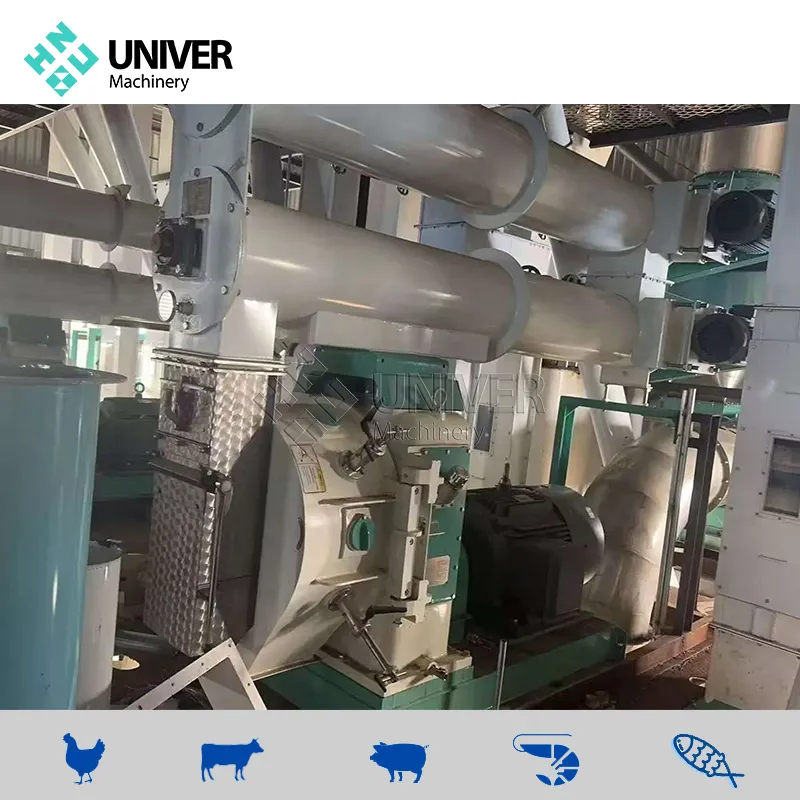

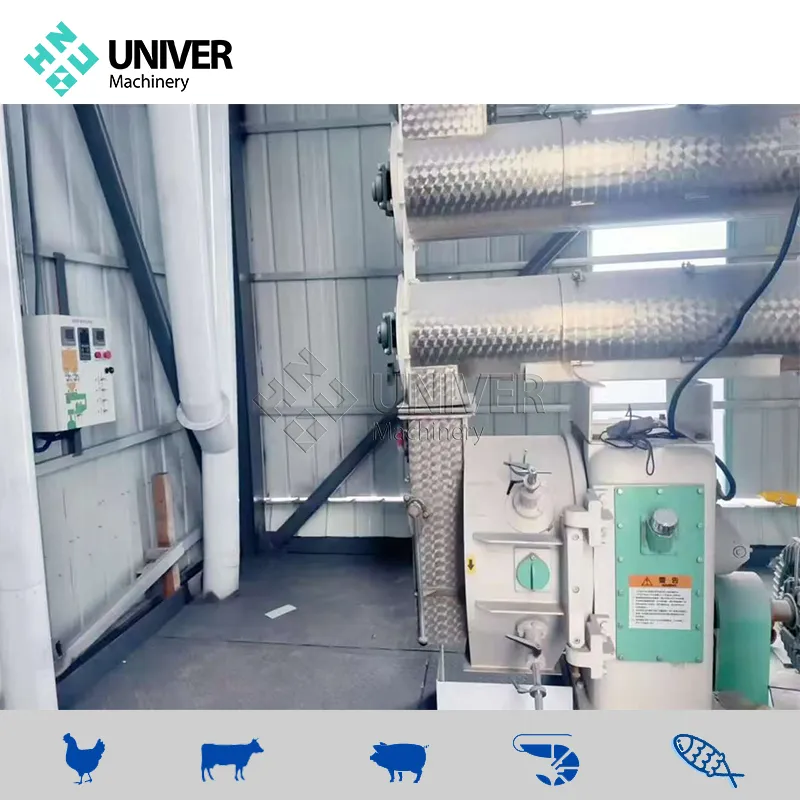

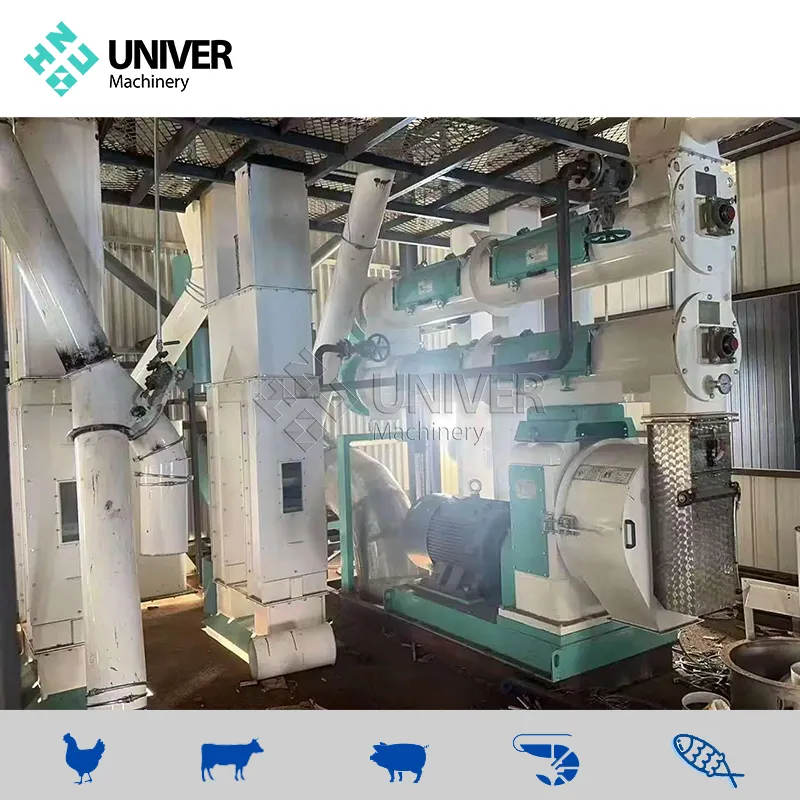

Project Showcase

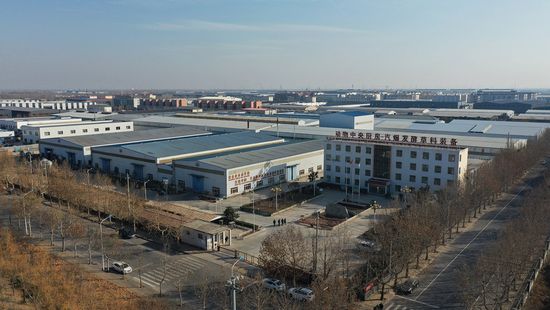

Company Overview
Exhibition Gallery
Frequently Asked Questions
What is the production capacity of the SZLH series?
The capacity ranges from 1 tph to 25 tph depending on the specific model selected.
What types of feed can this machine process?
It is ideal for processing poultry, livestock, and aquatic feed in pellet form from powder materials.
Does the machine require steam for operation?
Yes, high-temperature steam is needed for the conditioning process to ensure high-quality pellets.
What are the main advantages of the gear drive system?
The gear drive system offers 15% higher transmission efficiency and better stability compared to traditional belt drives.
Is the motor brand customizable?
Yes, we provide high-quality domestic motors or international brands like Siemens based on customer requirements.
What is the warranty period for the machinery?
We provide a 1-year warranty along with a full range of on-site installation and commissioning guidance.
