Product Description

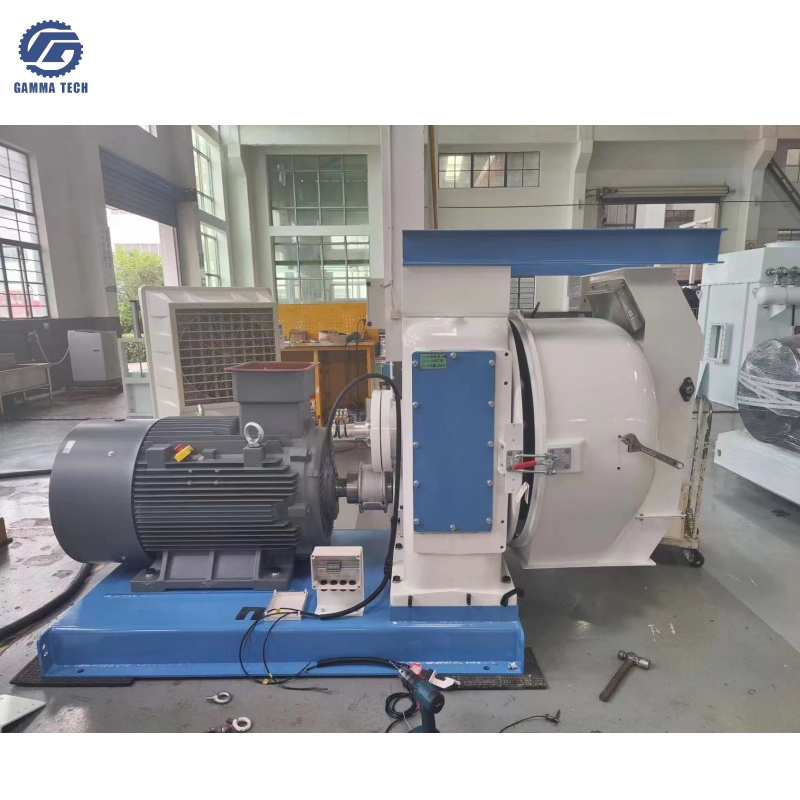

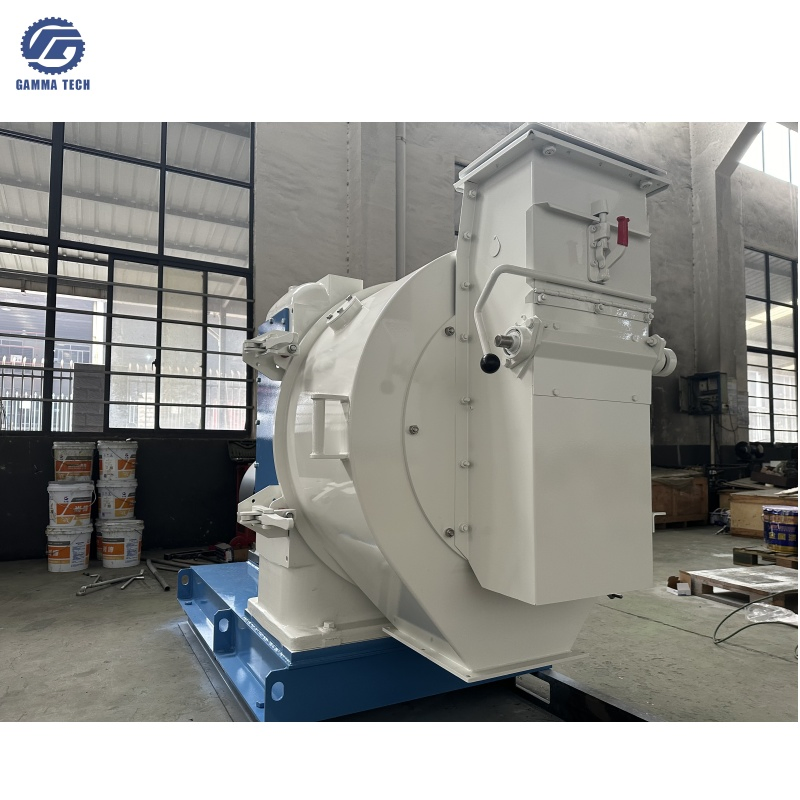

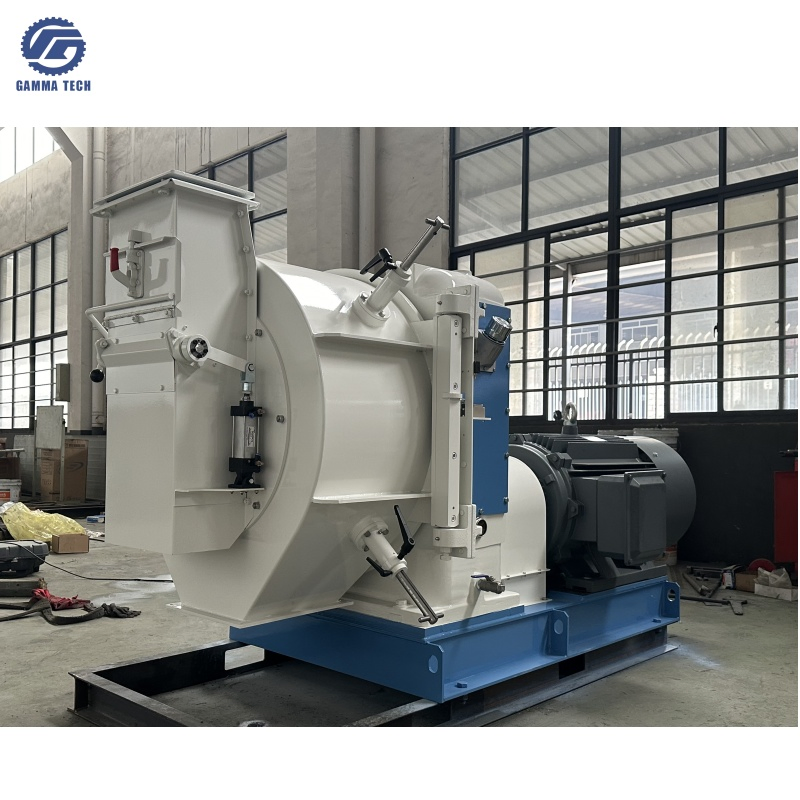

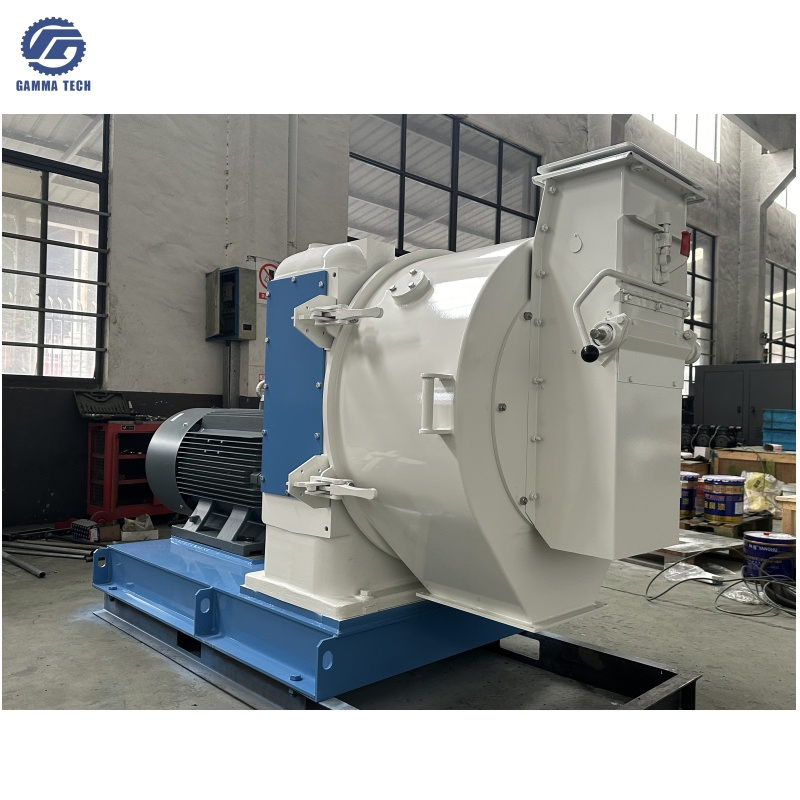

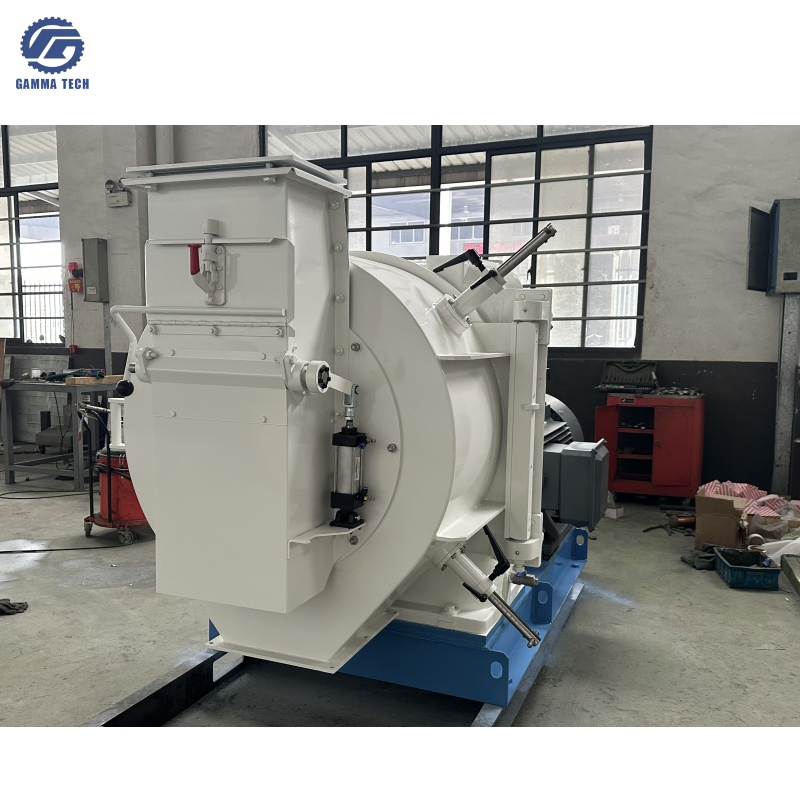

Animal Feed Processing Machines for Shrimp, Crab, Pet Dog Food, and Floating/Sinking Fish Pellet Feed. This production line is designed for the feed industry to produce high-quality pellet or powder feed for aquaculture, livestock, and poultry.
Core Features
Main driving adopts high-precision gear drive, improving output by about 20% compared to belt drive.

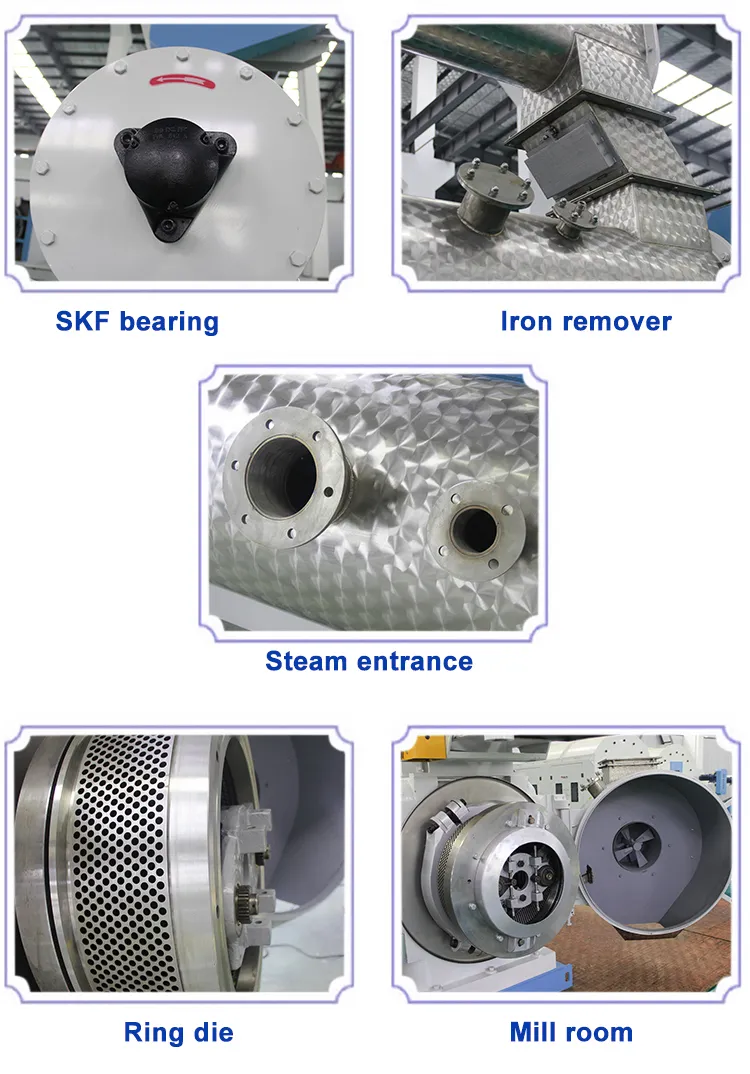

Equipped with imported high-quality bearings and oil seals for stable, low-noise operation.
Granulating room features an air suction temperature reducing system.
Variable-frequency and variable-speed motor feeder ensures high-quality discharged particles.

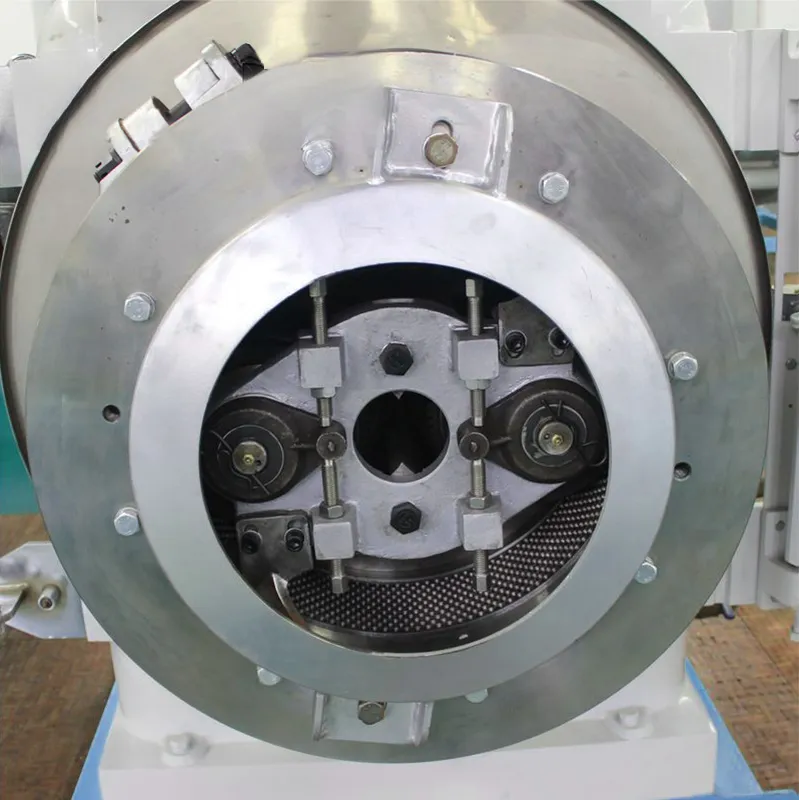

High-quality craft ring dies with multiple bore diameter options for long service life.
Advanced compensation type snakelike spring coupling for safety and low fault rates.
📊
Technical Parameters
| Model |
SZLH320 |
SZLH350 |
SZLH400 |
SZLH420 |
SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring Die Diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Rotational Speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
❓
Frequently Asked Questions
Q1: What kinds of feed can this machine produce?
A: It can produce pellet or powder feed for aqua (fish, shrimp, crab), livestock, and poultry.
Q2: How does the gear drive benefit production?
A: The high-precision gear drive improves output by approximately 20% compared to traditional belt-driven machines.
Q3: Is the pellet size adjustable?
A: Yes, ring dies with multiple bore diameters are optional to produce different particle sizes according to your needs.
Q4: What is the warranty period for the machine?
A: We provide a 12-month warranty from the delivery date.
Q5: Do you provide installation support?
A: Yes, our professional services include free training, guidance for installation, and debugging support.
Q6: What is the capacity of these models?
A: Depending on the model, capacity ranges from 1.5T/H to as high as 20T/H.
