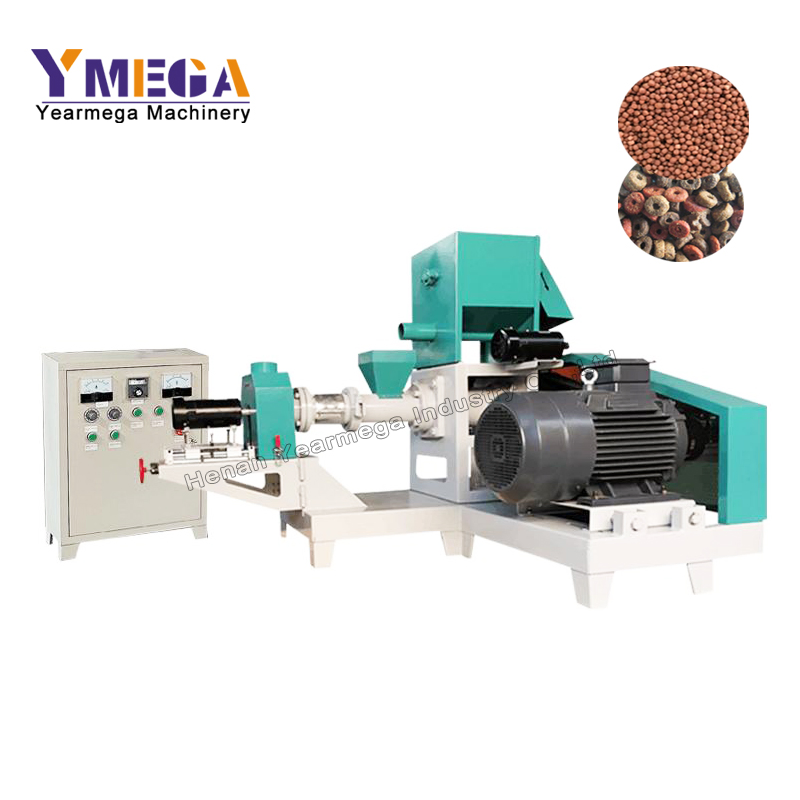

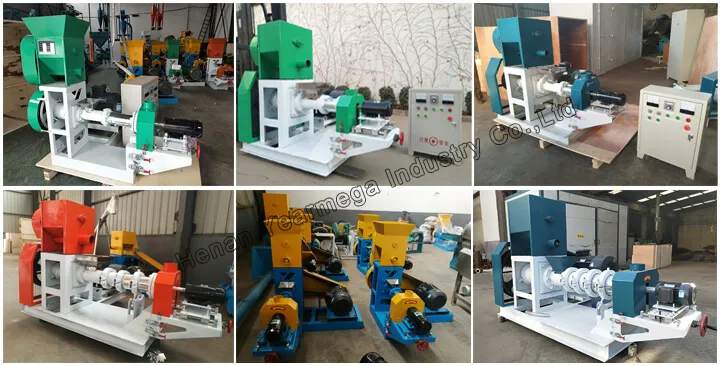

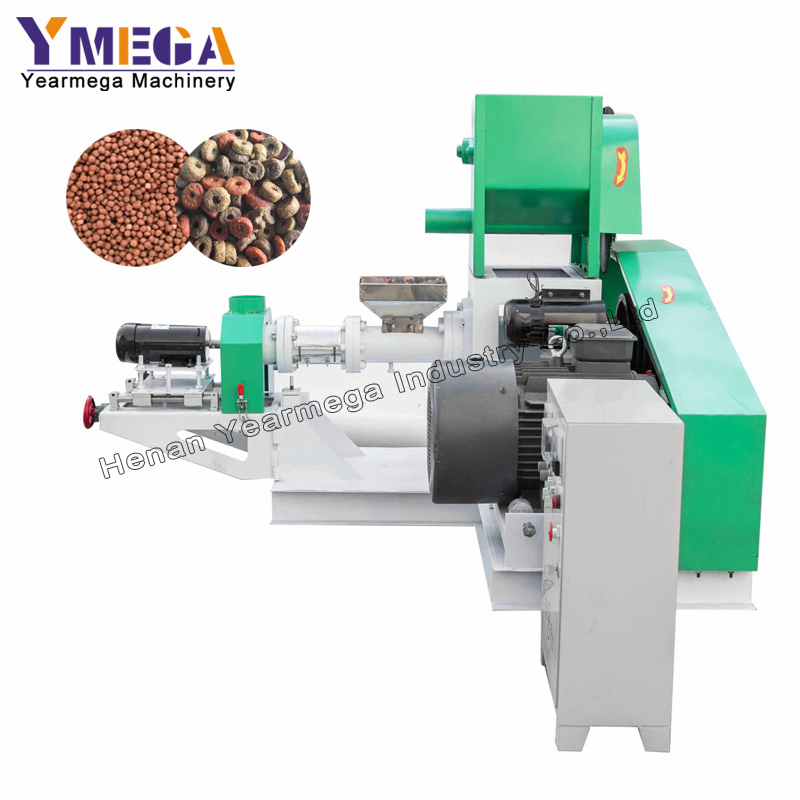

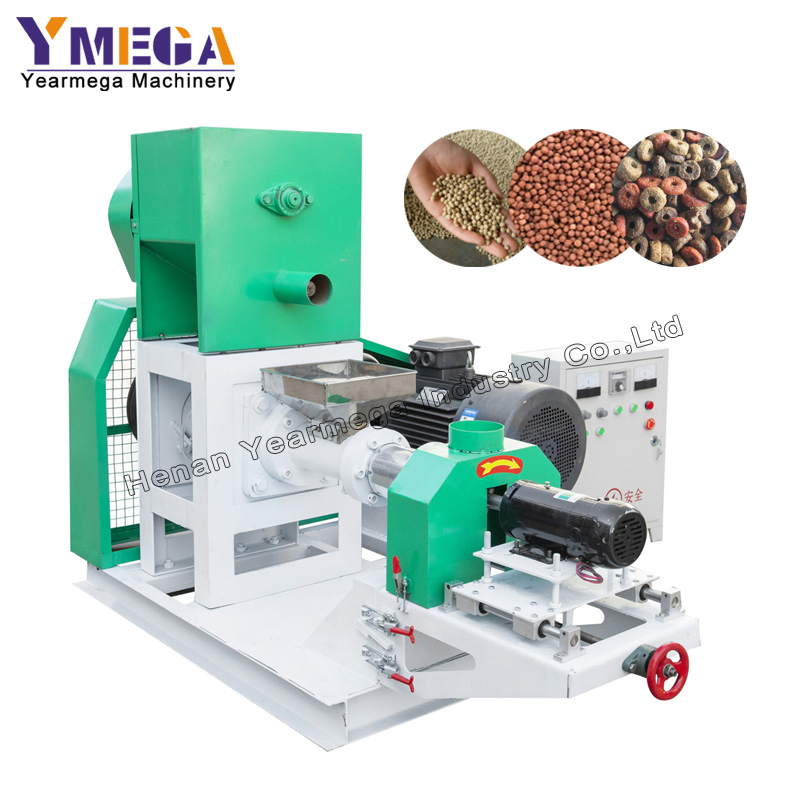

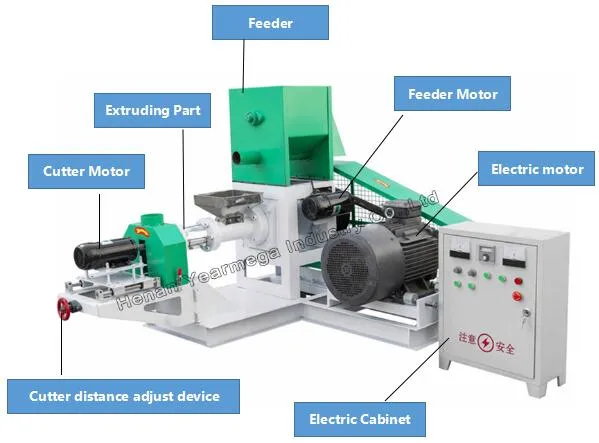

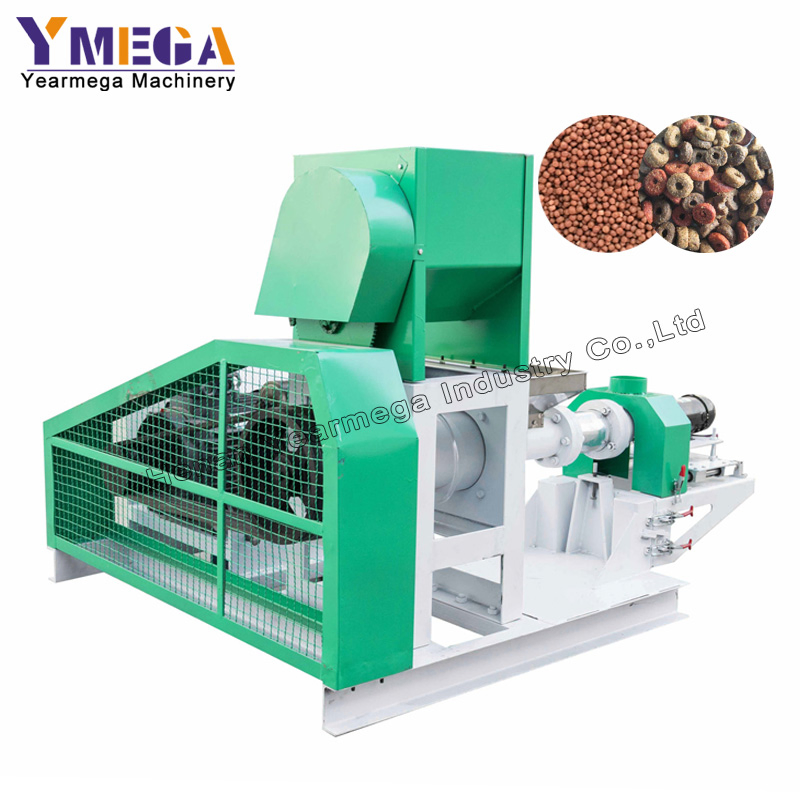

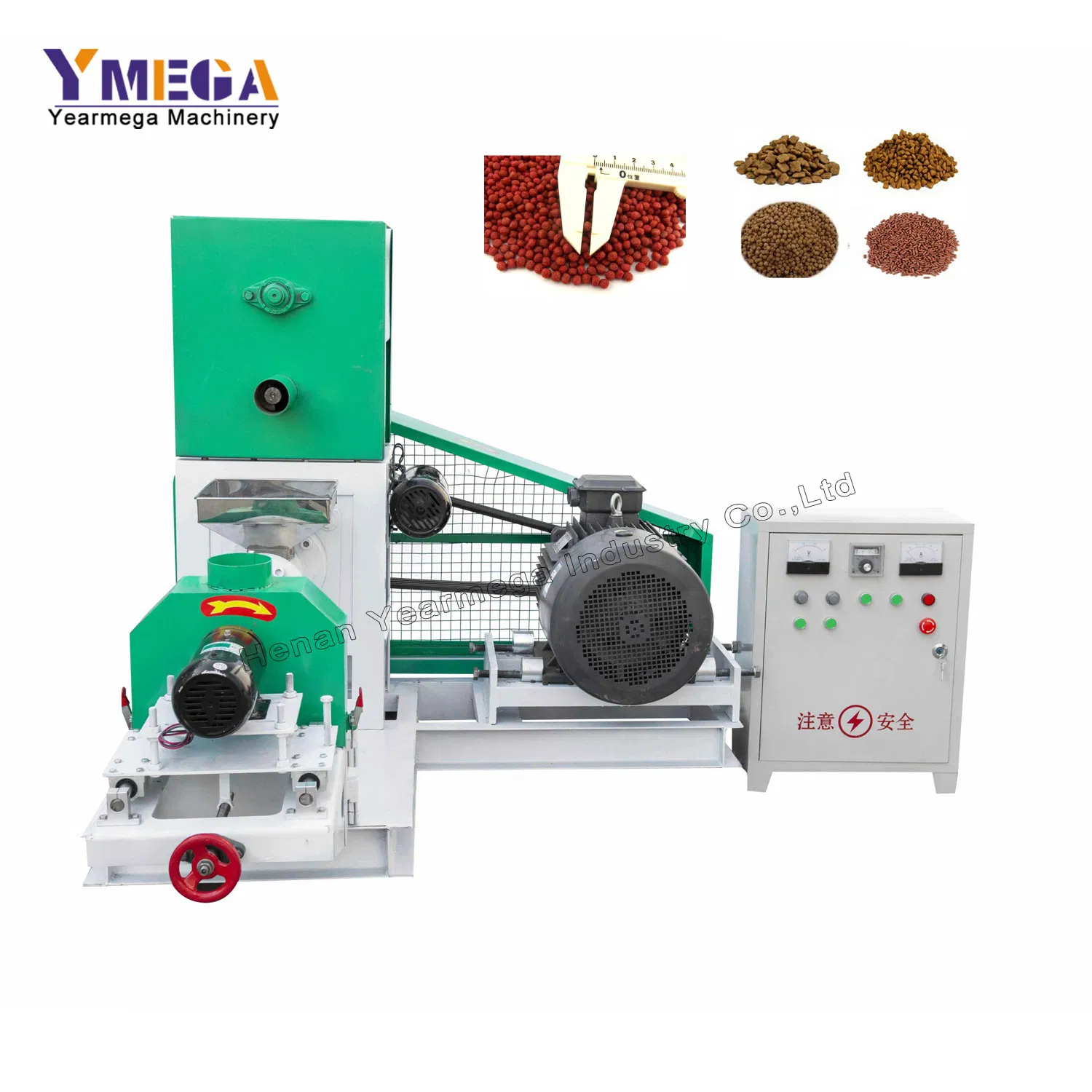

Multi-Functional Aquafeed Extruder Machine is designed for processing various grains into high-grade aquatic feed pellets for fish, crab, catfish, shrimps, and more. It is an ideal solution for small to medium aquatic farms or feed processing factories.
| Model | Capacity | Main Power | Feeding Power | Screw Diameter | Cutting Power |
|---|---|---|---|---|---|
| DGP50 | 60-80kg/h | 11kw | 0.4kw | φ50mm | 0.4kw |
| DGP60 | 100-150kg/h | 15kw | 0.4kw | φ60mm | 0.4kw |
| DGP70 | 180-200kg/h | 18.5kw | 0.4kw | φ70mm | 0.4kw |
| DGP80 | 300kg/h | 22kw | 0.4kw | φ80mm | 0.6kw |
| DGP90 | 400kg/h | 37kw | 0.4kw | φ90mm | 1.5kw |
| DGP120 | 0.5-0.7t/h | 55kw | 0.4kw | φ120mm | 2.2kw |
| DGP135 | 0.8-1.0t/h | 75kw | 0.4kw | φ133mm | 2.2kw |
| DGP160 | 1.2-1.5t/h | 90kw | 0.75-1.1kw | φ155mm | 3.0kw |
| DGP200 | 1.8-2.0t/h | 132kw | 1.5kw | φ195mm | 3.0-4.0kw |

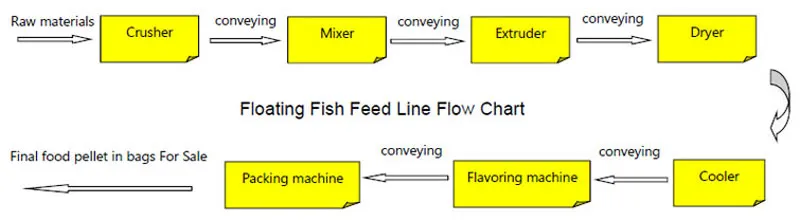

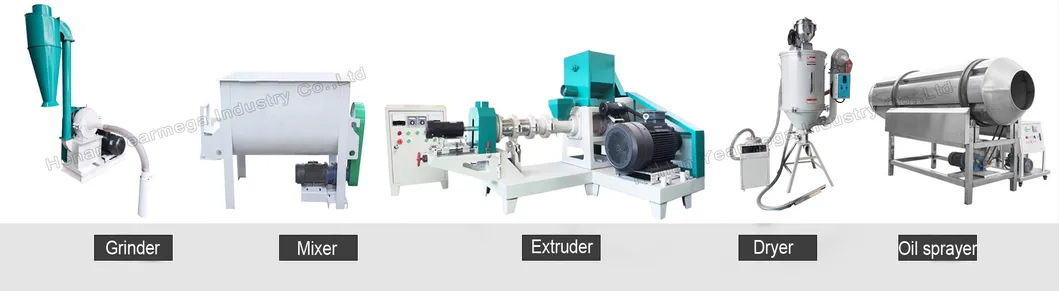

| Process | Machine | Description |
|---|---|---|

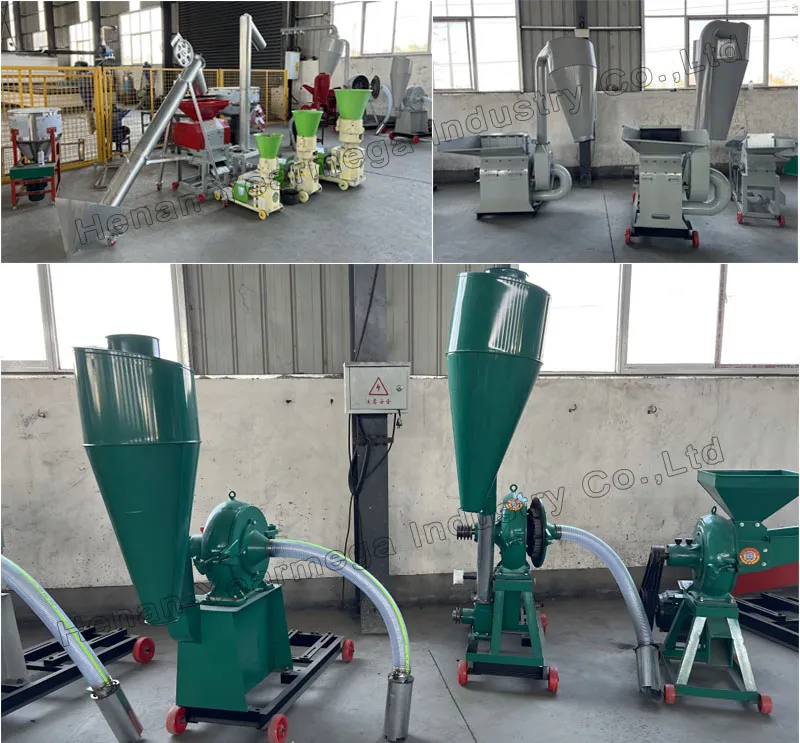

| 1. Crushing | Hammer Mill | Crush raw materials (grains) into fine powder. |
| 2. Mixing | Mixer | Blend different materials evenly. |
| 3. Extruding | Feed Extruder | High temp/pressure pelletizing (Floating & Sinking). |
| 4. Drying | Dryer | Remove moisture from pellets for storage. |
| 5. Cooling | Counterflow Cooler | Cool pellets to room temperature. |
| 6. Flavoring | Rotary Coater | Spray oil or additives for better taste. |
| 7. Packaging | Auto-Packer | Pack pellets into bags for transport and sale. |

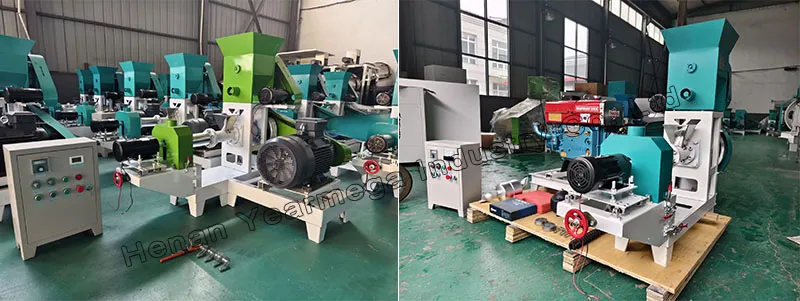

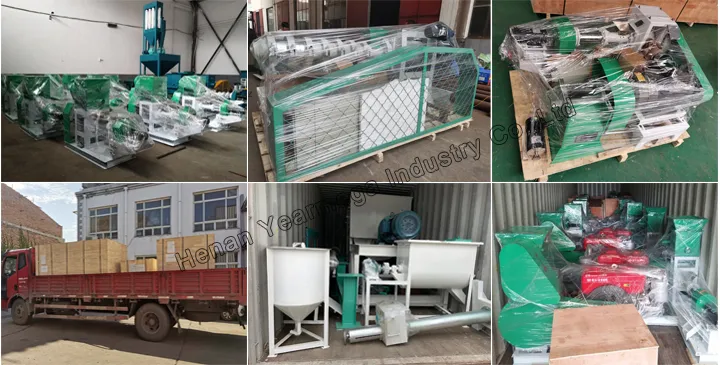

All machines are packed in standard export wooden cases or bulked according to machine size. We ensure high-capacity production and track shipping until delivery.
