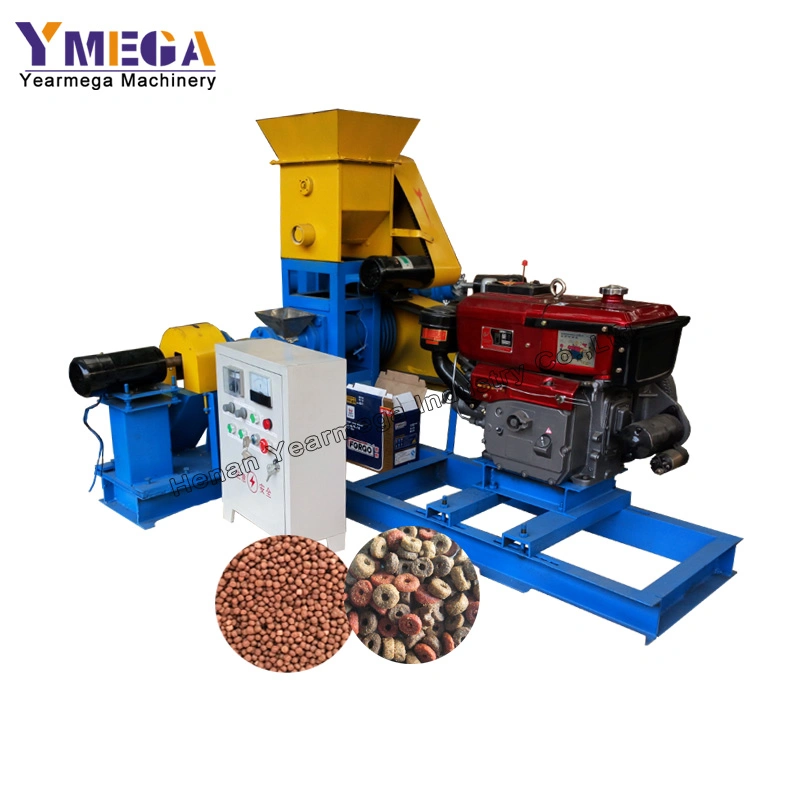

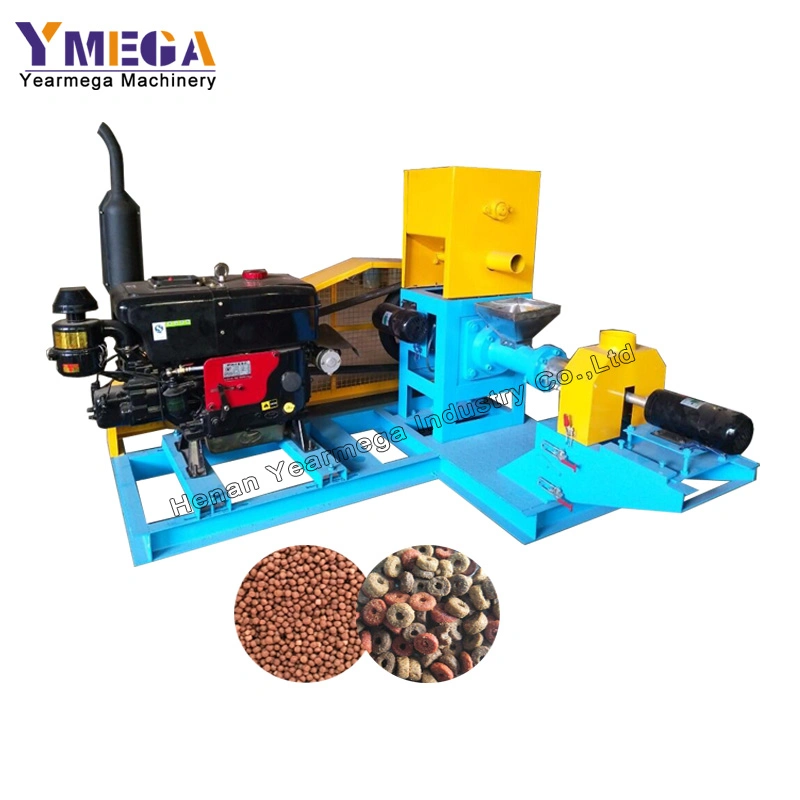

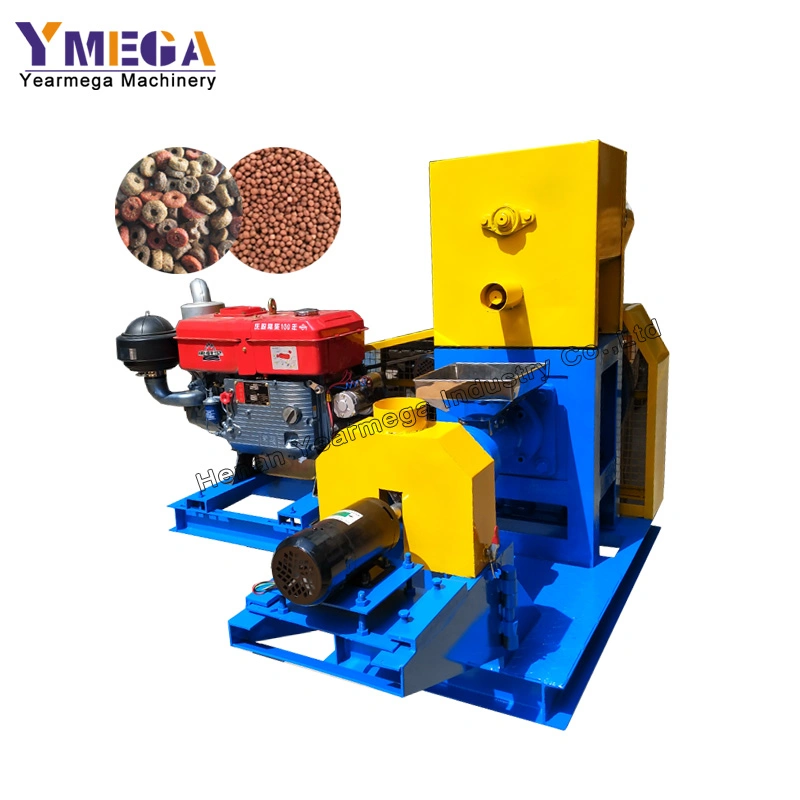

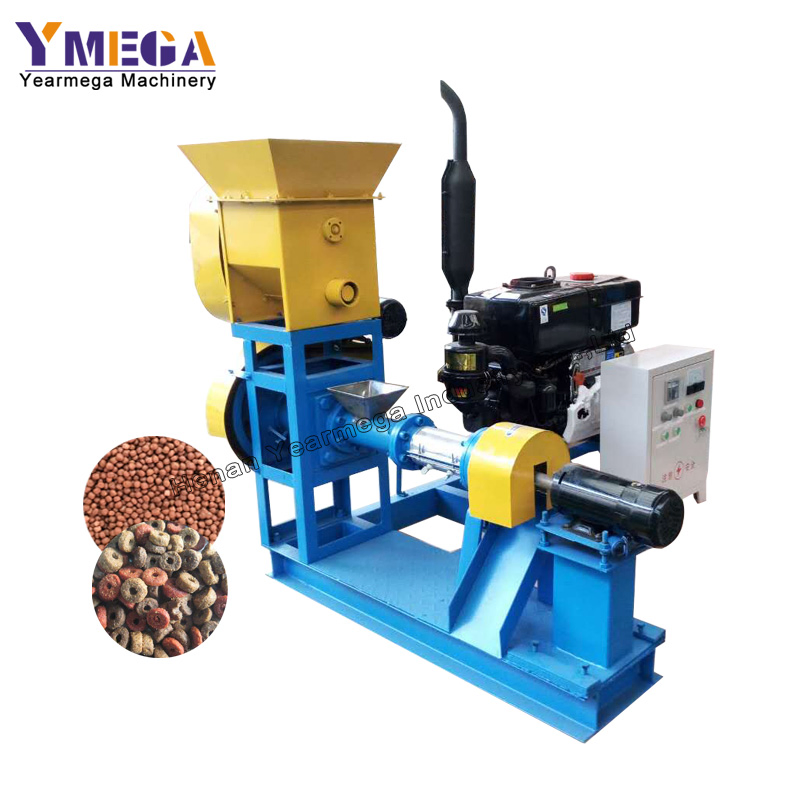

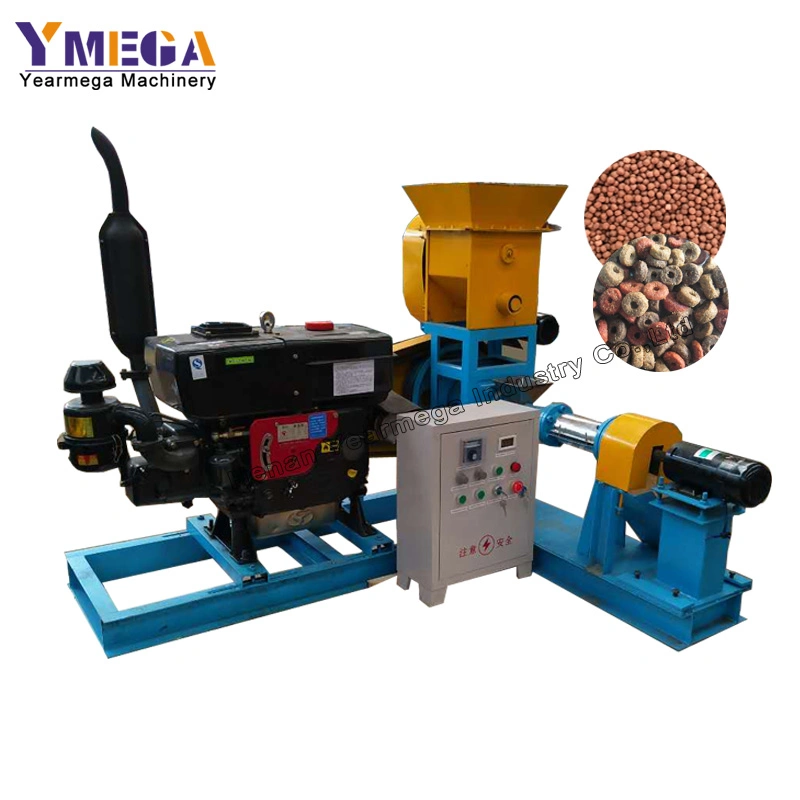

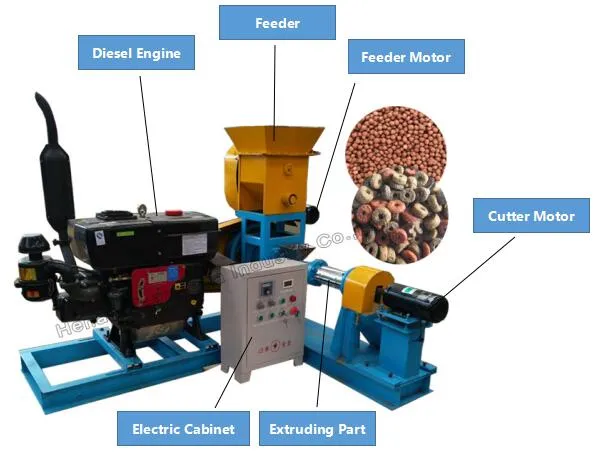

Floating fish feed pellet machine, also known as fish feed extruding machine, is used to process various kinds of grains into high-grade aquatic feed pellets for fish, crab, catfish, shrimps, etc. This diesel engine type is specifically suitable for use on fish farms or feed mills where 3-phase electricity is unavailable.
| Model | Engine | Feeding Power | Voltage | Capacity(kg/h) | Pellet Size |
|---|---|---|---|---|---|
| DGP40D | 12HP | 0.4 | 220V50HZ | 30-40 | 1-8mm |
| DGP50D | 17HP | 0.4 | 220V50HZ | 50-80 | 1-8mm |
| DGP60D | 22HP | 0.4 | 220V50HZ | 100-150 | 1-8mm |
| DGP70D | 28HP | 0.4 | 220V50HZ | 180-200 | 1-8mm |
| DGP80D | 32HP | 0.6 | 220V50HZ | 250-300 | 1-10mm |
| DGP90D | 50HP | 0.6 | 220V50HZ | 300-400 | 1-10mm |

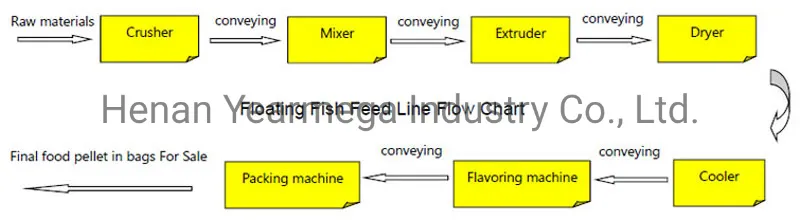

| No. | Process | Main Machine | Description |
|---|---|---|---|
| 1 | Crushing | Hammer Mill | To crush raw materials into flour/powder. |
| 2 | Mixing | Mixer | To blend different materials evenly. |
| 3 | Extruding | Fish Feed Extruder | High temp/pressure pelletizing for floating/sinking feed. |
| 4 | Drying | Dryer | To reduce moisture in finished pellets. |
| 5 | Cooling | Counterflow Cooler | Ensures pellets are suitable for long-term storage. |
| 6 | Flavoring | Rotary Machine | Spray oil or additives for better palatability. |
| 7 | Packaging | Auto Packing Machine | Bagging for storage and transport. |
