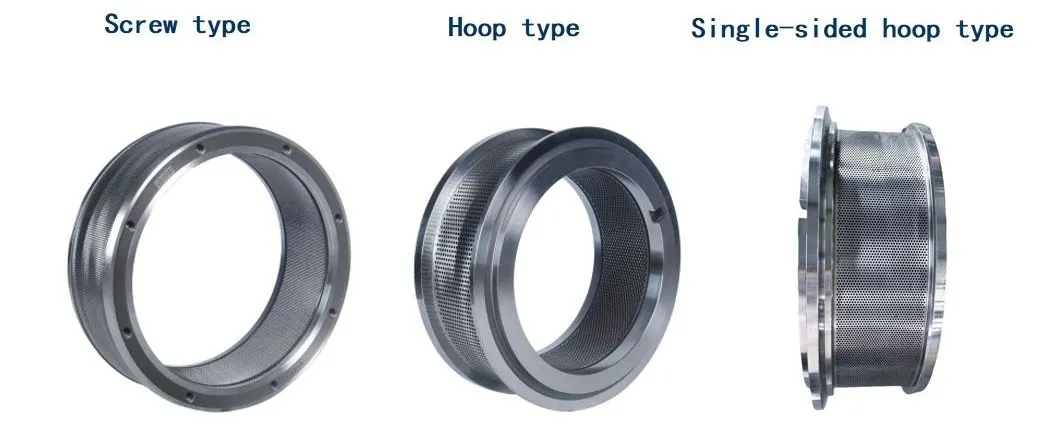

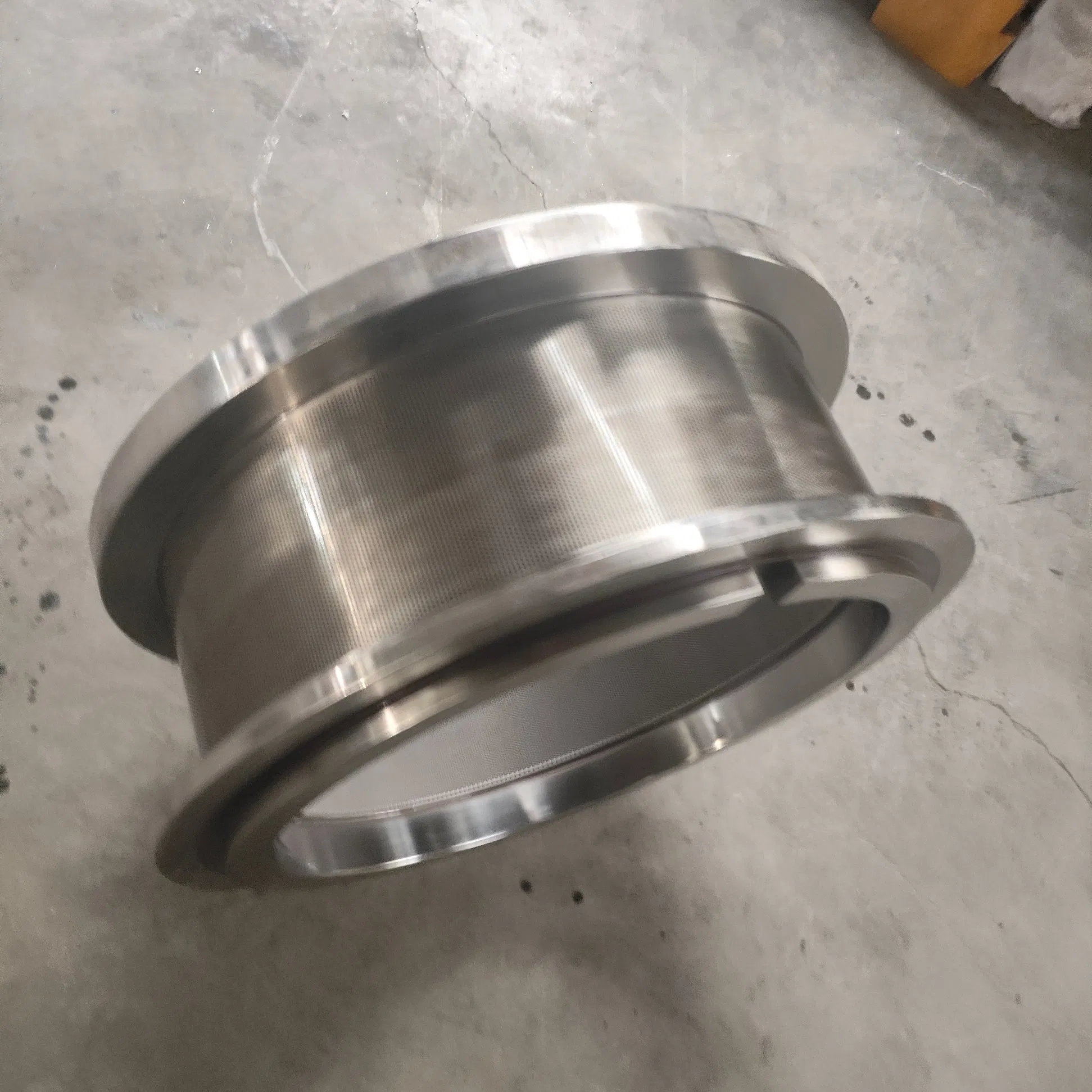

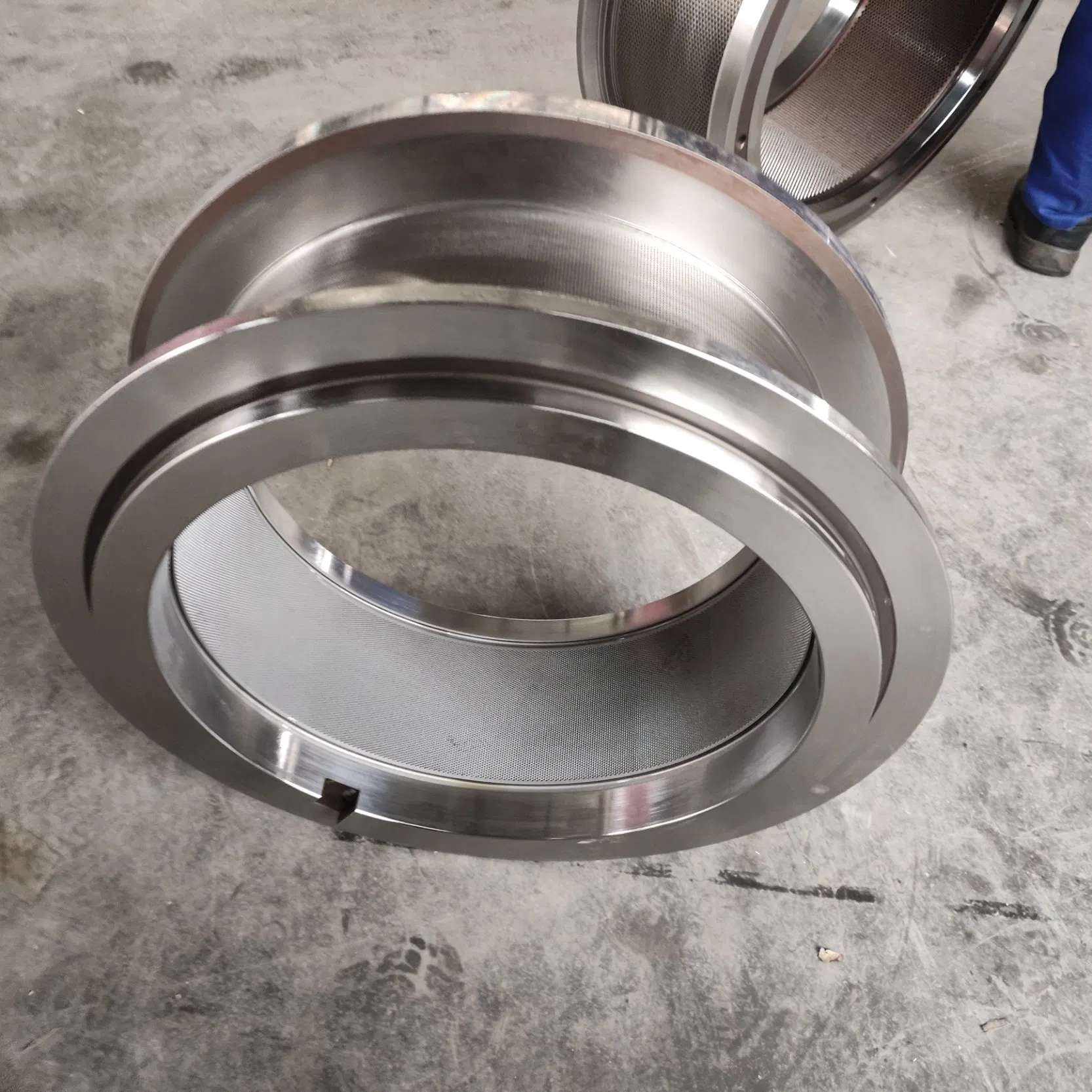

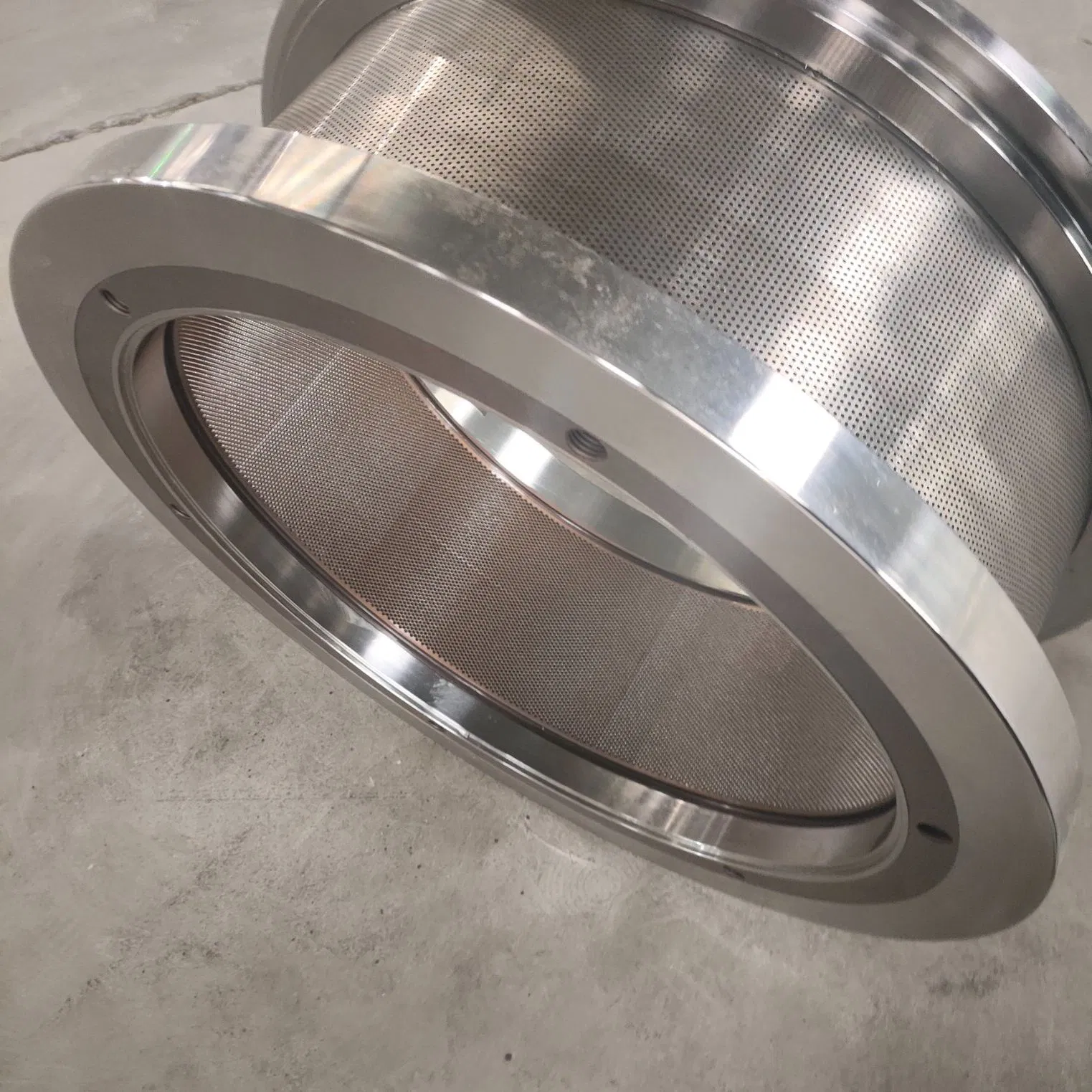

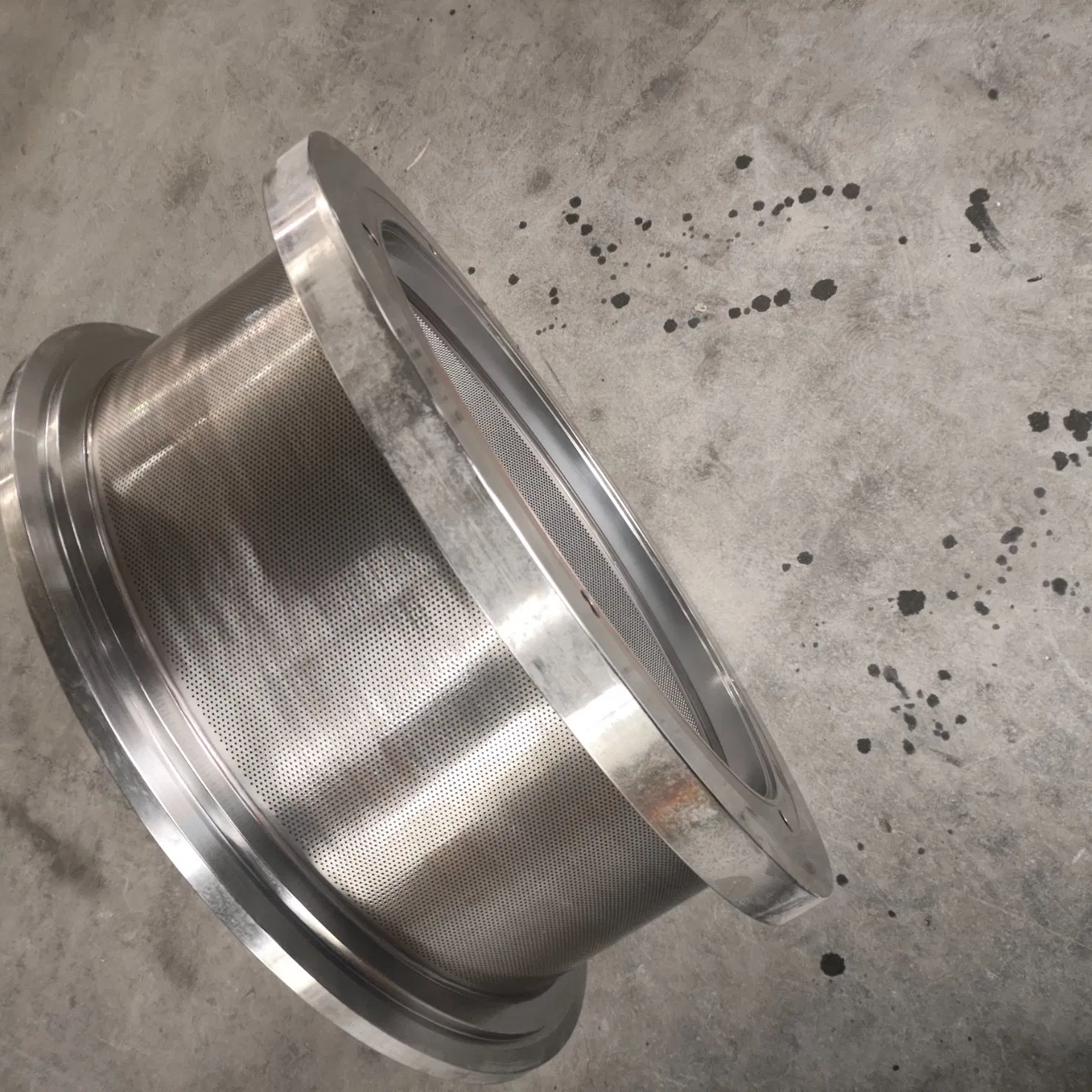

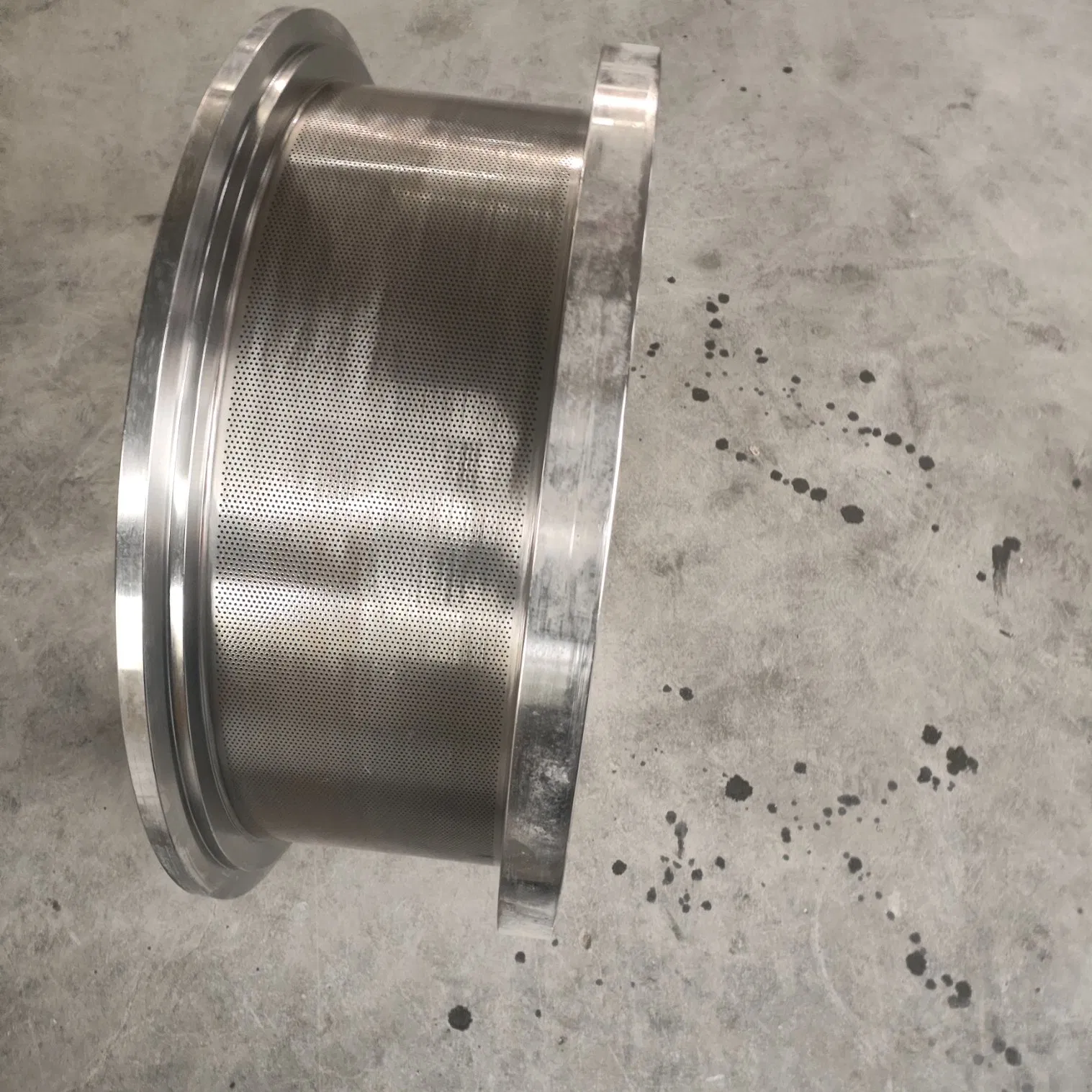

Huge ring fittings with porous surfaces are known as "ring die." Ring molds must be assembled with extreme dimensional accuracy due to their thin walls and dense holes. It is one of the most crucial and easily worn pellet mill accessories. To ensure resistance to wear and corrosion, high carbon, high chromium steel (4Cr13) and alloy steel are primarily used. Vacuum quenching or high-temperature carbonizing ensures hardness, while optimized die hole configuration improves productivity.

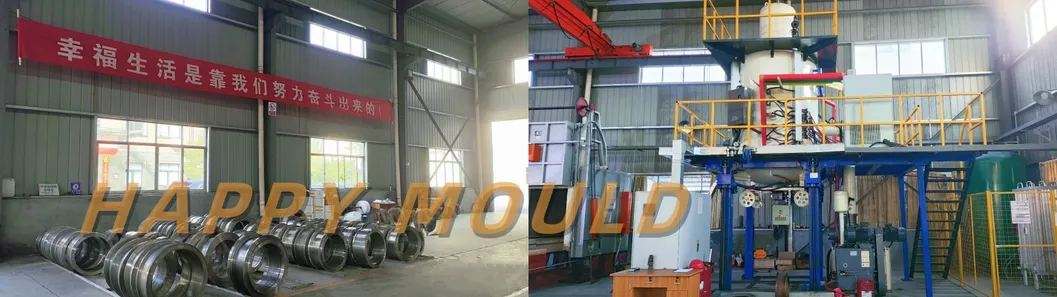

Our materials are made using high-quality steel that undergoes a forging process to obtain desired properties. Through forging techniques, the raw material undergoes controlled heating and shaping, resulting in enhanced strength, durability, and structural integrity. We prioritize raw materials from reliable suppliers to ensure exceptional performance.
We can custom ring dies for all major brands of granulators, applying for ANDRITZ, CPM, FAMSUN, Buhler, Zhengchang, IDAH, etc. We design various ring dies according to drawings and customize them according to specific requirements.
| Applicable Models | Hole Diameter (mm) | Working Width (mm) | Designed Output |
|---|---|---|---|
| IDAH 530F | 0.8 | 193 | 1.0t-1.5t/h |
| FAMSUN 600 | 0.8 | 170 | 0.8-1.2t/h |
| ANDRITZ 520 | 0.8 | 178 | 0.8-1.2t/h |
| IDAH 530F | 1.0 | 193 | 2.5t-3.9t/h |
| FAMSUN 600 | 1.0 | 170 | 2.2t-3.5t/h |
| ANDRITZ 520 | 1.0 | 178 | 2.2t-3.5t/h |
| Feed Varieties | Hole Diameter | Compression Ratio |
|---|---|---|
| Poultry & Livestock feed | Φ2.0-Φ4.5 | 1:9-1:20 |
| Shrimp Feed | Φ0.8-Φ2.0 | 1:20-1:35 |
| Fish feed | Φ1.5-Φ5.0 | 1:10-1:25 |
| Biomass and Fertilizer | Φ5.0-Φ18.0 | 1:4-1:10 |
| Feline feed | Φ1.6-Φ3.5 | -- |

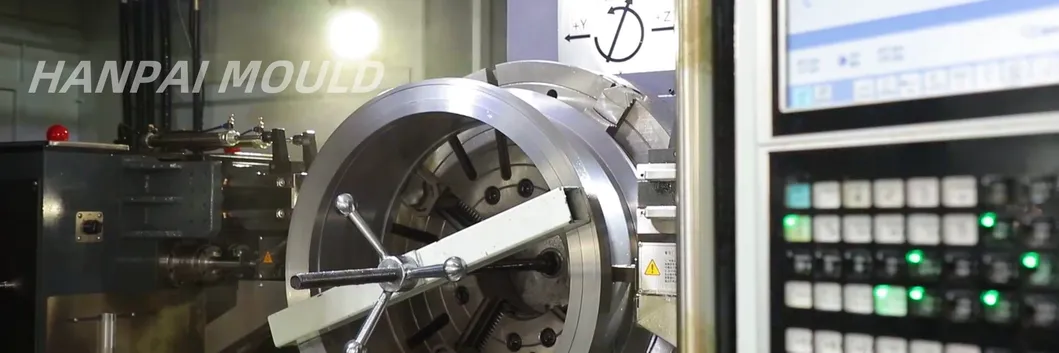

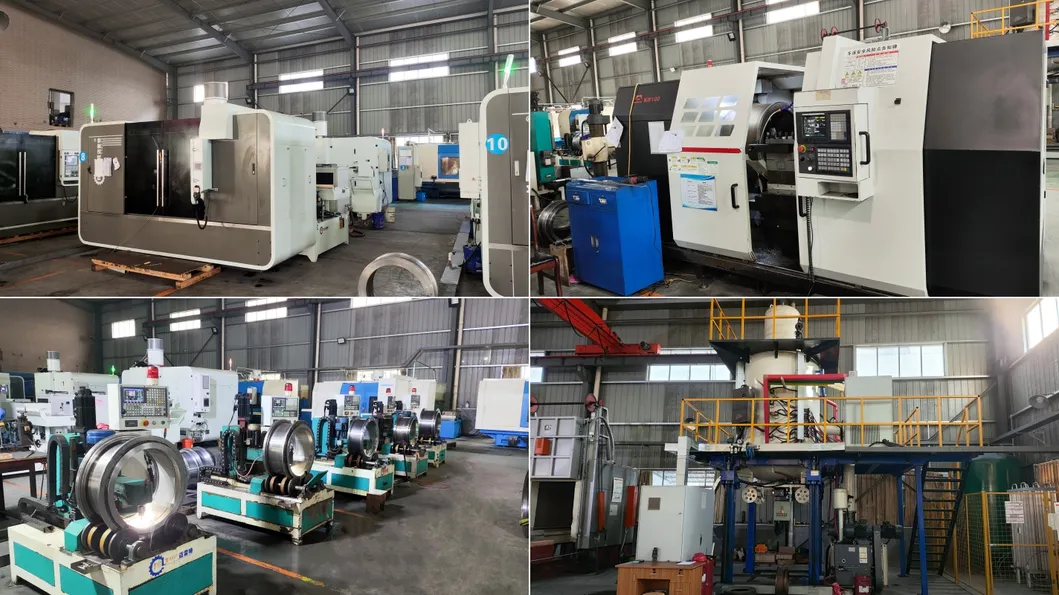

Utilizing CNC deep hole drilling machines, vacuum quenching furnaces, and advanced equipment to solve production efficiency and particle quality issues. Effectively improves yield and reduces production costs for small aperture fish feed dies.
