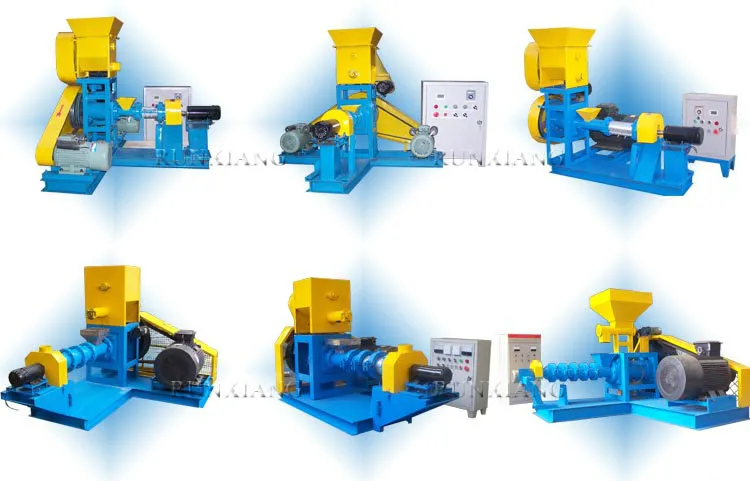

Product Description
Operation Flow Chart
1. Start Machine ➔
2. Add Water & Start Cutter ➔
3. Add Wet Material & Start Feeder ➔
4. Adjust Cutter Speed
Key Features & Advantages
- Developed with years of experience in food machinery for improved market performance.
- Produces both floating and sinking fish feed pellets with specialized formulations.
- Ensures feed hardness, water resistance, and stability.
- Sterilizes food to make pellets nutrient-rich and easy to absorb.
- Adjustable pellet shapes and voltage requirements.
Raw Material Requirements
- Types: Corn, wheat, soybean, grain, bone powder, etc.
- Fineness: Must be ground into 60-80 Mesh.
- Moisture Content: Should be between 20-30%.
Versatile Applications

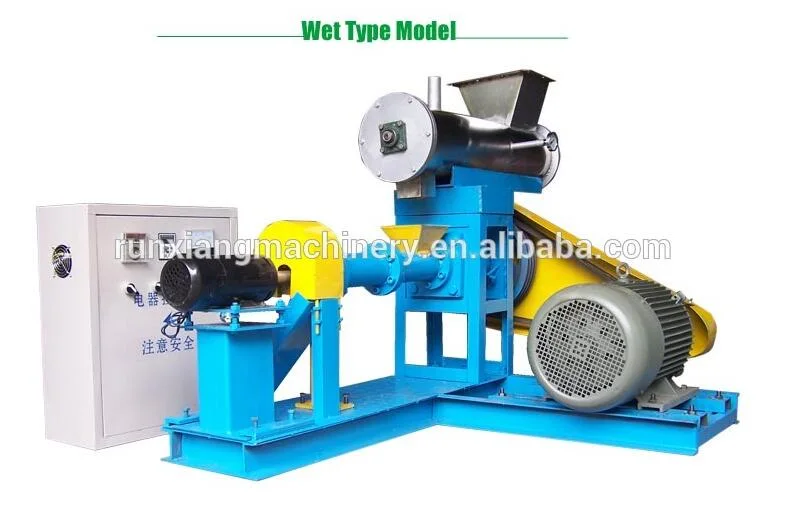

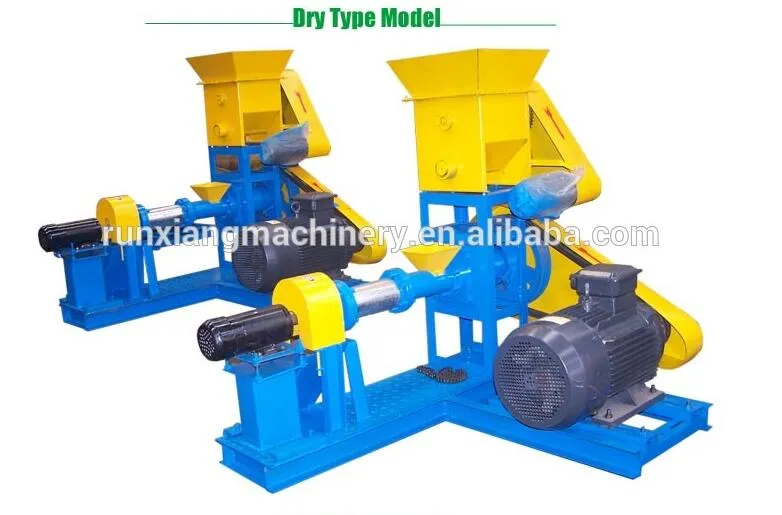

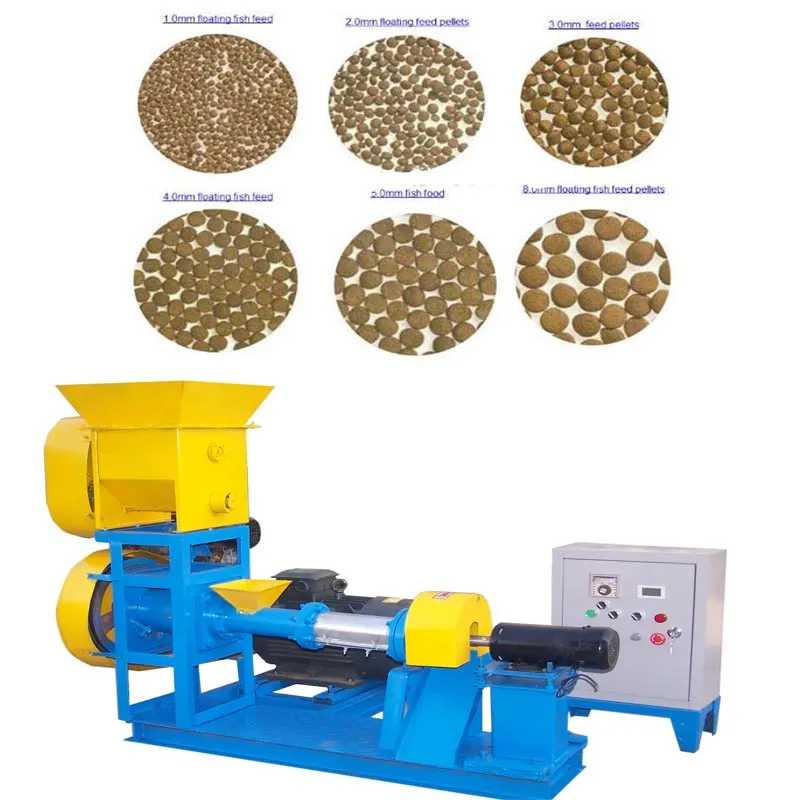

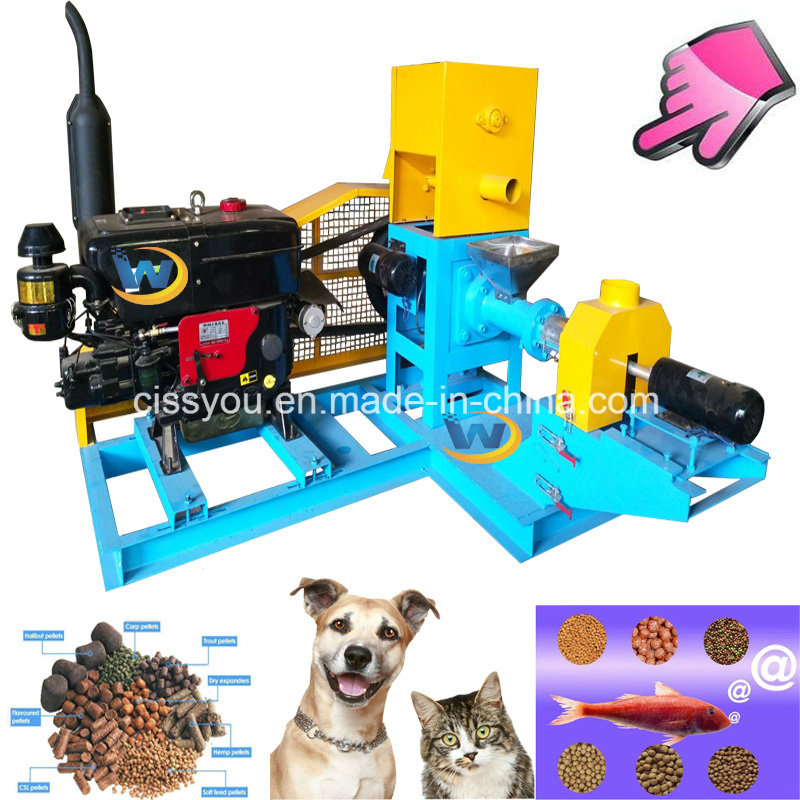

With different moulds, the machine produces various diameters (1.5mm, 2.5mm, etc.) for different fish stages. It is suitable for poultry-fodder, pet-fodder, and aquatic feed (catfish, shrimps, dog, etc.). Available in both Dry and Wet types to suit production scales.
| Model |
WSJY-52 |
WSJY-65 |
WSJY-80 |
WSJY-95 |
WSJY-105 |
WSJY-120 |
| Capacity (kg/h) |
80-100 |
120-180 |
200-250 |
300-400 |
400-500 |
500-600 |
| Diameter (mm) |
1-6mm |
1-10mm |
1-10mm |
1-10mm |
1-10mm |
1-12mm |
| Motor (kw) |
7.5 |
11 |
15 |
22 |
30 |
37 |
| Cutting (w) |
750 |
750 |
750 |
750 |
750 |
750 |
| Cooking Degree |
>95% |
>95% |
>95% |
>95% |
>95% |
>95% |

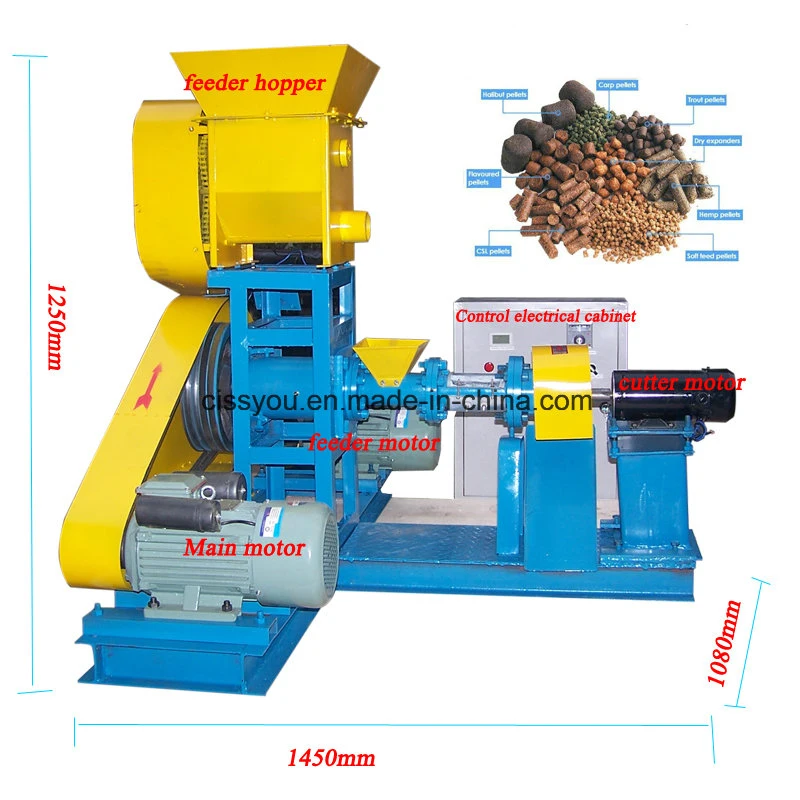

Production Line Components
1. Crusher: For 60-80 mesh powder.
2. Mixer: For 20%-25% moisture blending.
3. Extruder: For floating/sinking pellets.
4. Dryer: Removes extra moisture.
5. Cooler: Reduces pellet temperature.
6. Packing: Final product packaging.
Frequently Asked Questions
Q1: What raw materials are suitable for this machine?
Common materials include corn, wheat, soybean, grains, and bone powder. These should be ground to a fineness of 60-80 mesh before processing.
Q2: Can I produce different sizes of fish feed?
Yes, by changing the moulds, the machine can produce pellet diameters ranging from 1mm up to 12mm, suitable for various growth stages of fish.
Q3: Is the machine capable of producing floating feed?
Absolutely. This extruder is designed to produce both floating and sinking aquatic feed. The floating pellets can remain on the water surface for a long time.
Q4: What is the required moisture level for the materials?
The ideal moisture content for raw materials during the extrusion process should be between 20% and 30%.
Q5: Who is this equipment suitable for?
It is ideal for professional farmers, small to medium-sized feed mills, research institutes, aqua farms, and commercial feed production factories.
